Description
Wi‑Fi 6 Connectivity Built for Hazardous Environments

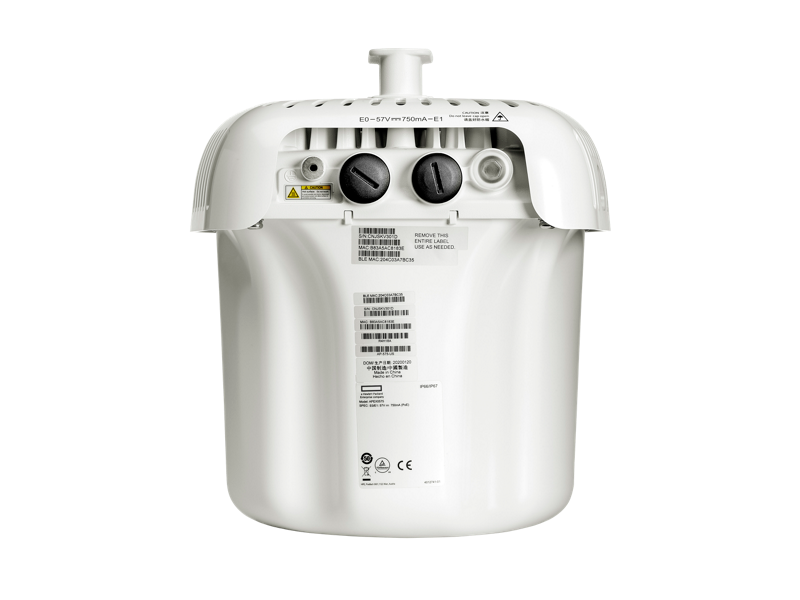

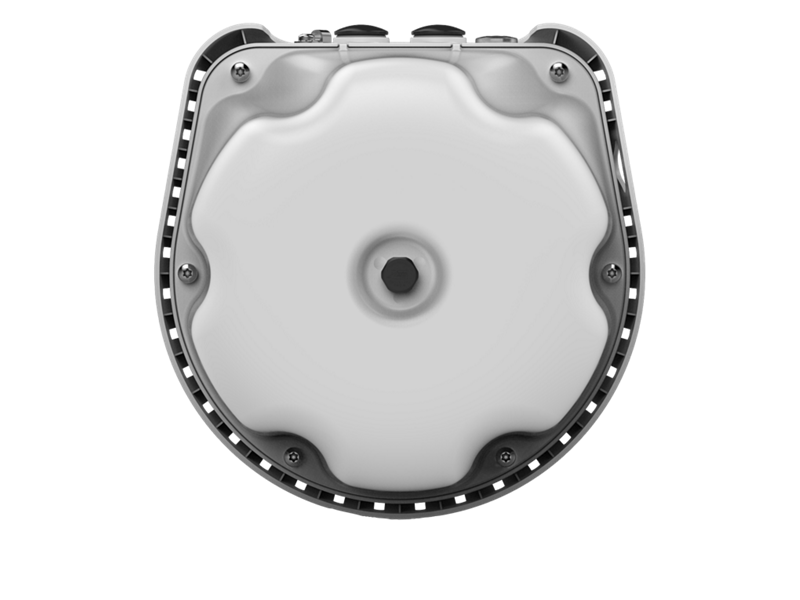

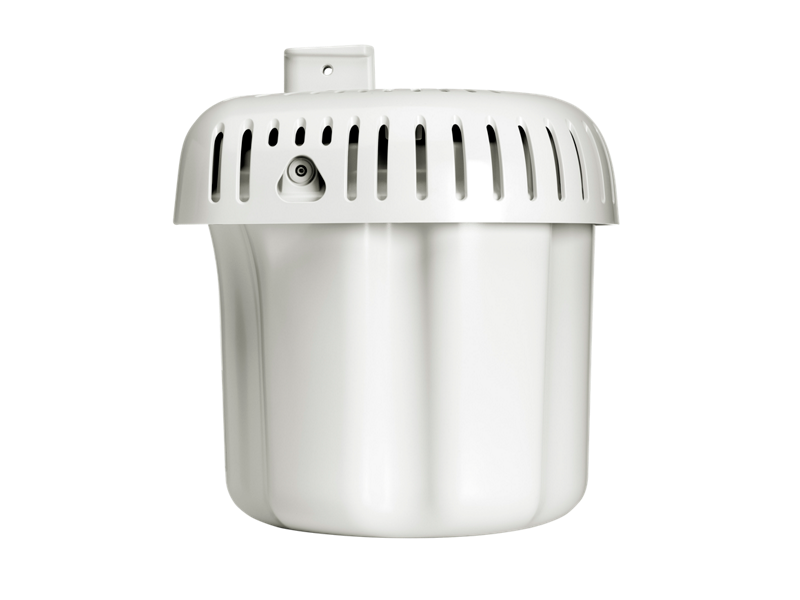

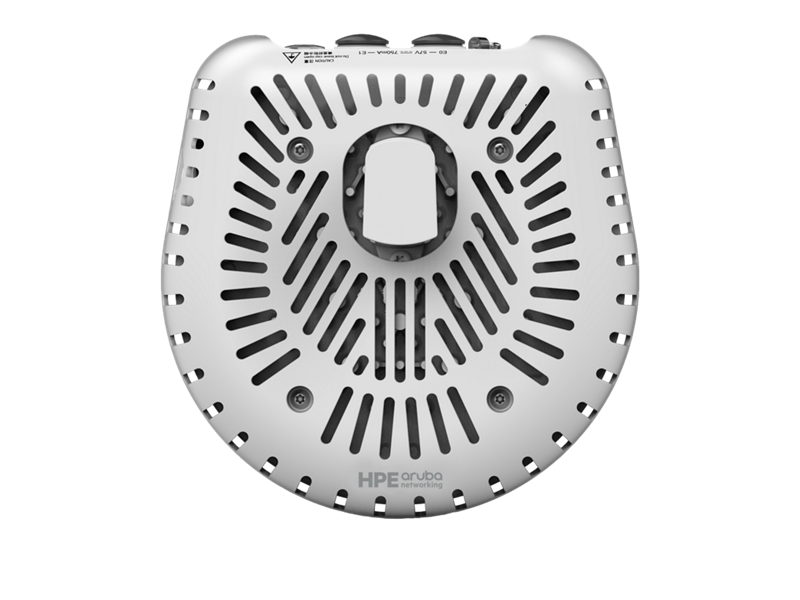

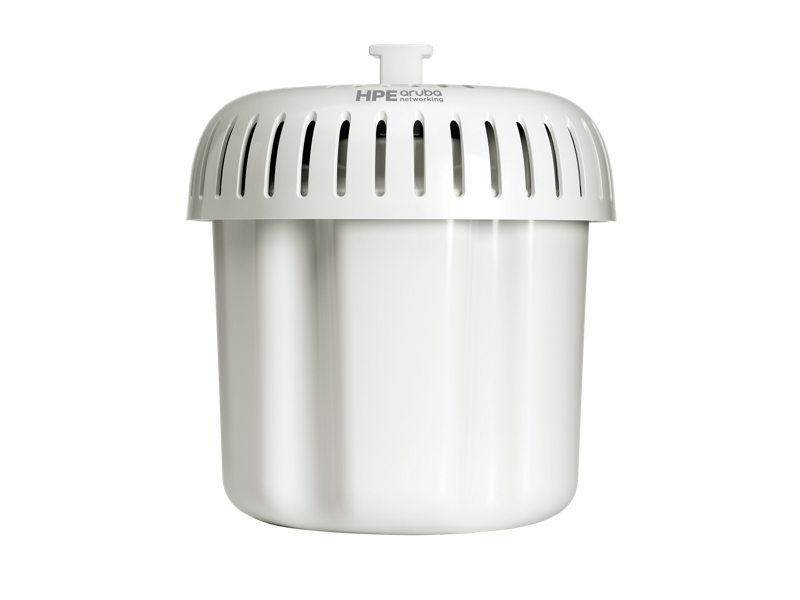

The HPE Aruba Networking AP‑575EX (R4W30A) is a rugged, high-performance outdoor access point engineered for hazardous environments requiring Class 1 Division 2 and ATEX Zone 2 certification. Ideal for oil fields, mining facilities, and industrial manufacturing, this dual-radio AP delivers robust Wi‑Fi 6 connectivity with a peak aggregate data rate of 2.69 Gbps.
With integrated omni-directional antennas (5 GHz at 4.6 dBi, 2.4 GHz at 4.0 dBi), Bluetooth 5, and 802.15.4/Zigbee, the AP‑575EX is IoT-ready. It supports harsh outdoor conditions with operating temperatures from –40°C to +65°C, persistent moisture resistance, and advanced RF optimization via Aruba ClientMatch.
Security is hardened with WPA3, Dynamic Segmentation, Trusted Platform Module (TPM), and full policy enforcement using HPE’s Policy Enforcement Firewall.
Perfect for deployments needing Zero Touch Provisioning and remote orchestration through Aruba Central, this AP offers scalable, secure, and manageable outdoor Wi-Fi built to last.
| Specification | Details |
|---|---|
| Product Number | R4W30A |
| AP Type | Outdoor Hardened, HazLoc-certified Wi‑Fi 6 Dual Radio |
| Radios | 5 GHz 4x4 MIMO, 2.4 GHz 2x2 MIMO |
| Max Data Rate | 2.69 Gbps (aggregate) |
| Antenna Type | Internal omni-directional (5 GHz: 4.6 dBi, 2.4 GHz: 4.0 dBi) |
| IoT Radios | Integrated Bluetooth 5 and 802.15.4 (Zigbee), peak gain 6 dBi |
| Certifications | Class 1 Div 2, ATEX Zone 2, UL2043, CB Scheme, Wi-Fi 6 Certified |
| Operating Temp. | –40°C to +65°C |
| Power Consumption (max) | 32.0W (dual PoE), 26.1W (single PoE) |
| Idle Power Consumption | 14.0W (single), 16.0W (dual) |
| Deep-Sleep Power Consumption | 2.9W (single), 3.9W (dual) |
| Mounting Options | Optional mounting kits available |
| Dimensions (H x W x D) | 27 x 23 x 24 cm (without mount) |
| Weight | 2.4 kg |
| Security Features | WPA3, TPM, Enhanced Open, PEF Firewall, Dynamic Segmentation |
| Management | Aruba Central, Zero Touch Provisioning |
| Warranty | Limited Lifetime Warranty |
