Description

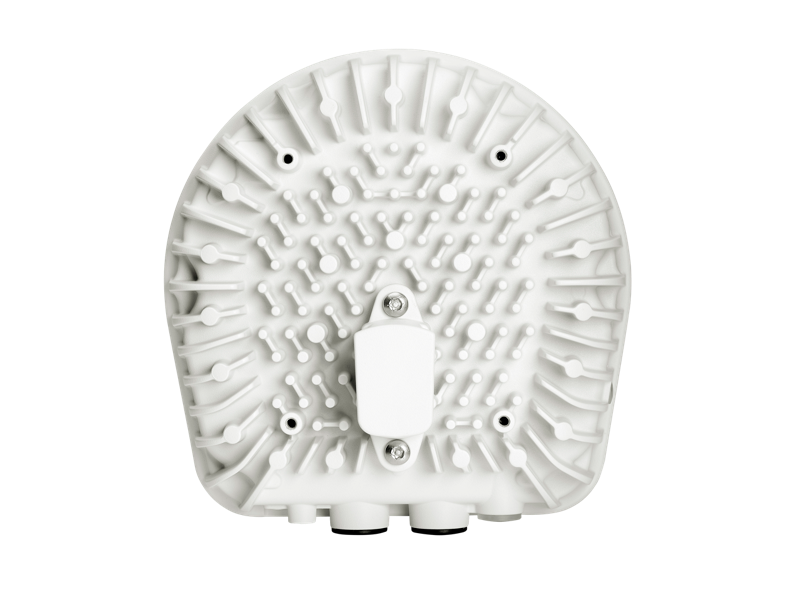

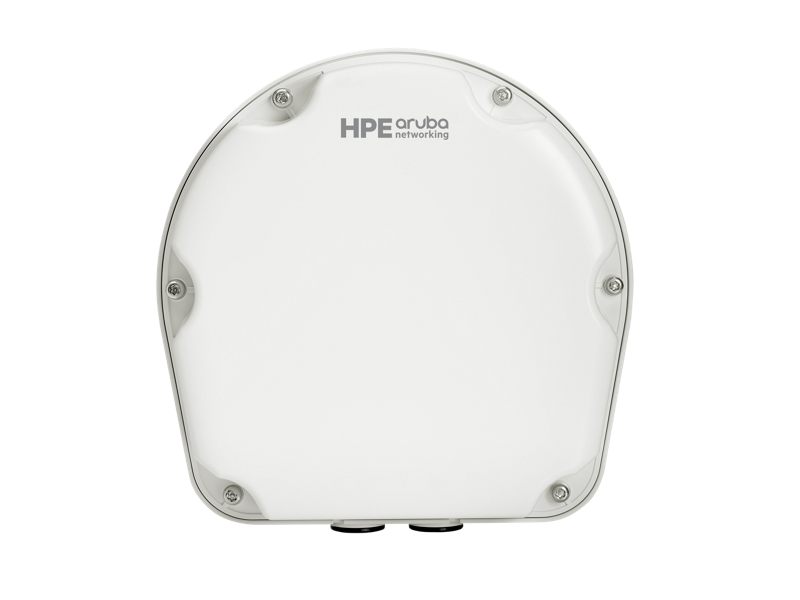

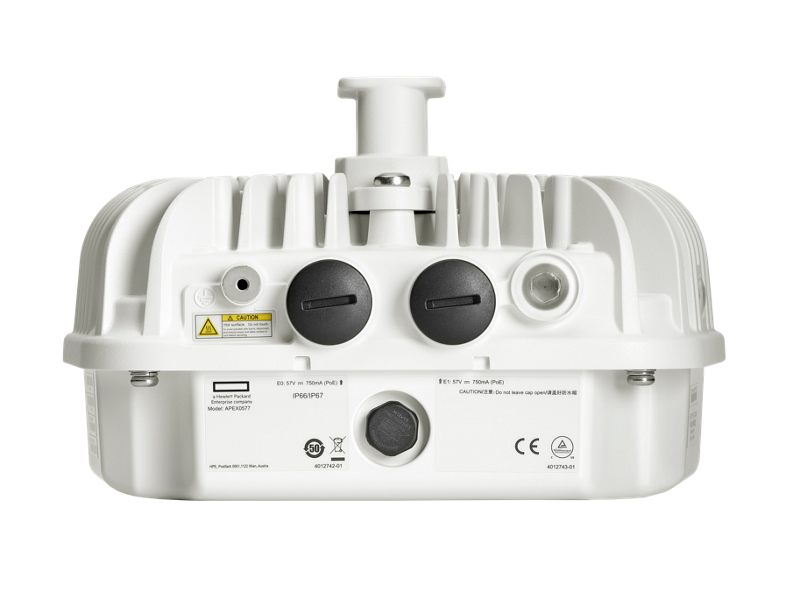

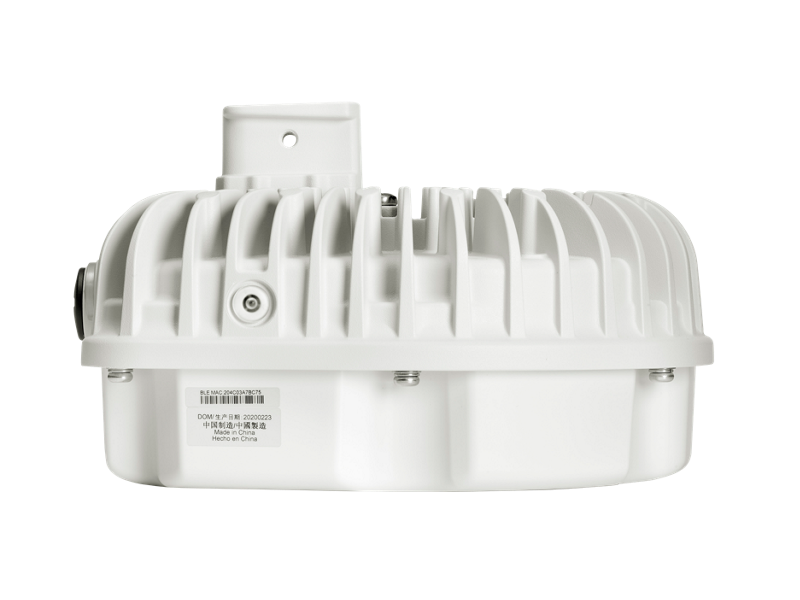

The HPE Aruba Networking AP‑577 (IL) is a ruggedized, high-performance Wi-Fi 6 (802.11ax) access point built for extreme outdoor environments such as stadiums, transportation hubs, and industrial campuses. With dual-radio 2x2/4x4 MIMO support, integrated directional antennas, and maximum aggregate data rates of up to 2.69 Gbps, the AP-577 delivers fast and reliable connectivity even in challenging conditions.
Designed to withstand temperatures from –40°C to +65°C, the AP-577 features full weatherproofing, integrated Bluetooth 5 and Zigbee radios for IoT integration, and supports advanced features like Dynamic Segmentation, WPA3, and Zero Touch Provisioning. The unit simplifies deployment and security management with AI-powered insights and policy-based automation via HPE Aruba Networking Central. Includes a limited lifetime warranty.
| Specification | Details |
|---|---|
| Product Code | R4H20A |
| Deployment | Outdoor, hardened, directional antennas |
| Wi‑Fi Standard | Wi-Fi 6 (802.11ax), backward compatible |
| Radios & MIMO | Dual Radio: 2.4 GHz (2x2), 5 GHz (4x4) |
| Max Data Rate | Up to 2.69 Gbps (aggregate) |
| Antenna Type | Integrated directional: 90°H x 90°V; 2.4 GHz (6.4 dBi), 5 GHz (6.3 dBi) |
| IoT Support | Integrated Bluetooth 5 and 802.15.4 (Zigbee), USB port |
| Power Consumption | Max: 32.0W (dual PoE); 26.1W (single PoE); Idle: 14W (single PoE) |
| Temperature Range | –40°C to +65°C |
| Certifications | Wi‑Fi CERTIFIED 6, UL2043, EN 50155/50121, IEC/EN/UL 62368-1, and more |
| Security | WPA3, Enhanced Open, TPM, Dynamic Segmentation, Policy Enforcement Firewall |
| Management | HPE Aruba Networking Central, Zero Touch Provisioning |
| Mounting Options | Optional kits available |
| Product Dimensions (H x W x D) | 13 x 23 x 22 cm |
| Weight | 2.1 kg |
| Warranty | Limited lifetime |
