Description

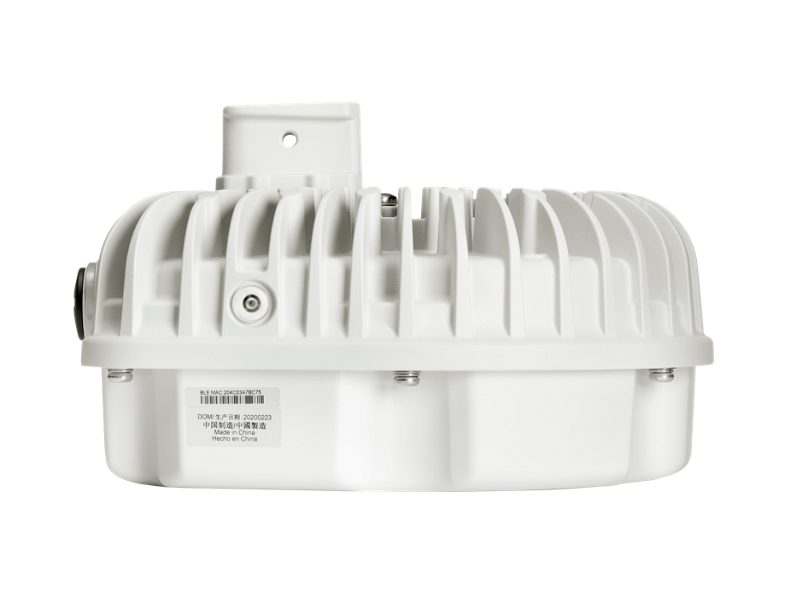

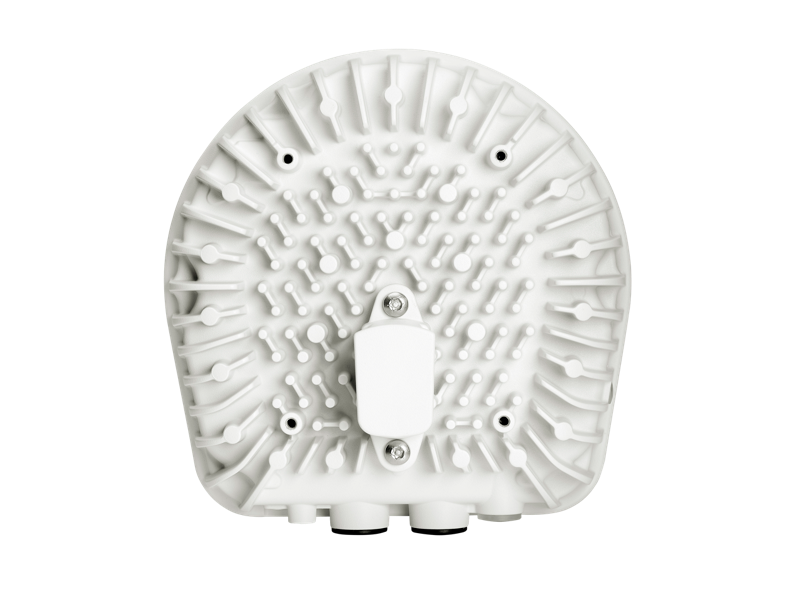

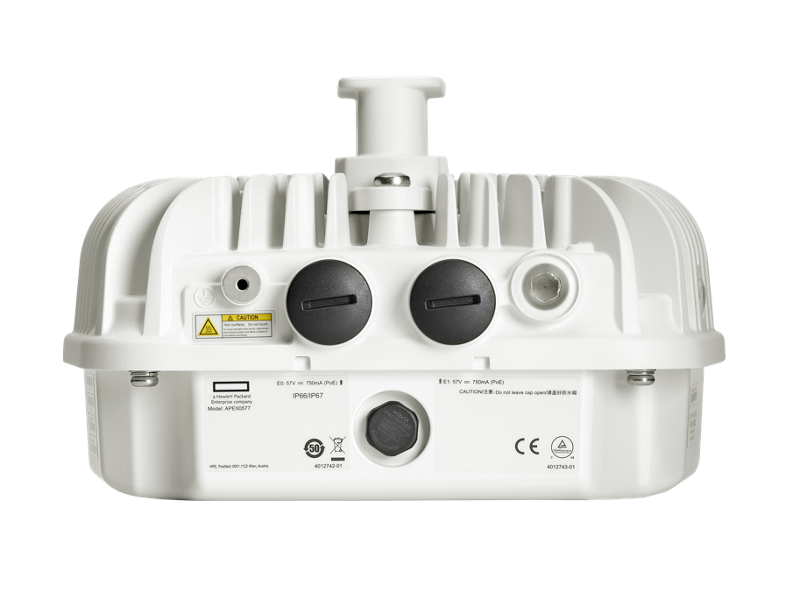

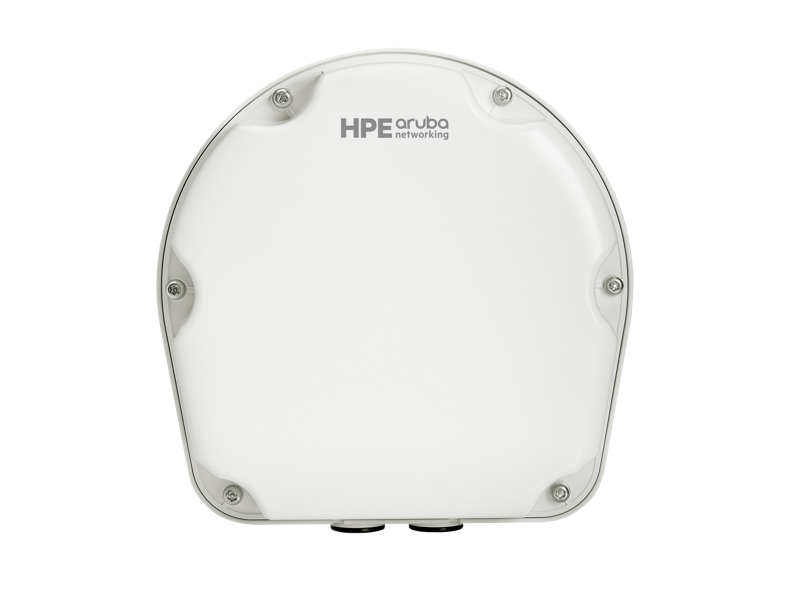

The HPE Aruba Networking AP-577 (ILF1) is a high-performance outdoor access point built for the harshest environments. Part of the Aruba 570 Series, this TAA-compliant AP delivers fast, reliable Wi‑Fi 6 connectivity with a maximum aggregate data rate of 2.69 Gbps. Ideal for stadiums, transportation hubs, and large outdoor venues, the AP-577 features built-in 90° directional antennas and robust environmental protection.
Equipped with integrated Bluetooth 5 and 802.15.4/Zigbee radios, this access point is IoT-ready and supports advanced features such as ClientMatch, OFDMA, MU-MIMO, and Target Wake Time (TWT). Dynamic Segmentation, a built-in Policy Enforcement Firewall, and a Trusted Platform Module ensure secure access and end-to-end traffic protection.
Ready for deployment with Zero Touch Provisioning and managed via Aruba Central, the AP-577 offers unmatched outdoor wireless performance, resiliency, and simplified security.
| Specification | Details |
|---|---|
| Product Number | R4H35A |
| Model | AP-577 (ILF1) |
| Form Factor | Outdoor Hardened Access Point |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Radio Configuration | Dual Radio: 2x2 MIMO (2.4 GHz) + 4x4 MIMO (5 GHz) |
| Antenna Type | Internal Directional, 90°H x 90°V |
| Antenna Gain | 2.4 GHz: 6.4 dBi / 5 GHz: 6.3 dBi |
| Max Aggregate Data Rate | 2.69 Gbps |
| Power Consumption (Max) | 32W (dual PoE), 26.1W (single PoE) |
| PoE Support | IEEE 802.3at PoE |
| IoT Radios | Bluetooth 5, Zigbee (802.15.4) |
| Security Features | WPA3, Enhanced Open, TPM, Dynamic Segmentation |
| Mounting | Optional kits available |
| Operating Temperature | -40°C to +65°C |
| Certifications | TAA, CB Scheme, FCC, CE, RED, UL2043, Railway Standards |
| Dimensions (HxWxD) | 13 x 23 x 22 cm |
| Weight | 2.1 kg |
| Warranty | Limited Lifetime Warranty |
