Description
Ruggedized, High-Speed Wi-Fi 6 for Outdoor Deployments

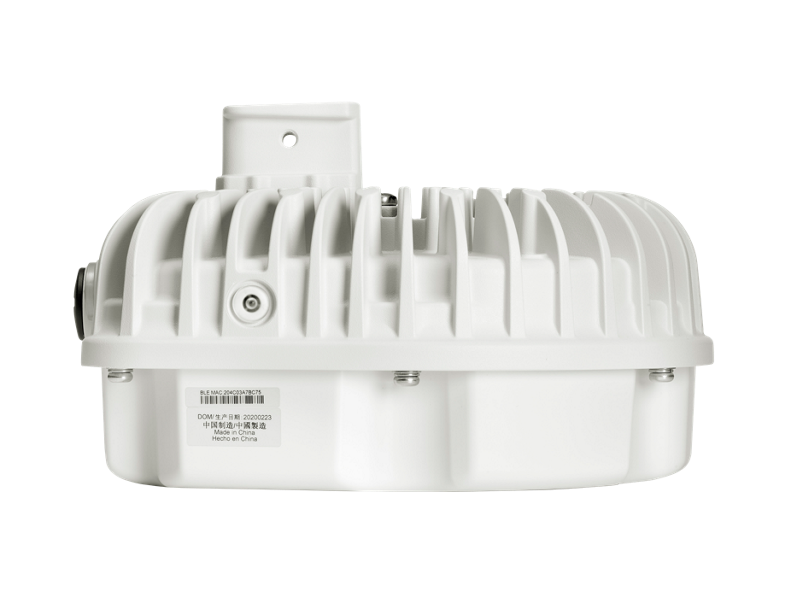

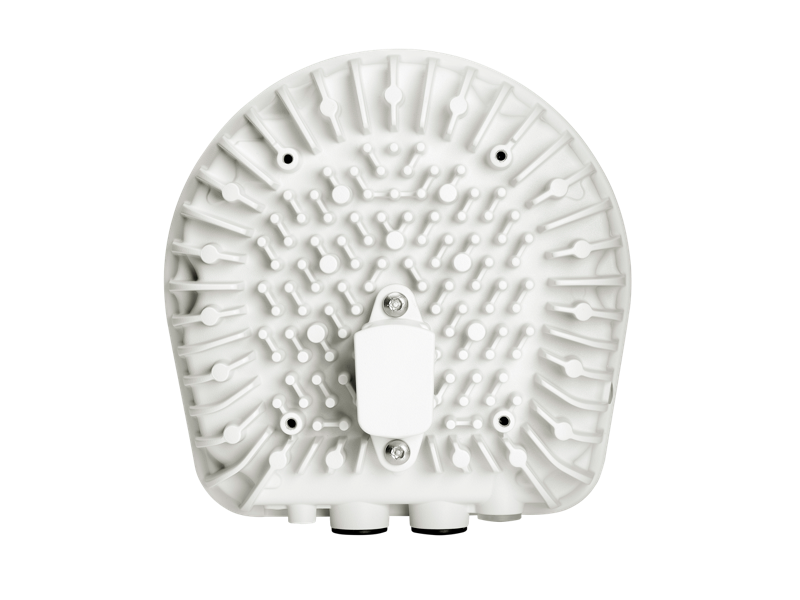

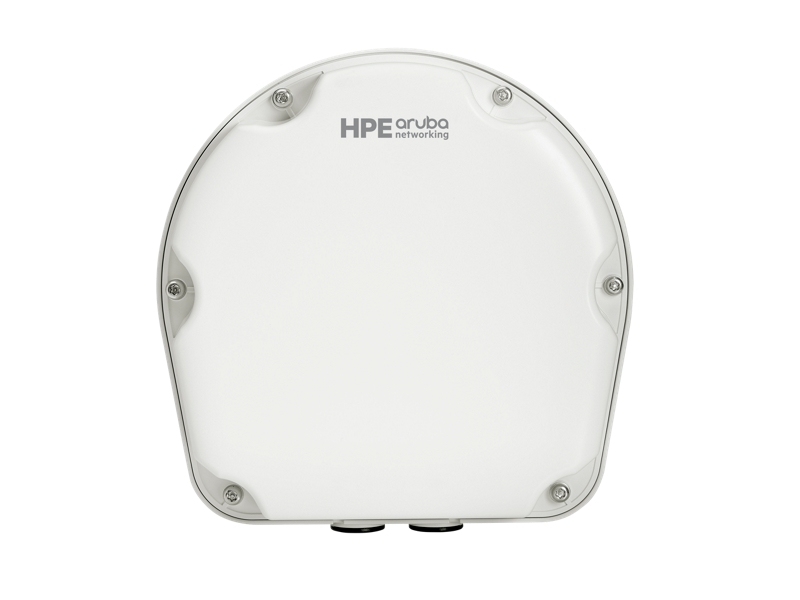

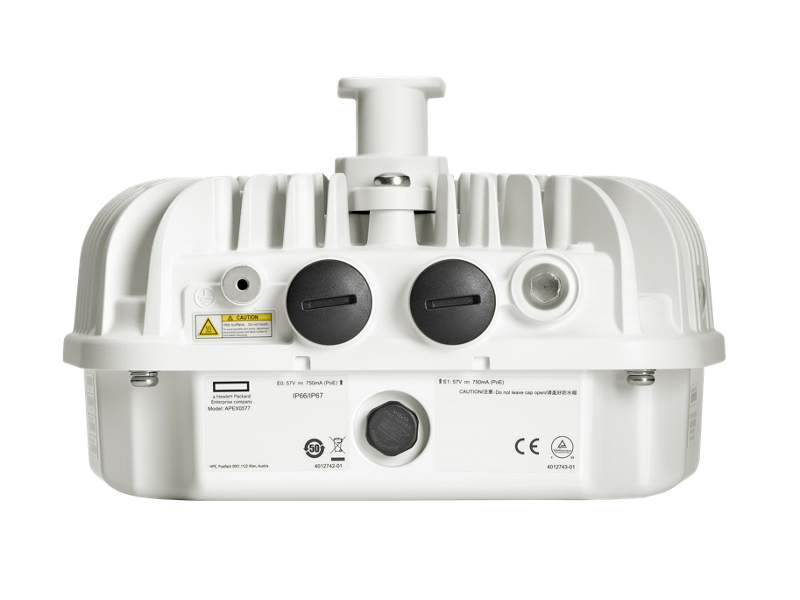

The HPE Aruba Networking AP-577 (EGF1) is a high-performance Wi-Fi 6 dual radio outdoor access point built to withstand the harshest environmental conditions. Designed with integrated directional antennas and certified for TAA compliance, it is ideal for public venues, stadiums, and industrial sites.
With a maximum aggregate data rate of 2.69 Gbps, integrated Bluetooth 5 and Zigbee radios, and AI-powered optimization features, this access point delivers reliable and scalable wireless coverage. The AP-577 supports Dynamic Segmentation, WPA3 security, Zero Touch Provisioning, and operates in extreme temperatures ranging from –40°C to +65°C.
| Specification | Details |
|---|---|
| Product Number | R4H34A |
| Model | AP-577 (EGF1) |
| AP Type | Outdoor, Wi-Fi 6 Dual Radio |
| Radio Configuration | 5 GHz 4x4 MIMO and 2.4 GHz 2x2 MIMO |
| Maximum Data Rate | 2.69 Gbps aggregate |
| Antenna Type | Internal directional antennas (90°H x 90°V), 5 GHz (6.3 dBi), 2.4 GHz (6.4 dBi) |
| Wireless Standards | IEEE 802.11ax (Wi-Fi 6), backward compatible with a/b/g/n/ac |
| IoT Support | Integrated Bluetooth 5 and 802.15.4 (Zigbee); USB port for expansion |
| Security Features | WPA3, Enhanced Open, TPM, Dynamic Segmentation, Policy Enforcement Firewall |
| Power Consumption | Max: 32.0W (dual PoE); 26.1W (single PoE) |
| Environmental Rating | -40°C to +65°C; weatherproof; hardened against dust, moisture, contaminants |
| Mounting Options | Optional mounting kits available (sold separately) |
| Certifications | TAA compliant, CB Scheme, FCC/ISED, CE, EN 50155, Wi-Fi 6 certified, etc. |
| Dimensions (H x W x D) | 13 x 23 x 22 cm (without mounting bracket) |
| Weight | 2.1 kg |
| Warranty | Limited lifetime warranty |
