Description

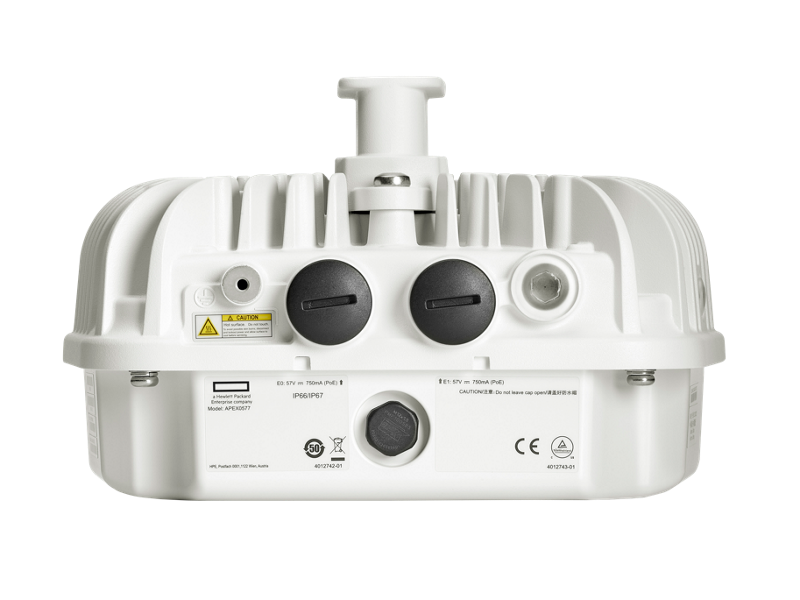

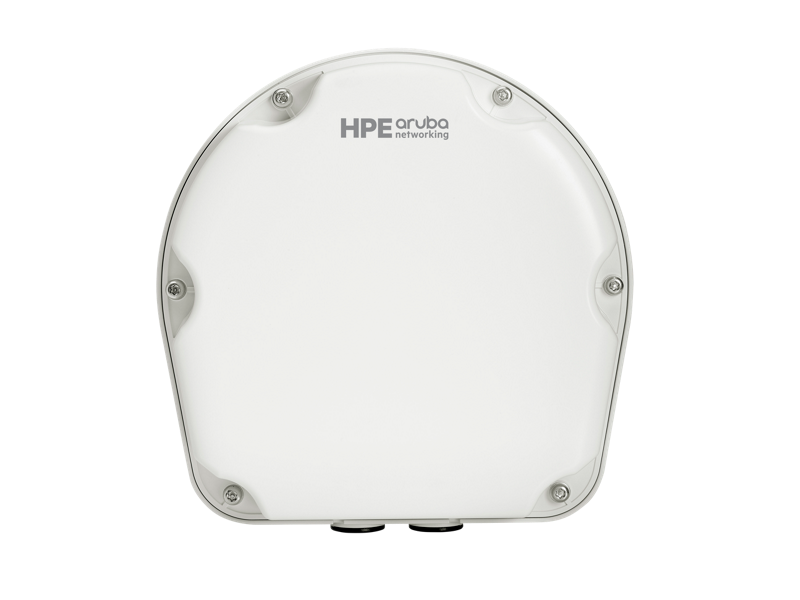

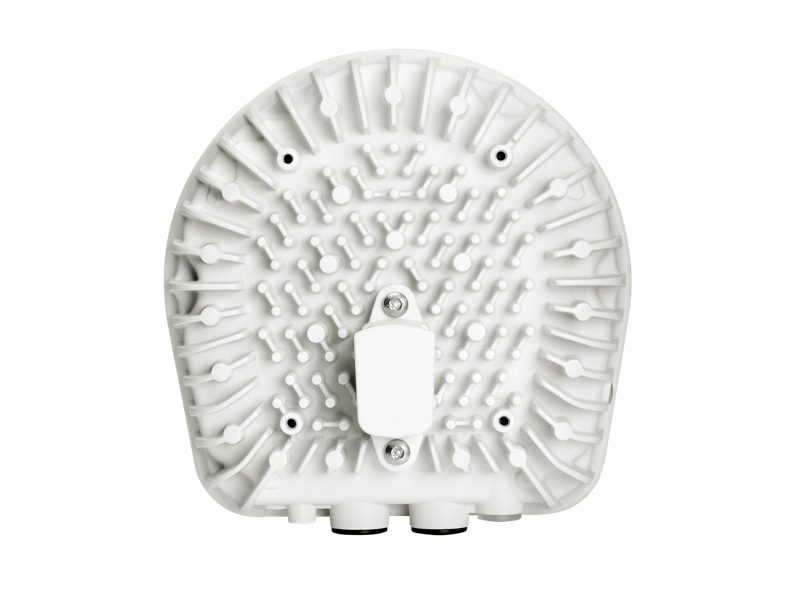

Deliver powerful, reliable wireless connectivity outdoors with the HPE Aruba Networking AP-577. This ruggedized dual-radio 2x2/4x4 Wi-Fi 6 access point is purpose-built for harsh environments—perfect for stadiums, parking lots, and other outdoor venues. With a maximum aggregate data rate of 2.69 Gbps and built-in directional antennas, it ensures wide, high-performance coverage.
Equipped with integrated Bluetooth 5 and Zigbee radios, the AP-577 enables seamless IoT support without the need for additional infrastructure. Designed for quick deployment via Zero Touch Provisioning and backed by HPE Aruba Central’s AI-powered management and analytics, it offers an efficient, secure, and scalable wireless solution.
| Specification | Details |
|---|---|
| Product Number | R4H36A |
| Product Type | Outdoor Hardened Dual-Radio Wi-Fi 6 Access Point |
| Radio Configuration | 2.4 GHz 2x2 MIMO and 5 GHz 4x4 MIMO |
| Antenna | Internal 90°H x 90°V directional; 5 GHz: 6.3 dBi, 2.4 GHz: 6.4 dBi |
| Max Data Rate | Up to 2.69 Gbps aggregate |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| IoT Support | Bluetooth 5, 802.15.4/Zigbee, USB expansion |
| Mounting | Optional mounting kits (sold separately) |
| Power Consumption | Max 32.0W (dual PoE), 26.1W (single PoE); Idle: 14W/16W; Sleep: 2.9W/3.9W |
| Operating Temperature | -40°C to +65°C |
| Security | WPA3, Enhanced Open, TPM, Dynamic Segmentation, Policy Enforcement Firewall |
| Dimensions (H x W x D) | 13 x 23 x 22 cm |
| Weight | 2.1 kg |
| Certifications | Wi-Fi 6 Certified, TAA, Railway-compliant, IEC/EN/UL 62368-1 |
| Warranty | Limited Lifetime Warranty |
