Description

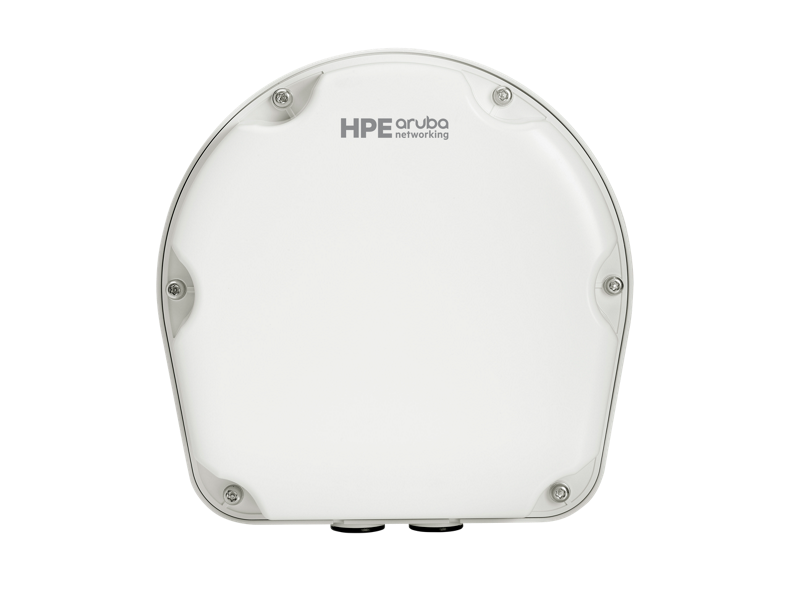

The HPE Aruba Networking AP‑577EX (JP) is a rugged, hazardous location-certified Wi-Fi 6 access point designed to deliver high-performance wireless connectivity in the most extreme environments. Equipped with dual radios (2x2 at 2.4 GHz and 4x4 at 5 GHz) and built-in 90°H x 90°V directional antennas, this access point delivers up to 2.69 Gbps of aggregate throughput.
Built to operate in Class 1 Division 2 and ATEX Zone 2 hazardous locations, the AP‑577EX (JP) is ideal for outdoor deployments in oil fields, refineries, mining sites, and other volatile industrial settings. With integrated Bluetooth 5 and Zigbee radios, IoT support, WPA3 security, and Dynamic Segmentation, it ensures both speed and safety for enterprise and industrial networks.
| Specification | Details |
|---|---|
| Product Number | R4W37A |
| Model Name | AP-577EX (JP) |
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6) |
| Radios | Dual Radio: 2.4 GHz 2x2 MIMO, 5 GHz 4x4 MIMO |
| Antenna Type | Integrated 90°H x 90°V directional antennas |
| Antenna Gain | 2.4 GHz: 6.4 dBi, 5 GHz: 6.3 dBi |
| IoT Radios | Integrated Bluetooth 5 and 802.15.4 (Zigbee) |
| Maximum Data Rate | Up to 2.69 Gbps (aggregate) |
| Mounting | Optional mounting kits available |
| Power Consumption | Max: 32.0W (dual PoE), 26.1W (single PoE); Idle: 14W/16W; Deep-sleep: 2.9W/3.9W |
| Dimensions (H x W x D) | 13 x 23 x 22 cm |
| Weight | 2.1 kg |
| Temperature Range | -40°C to +65°C |
| Enclosure Rating | Weatherproof, fully sealed |
| Hazardous Location Certifications | Class 1 Division 2, ATEX Zone 2 |
| Security Features | WPA3, Enhanced Open, Policy Enforcement Firewall, TPM |
| Management | Aruba Central, Zero Touch Provisioning |
| Certifications | CB Scheme, cTUVus, UL2043, Wi-Fi 6, FCC, CE, RED, EMC, IEC/EN/UL 62368-1 |
| Warranty | Limited Lifetime Warranty |
