Description

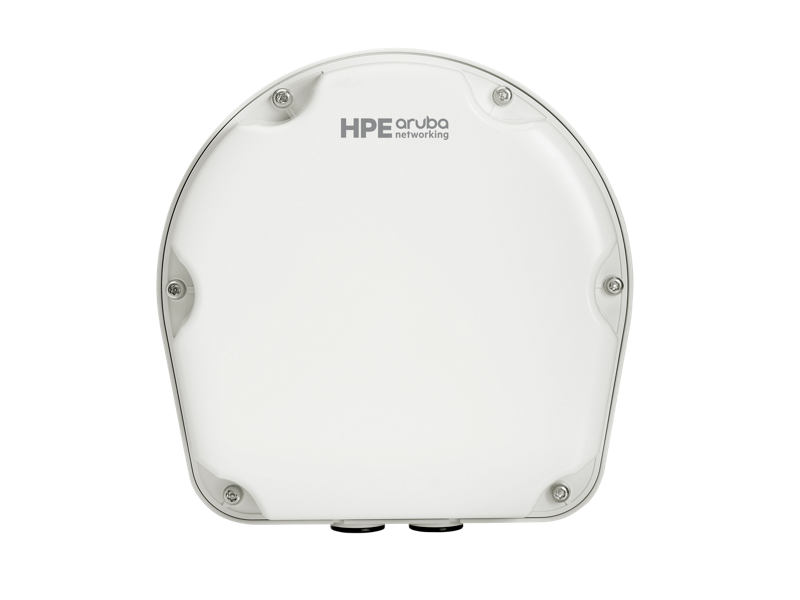

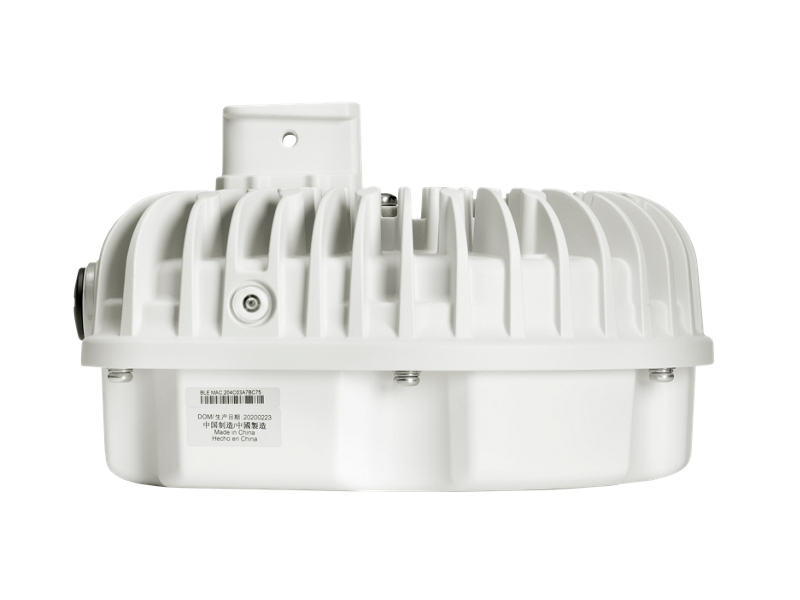

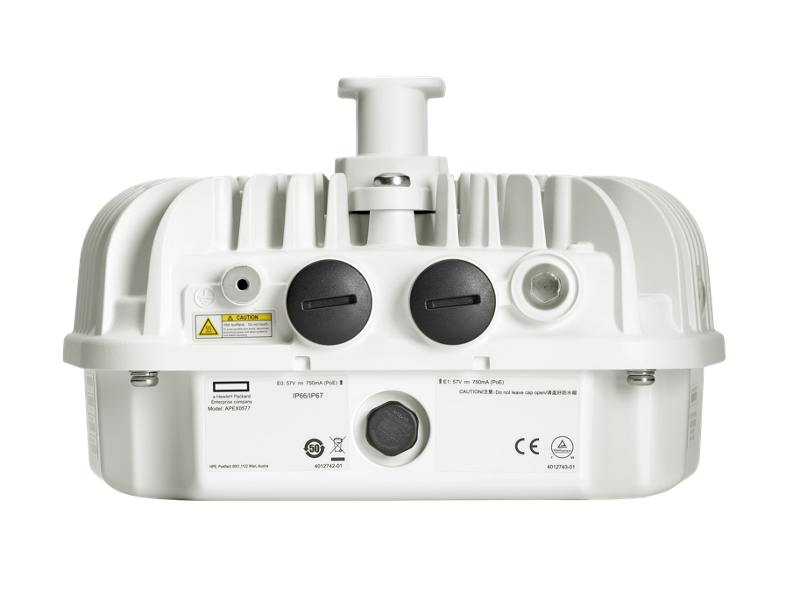

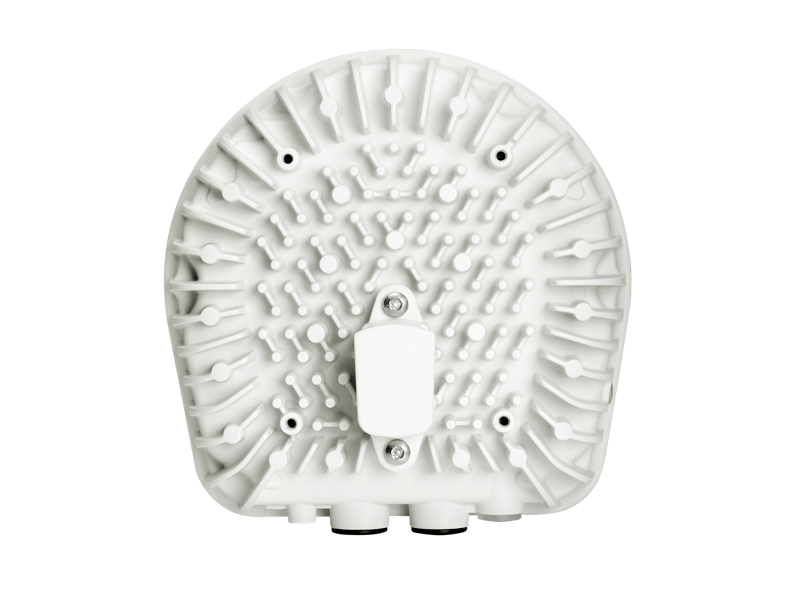

The HPE Aruba Networking AP-577EX (EG) is a ruggedized, hazardous-location-rated outdoor access point designed to bring Wi-Fi 6 connectivity to extreme environments such as oil fields, mining facilities, and industrial zones with explosive atmospheres. Certified for Class 1 Division 2 and ATEX Zone 2, it supports dual radio operation with built-in directional antennas delivering up to 2.69 Gbps of aggregate throughput.
Equipped with integrated BLE and Zigbee radios, the AP-577EX enables seamless IoT integration and improved network visibility. Its hardened casing withstands temperatures from –40°C to +65°C, ensuring consistent performance in the harshest conditions. Ideal for secure, policy-driven wireless access, this AP supports Dynamic Segmentation, WPA3 security, and HPE Aruba Networking Central for cloud-based management.
| Specification | Details |
|---|---|
| Product Number | R4W35A |
| Model Name | AP-577EX (EG) |
| Wi-Fi Standard | Wi-Fi 6 (IEEE 802.11ax) |
| Radios | Dual Radio: 5 GHz (4x4 MIMO), 2.4 GHz (2x2 MIMO) |
| Antenna Type | Built-in 90°H x 90°V directional antennas |
| Antenna Gain | 5 GHz: 6.3 dBi, 2.4 GHz: 6.4 dBi |
| IoT Support | Integrated Bluetooth 5 and Zigbee (802.15.4) |
| Max Aggregate Throughput | Up to 2.69 Gbps |
| Power Consumption (max) | 32.0W (dual PoE), 26.1W (single PoE, full function) |
| Environmental Rating | Class 1 Division 2, ATEX Zone 2 |
| Operating Temperature | –40°C to +65°C |
| Mounting | Optional kits available (sold separately) |
| Dimensions (H x W x D) | 13 x 23 x 22 cm |
| Weight | 2.1 kg |
| Security | WPA3, Enhanced Open, TPM, Policy Enforcement Firewall |
| Management Platform | HPE Aruba Networking Central |
| Warranty | Limited Lifetime Warranty |
| Certifications | FCC, CE, CB Scheme, Wi-Fi 6 Certified, UL2043, EN60601 |
