Description

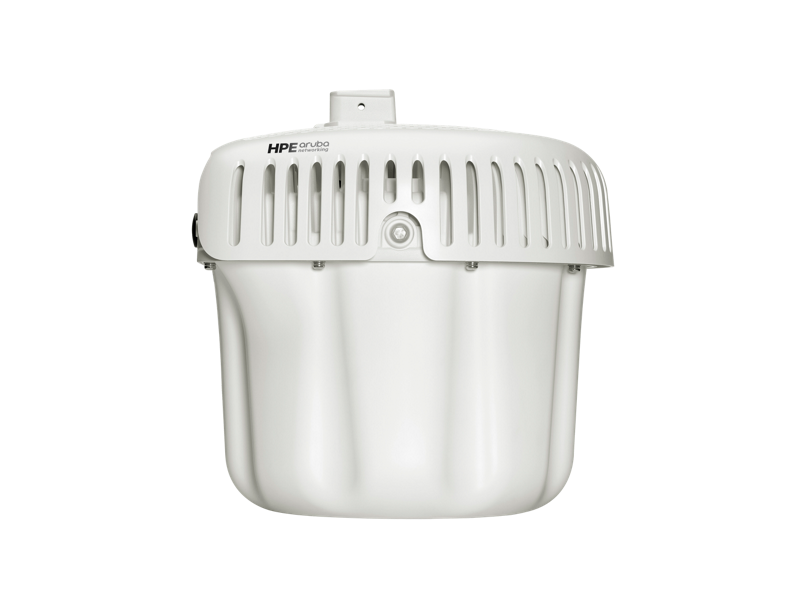

The HPE Aruba Networking AP-585 (R7T04A) is a high-performance Wi-Fi 6 outdoor access point designed for large-scale enterprise and industrial IoT environments. Built to endure extreme weather conditions, it features dual radio 4x4 MIMO on the 5 GHz band and 2x2 MIMO on 2.4 GHz, delivering an impressive aggregate throughput of up to 2.97 Gbps.
With internal omni-directional antennas, rugged IP66/67-rated enclosure, and support for multi-gigabit Ethernet and Class 6 PoE or AC power, the AP-585 is engineered to provide robust connectivity in harsh outdoor settings. Integrated Bluetooth and 802.15.4/Zigbee radios ensure seamless IoT integration, while HPE’s AI-powered ClientMatch and centralized management via Aruba Central offer improved client experiences and operational simplicity.
Ideal for campuses, industrial zones, and large open-air venues, this outdoor AP is secured with dynamic segmentation, WPA3 encryption, and a built-in TPM for ultimate policy enforcement and data protection.
| Specification | Details |
|---|---|
| Model Number | R7T04A |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Radios | Dual radio: 5 GHz 4x4 MIMO, 2.4 GHz 2x2 MIMO |
| Max Data Rate | 4.8 Gbps (5 GHz) + 575 Mbps (2.4 GHz); up to 2.97 Gbps total |
| Antenna Type | Built-in internal omni antennas (4.5 dBi avg @5GHz; 3.0 dBi avg @2.4GHz) |

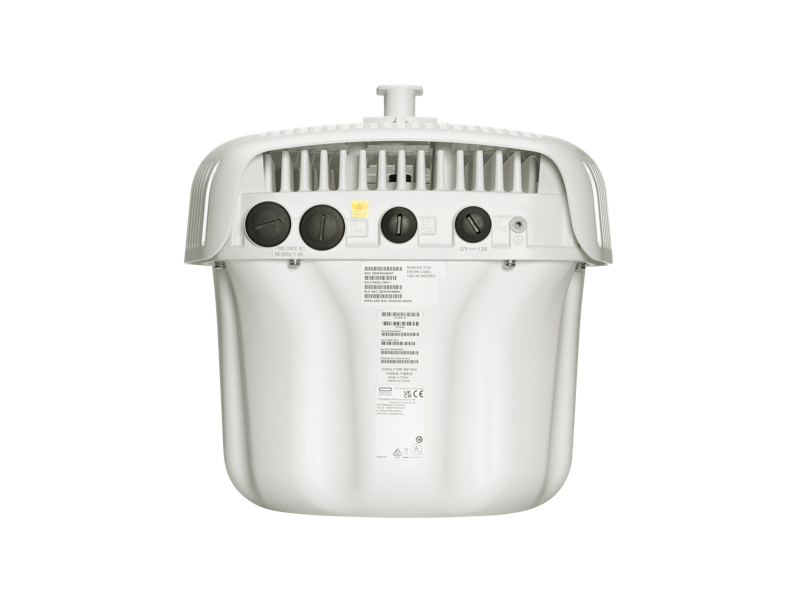

| Connectivity Options | 5GbE port, SFP+ port, PSE out port |
| IoT Support | Integrated Bluetooth 5.0, 802.15.4/Zigbee |
| Power Input | 802.3bt Class 6 PoE (port E0) or AC (110–240V via optional kit) |
| Max Power Consumption | 71W (AC), 49.5W (PoE Class 6), 25.5W (PoE Class 4) |

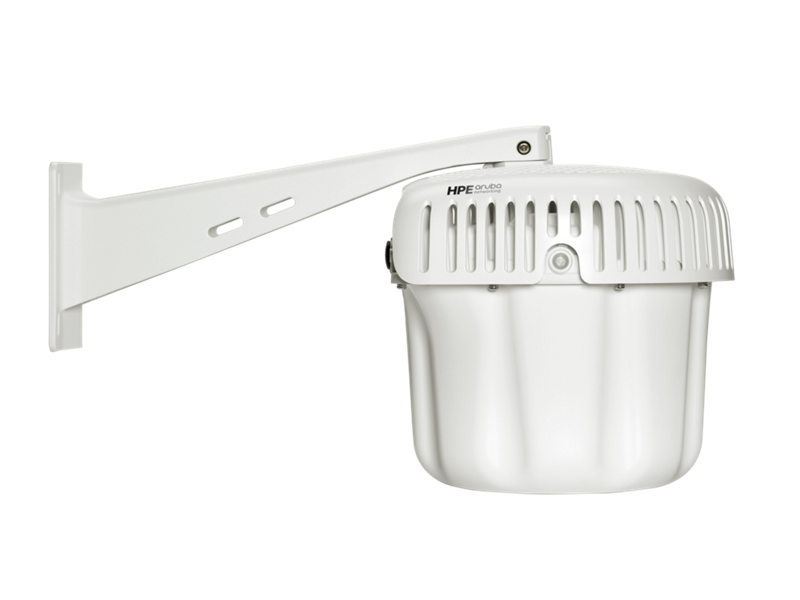

| Mounting | Optional mounting kits available |
| Temperature Range | -40°C to +65°C |
| Environmental Rating | IP66/67 weatherproof, industrial surge protection |
| Security Features | WPA3, Enhanced Open, TPM, Dynamic Segmentation, PEF |
| Management | Aruba Central cloud or on-prem |
| Dimensions (H x W x D) | 32 x 32.4 x 31.3 cm |
| Weight | 5.24 kg |
| Warranty | Limited lifetime warranty |
| Certifications | Wi-Fi Alliance, Bluetooth SIG, FCC, ISED, CE, UL/IEC/EN 62368-1, EN 50155 |
