Description

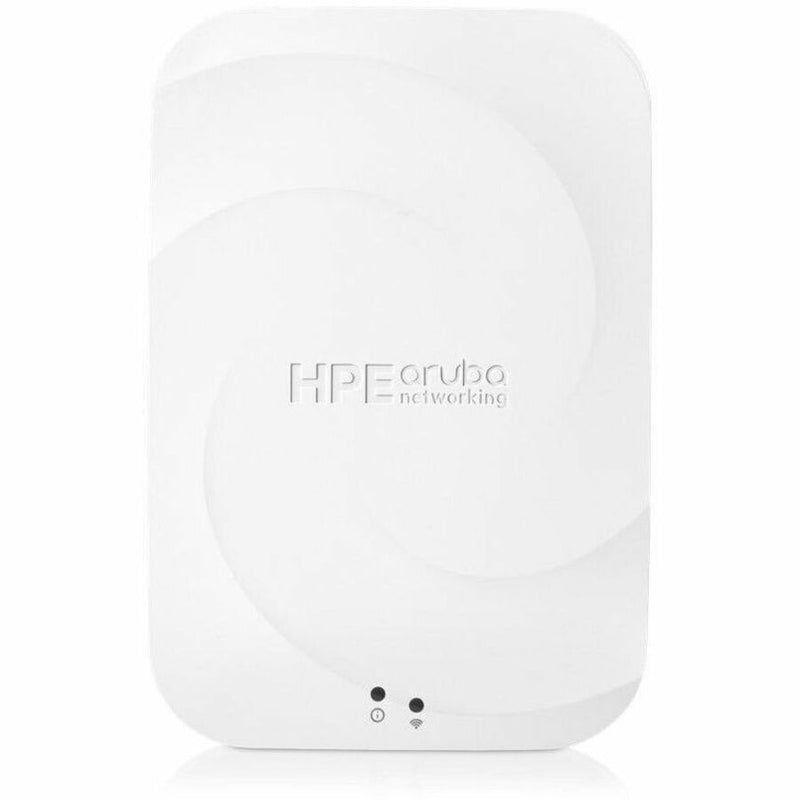

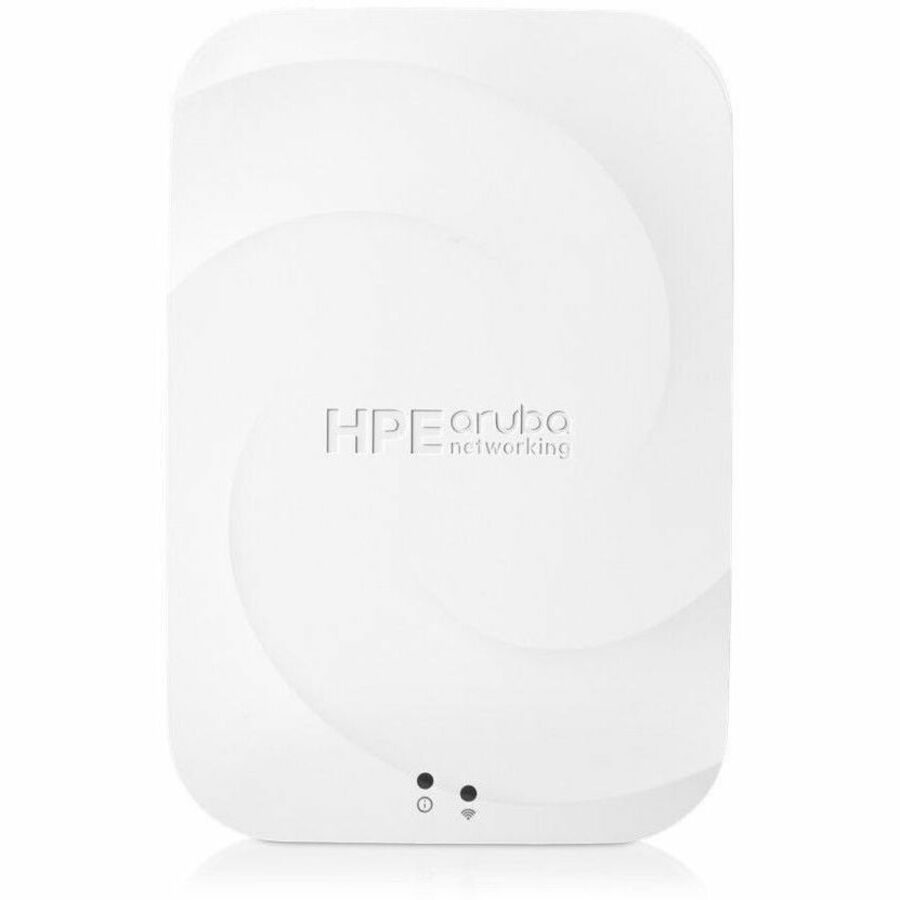

The HPE Aruba Networking AP-605H (US) 10-Pack is part of the 600H Series Hospitality Access Points, purpose-built to deliver seamless, high-performance Wi-Fi 6E connectivity in hospitality, branch, and remote work environments. With support for dual radios across the 2.4 GHz, 5 GHz, and 6 GHz bands, these compact wall- or desk-mounted APs offer up to 3.6 Gbps throughput and are perfect for bandwidth-intensive applications such as HD video and AR/VR.
Integrated BLE and Zigbee radios enable IoT capabilities, while features like ClientMatch, Air Slice, and Dynamic Segmentation provide superior wireless performance, user experience, and security. These access points are IoT-ready and include PoE support, robust security protocols like WPA3, and a limited lifetime warranty.
| Specification | Details |
|---|---|
| Product Number | S1F96A |
| Radio Type | Dual radio, tri-band (2.4GHz, 5GHz, 6GHz), 2x2:2 MIMO Wi-Fi 6E |
| Max Data Rate | Up to 3.6 Gbps (combined peak) |
| Mounting Options | Wall mount, desk mount, or wall-box (mount kits sold separately) |
| Ethernet Ports | 1x 2.5GbE uplink (NBASE-T), 4x 1GbE downlink (2x PoE PSE capable) |
| USB Ports | 1x USB 2.0 host interface (Type A) |
| PoE Support | IEEE 802.3af/at/bt (Class 3, 4, or 6) |
| Power Consumption | Up to 50W (max with full USB and PSE load) |
| Antenna Type | Integrated omni-directional, 5.1 dBi (2.4 & 5 GHz), 5.4 dBi (6 GHz) |
| IoT Support | Integrated Bluetooth 5 and Zigbee (802.15.4) |
| Security | WPA3, Enhanced Open, TPM chip, Dynamic Segmentation |
| Certifications | Wi-Fi CERTIFIED a/b/g/n/ac/6/6E, WPA2/WPA3, Agile Multiband, etc. |
| Regulatory Compliance | FCC, ISED, CE, RED, EMC, IEC/EN 62368-1, UL2043 |
| Heat Dissipation | Up to 65.2 BTU/hr |
| Warranty | Limited lifetime |
| SKU Contents | 10x AP-605H Units (US), accessories not included |
