Description

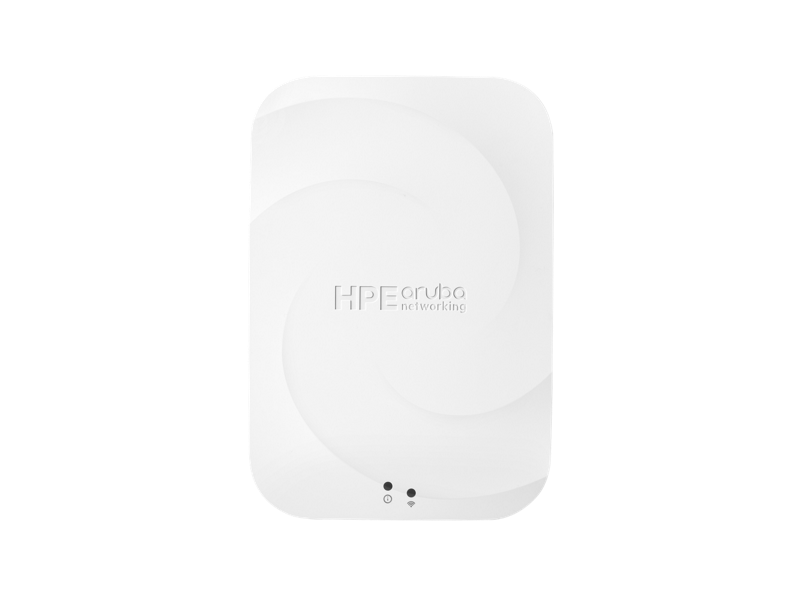

Deliver superior wireless experiences in hospitality, branch, and remote work environments with the HPE Aruba Networking AP-605H (RWF1). Part of the Aruba 600H Series, this compact dual-radio, tri-band access point supports Wi-Fi 6E with flexible coverage across any two of the 2.4 GHz, 5 GHz, and 6 GHz bands, offering a maximum throughput of 3.6 Gbps. Designed for high-density deployments, it includes built-in Bluetooth 5 and Zigbee radios for IoT support, as well as advanced ClientMatch and Air Slice technologies for optimized performance.
With a 2.5 GbE uplink, four Gigabit Ethernet ports (two PSE-capable), and USB support in a compact wall or desk-mountable design, the AP-605H (RWF1) simplifies wired and wireless integration in hotel rooms, dormitories, or remote offices. Secure, scalable, and TAA-compliant, this model ensures robust connectivity and policy enforcement with WPA3, Enhanced Open, and integrated TPM.
| Specification | Details |
|---|---|
| Product Number | S0B61A |
| Wi-Fi Standard | Wi-Fi 6E (IEEE 802.11ax) |
| Radios & Bands | Dual-radio, configurable for 2.4 GHz, 5 GHz, and 6 GHz |
| Max Data Rate | Up to 3.6 Gbps combined throughput |
| Antenna | Integrated 2x2 MIMO omni antennas |
| Peak Antenna Gain | 5.1 dBi (2.4/5 GHz), 5.4 dBi (6 GHz) |
| Ethernet Ports | 1x 2.5GBASE-T (uplink), 4x 1GBASE-T (2 with PoE PSE support) |
| PoE Support | IEEE 802.3af/at/bt (Class 3, 4, 6); up to 50W consumption |
| USB Port | 1x USB 2.0 Type-A |
| IoT Support | Integrated Bluetooth 5.0 and Zigbee (802.15.4) |
| Security | WPA3, Enhanced Open (OWE), Dynamic Segmentation, TPM included |

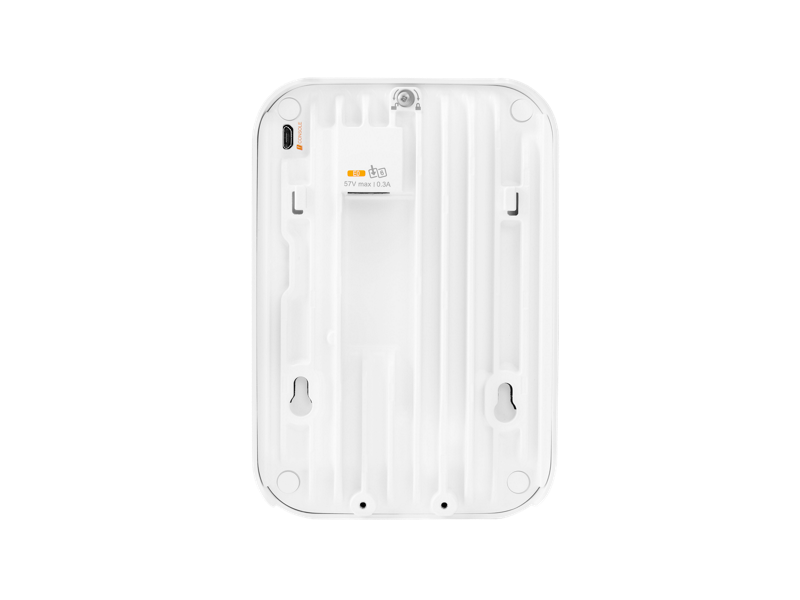

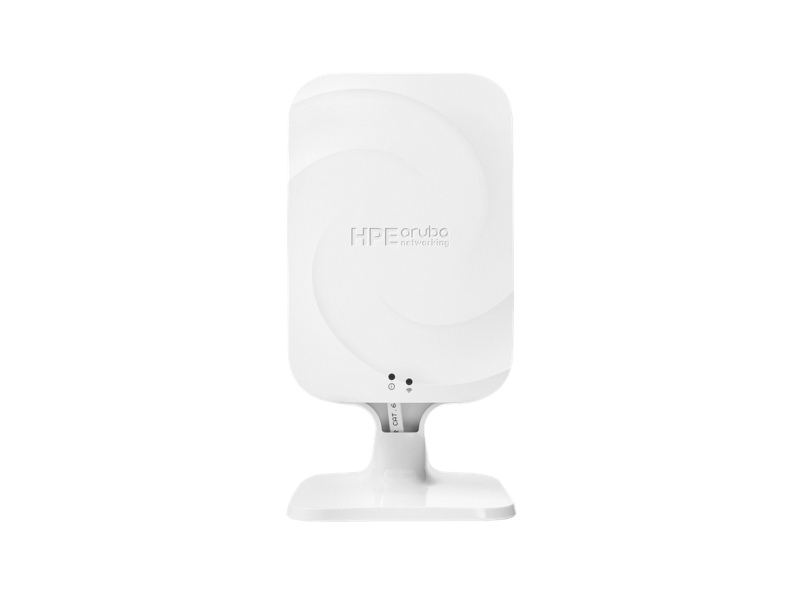

| Mounting Options | Wall box, wall, or desktop (mount kits sold separately) |
| Regulatory Certifications | FCC/ISED, CE, RED, EMC, LVD, IEC/EN 62368-1, UL2043 |
| Operating Environment | Indoor use |
| Heat Dissipation | Up to 65.2 BTU/hr |
| Power Input | PoE or 48V DC (optional adapter) |
| Dimensions & Weight | [Refer to QuickSpecs or Mount Kit for specific form factor details] |
| Warranty | Limited lifetime warranty |
