Description

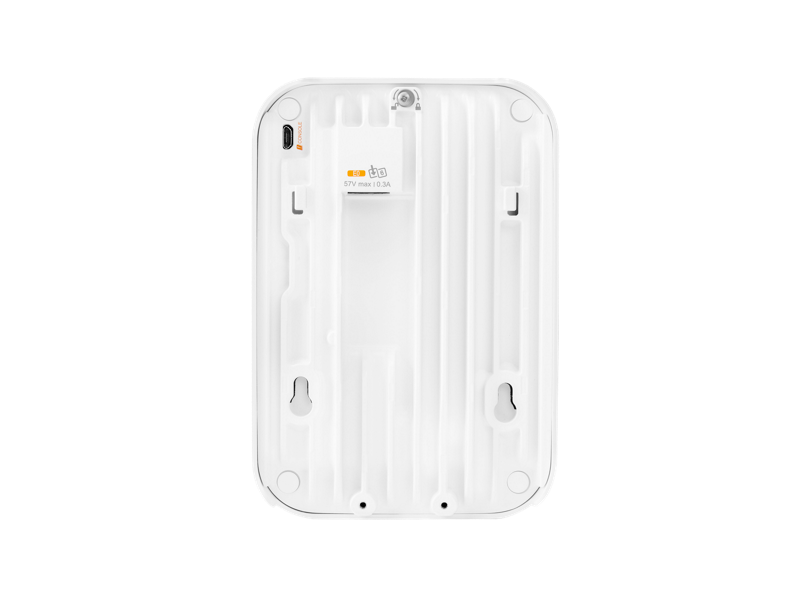

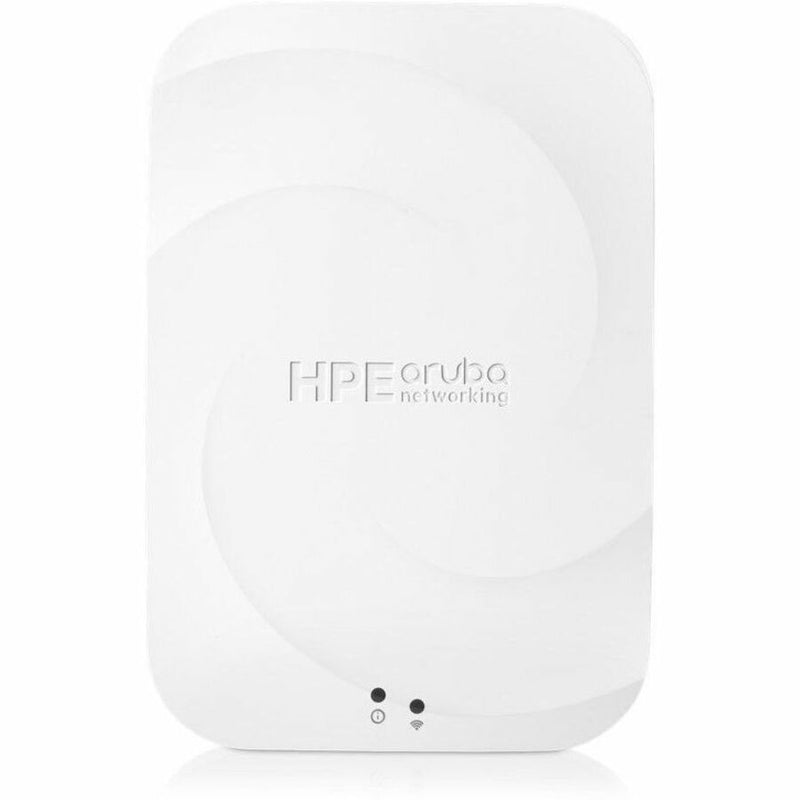

The HPE Aruba Networking AP-605H (USF1) is a high-performance Wi-Fi 6E access point purpose-built for hospitality, branch offices, and teleworker environments. With dual radios supporting any two of the three bands (2.4 GHz, 5 GHz, and 6 GHz), it delivers up to 3.6 Gbps combined peak throughput, optimized for high-bandwidth and low-latency applications including HD video and AR/VR.
This compact unit combines wireless and wired connectivity with one 2.5GbE uplink port and four 1GbE Ethernet ports (two with PoE out support), plus a USB 2.0 port for flexibility. Integrated Bluetooth 5 and Zigbee radios provide built-in IoT support. Enhanced with WPA3 security, Dynamic Segmentation, and ClientMatch, the AP-605H ensures seamless user experiences and simplified management.

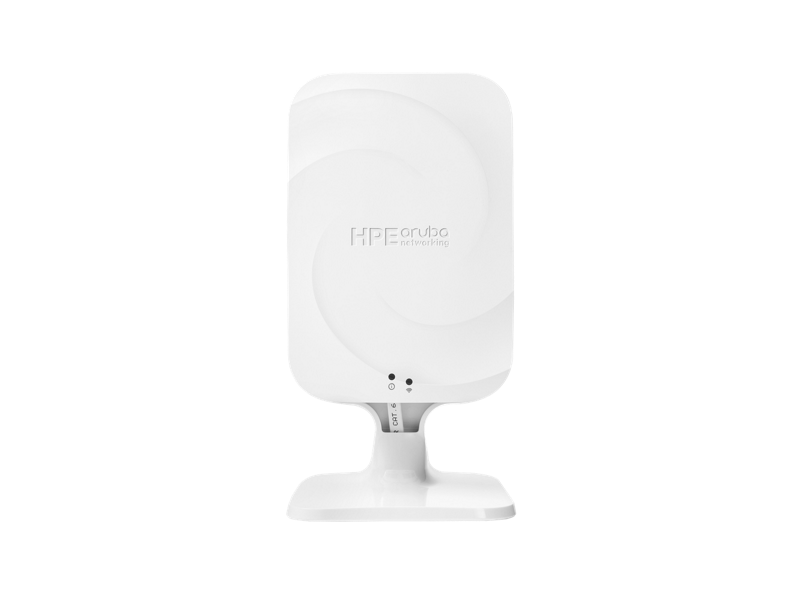

Ideal for wall or desktop mounting, this unit supports Power over Ethernet (PoE) and includes advanced features like Air Slice, TPM security, and Intelligent Power Monitoring for a secure and efficient deployment.
| Specification | Details |
|---|---|
| Product Number | S0B63A |
| Wi-Fi Standard | Wi-Fi 6E (802.11ax), tri-band (2.4 GHz, 5 GHz, 6 GHz) |
| Radios | 2-Radio, configurable for any two of 2.4, 5, or 6 GHz |
| MIMO Configuration | 2x2 MIMO |
| Max Data Rate | Up to 3.6 Gbps |
| Antenna Gain | 5.1 dBi (2.4/5 GHz), 5.4 dBi (6 GHz) |
| Ports | 1x 2.5GBASE-T (RJ45), 4x 1GBASE-T (2x with PoE out), 1x USB 2.0 |
| PoE Support | PoE In: IEEE 802.3af/at/bt; PoE Out: 30W total (Class 4) |
| Mounting Options | Wall mount (single/dual gang box), wall surface, or desktop (kits sold separately) |
| IoT Support | Integrated Bluetooth 5 and Zigbee (802.15.4) |
| Security | WPA3, Enhanced Open, TPM, Dynamic Segmentation |
| Power Consumption | Up to 50W (with full USB and PSE load) |
| Heat Dissipation | Up to 65.2 BTU/hr |
| Certifications | Wi-Fi Alliance (Wi-Fi 6, WPA3), FCC, CE, UL2043, EN60601-1 |
| Regulatory Compliance | RED, EMC, LVD Directives; TAA compliant |
| Environment | Indoor, hospitality, branch, or remote office |
| Warranty | Limited Lifetime Warranty |
