Description

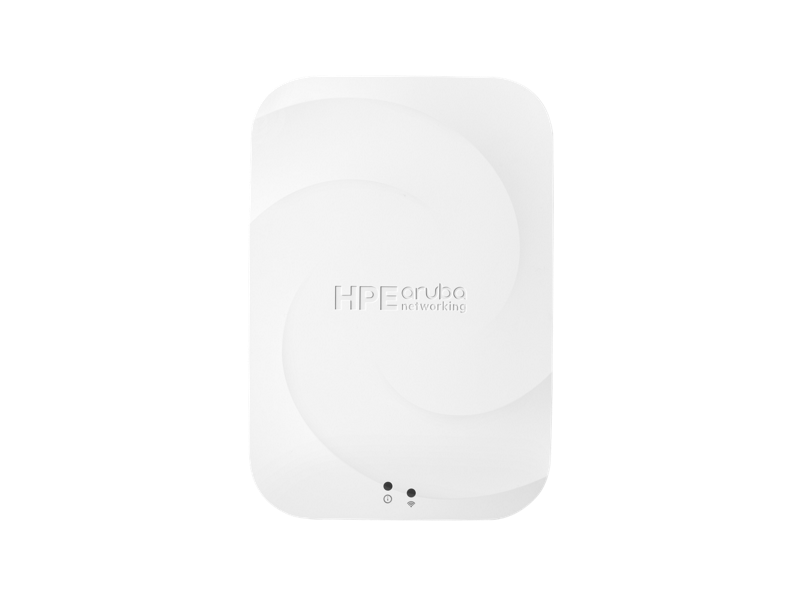

Deliver high-performance, secure, and reliable wireless connectivity in hospitality, small branch, and remote environments with the HPE Aruba Networking AP‑605HR (EU) Remote AP Bundle. Featuring a compact form factor, this Wi-Fi 6E certified access point supports configurable dual-radio operation across 2.4 GHz, 5 GHz, and 6 GHz bands for a combined peak throughput of up to 3.6 Gbps.
Equipped with a 2.5GbE uplink and four additional gigabit Ethernet ports (including PoE output), the AP-605HR seamlessly supports both wireless and wired devices. Integrated support for Bluetooth 5, Zigbee, and USB makes it ideal for IoT-centric deployments, while advanced security features like WPA3, Enhanced Open, TPM, and Dynamic Segmentation ensure secure, policy-driven connectivity.
| Specification | Details |
|---|---|
| Product Number | S0B64A |
| Wi-Fi Standard | Wi-Fi 6E (IEEE 802.11ax), tri-band (2.4GHz, 5GHz, 6GHz), 2x2 MIMO |
| Max Data Rate | Up to 3.6 Gbps combined |
| Radios | Dual-radio configurable (any two of 2.4 GHz, 5 GHz, 6 GHz) |
| Ports | 1x 2.5GbE uplink (100/1000/2500BASE-T) 4x 1GbE (2x PoE PSE) 1x USB 2.0 |
| PoE Support | IEEE 802.3af/at/bt (Class 3, 4, or 6), 48V DC input (optional) |
| PoE Output | Up to 30W total across 2 PSE ports |
| Antenna Type | Integrated omni-directional 2.4 GHz: 5.1 dBi 5 GHz: 5.1 dBi 6 GHz: 5.4 dBi |
| IoT Radios | Bluetooth 5, Zigbee (802.15.4) |
| Security | WPA3, Enhanced Open (OWE), Dynamic Segmentation, TPM |
| Mounting Options | Desktop, wall mount, single/dual gang wall box (mount kits sold separately) |
| Power Consumption | Max 50W (worst case with full USB and PSE load) |
| Heat Dissipation | Up to 65.2 BTU/hr |
| Certifications | Wi-Fi Alliance, Bluetooth SIG, Ethernet Alliance, CE, FCC, UL2043, etc. |
| Regulatory Compliance | RED, EMC, LVD, IEC/EN 62368-1, EN 60601-1 |
| Warranty | Limited lifetime warranty |
