Description

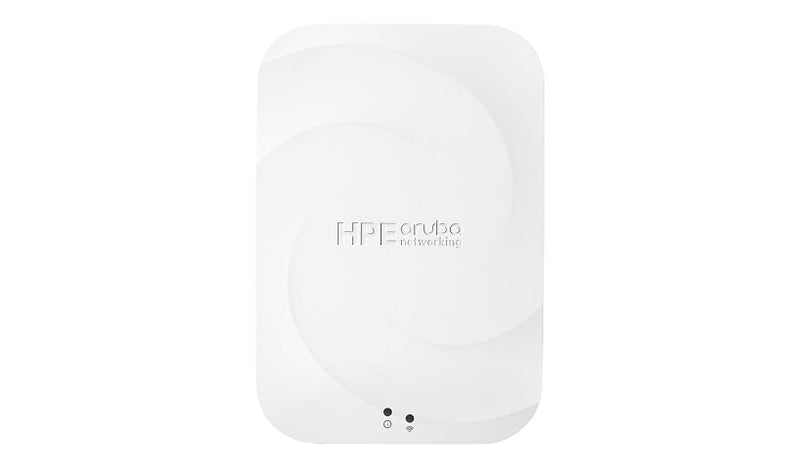

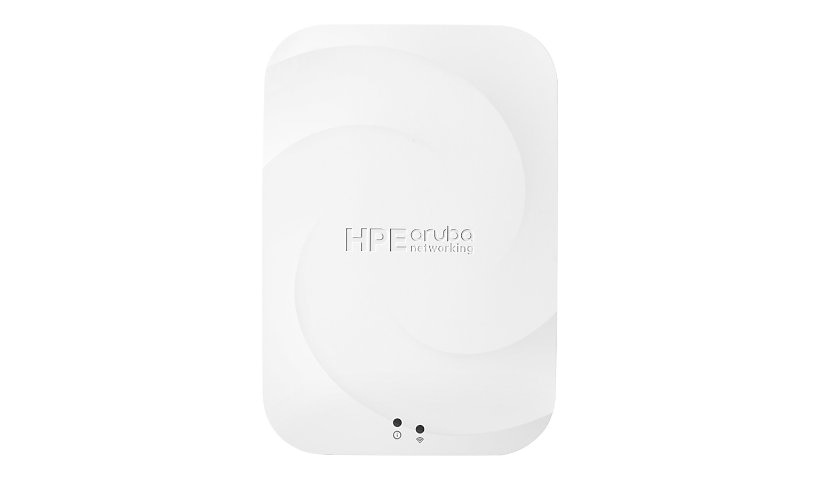

The HPE Aruba Networking AP-605HR (US) Remote Access Point from the 600H Series is designed to deliver enterprise-grade Wi-Fi 6E performance in hospitality, branch office, and remote work environments. Supporting tri-band coverage (2.4 GHz, 5 GHz, 6 GHz) with 2x2 MIMO, this access point ensures faster throughput and broader coverage using the latest 6 GHz spectrum.
With integrated Bluetooth 5.0 and ZigBee for IoT, advanced radio management, PoE+ support, and cloud-managed compatibility via Aruba Central, the AP-605HR is a compact yet powerful solution. Ideal for deployments in hotels, residence halls, and satellite offices, it features internal omni-directional antennas, robust encryption, and support for up to 512 client devices per radio. A ruggedized white housing and a limited lifetime warranty ensure reliability and style in mission-critical deployments.
| Specification | Details |
|---|---|
| Product Code | S0B65A |
| Model | HPE Aruba Networking AP-605HR (US) Remote |
| Product Type | Wireless Access Point |
| Wi-Fi Standard | Wi-Fi 6E (802.11ax), backward compatible with 802.11a/b/g/n/ac |
| Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz (select any two simultaneously) |
| Max Data Rate | 3.6 Gbps total • 2.4 GHz: 287 Mbps • 5 GHz: 1.2 Gbps • 6 GHz: 2.4 Gbps |
| Antennas | 2x Internal Omni-directional |
| MIMO | 2x2 MIMO |
| IoT Support | Bluetooth 5.0, ZigBee |
| Security Features | WPA/WPA2/WPA3-Enterprise, OWE, SAE, TPM |
| Power Options | PoE+ (IEEE 802.3af/at/bt) – Class 3/4/6 |
| Interfaces | • 1x 100/1000/2500Base-T (RJ-45)• 2x 10/100/1000Base-T (PoE+)• 2x 10/100/1000Base-T• 1x USB 2.0 Type-A• 1x Console (micro-USB) |
| Mounting | External (non-ceiling) |
| Dimensions | 6" H x 4.1" W x 1.6" D |
| Weight | 17.64 oz (approx. 500g) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity Tolerance | 5% – 95% RH (non-condensing) |
| Certifications | FCC, UL 2043, RED, LVD, EN 60601, IEC 62368, and more |
| Management Software | ArubaOS 8.12 / 10.7, InstantOS 8.12 |
| MTBF | 114 Years |
| Warranty | Limited Lifetime Warranty |
