Description

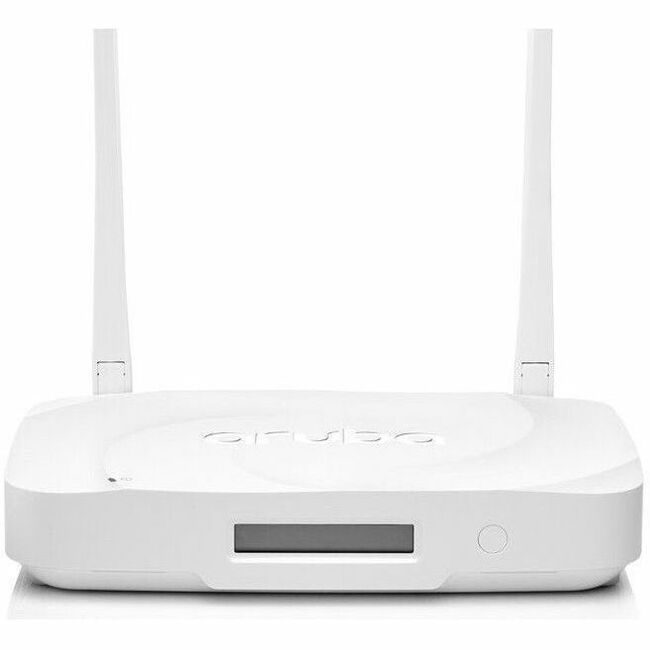

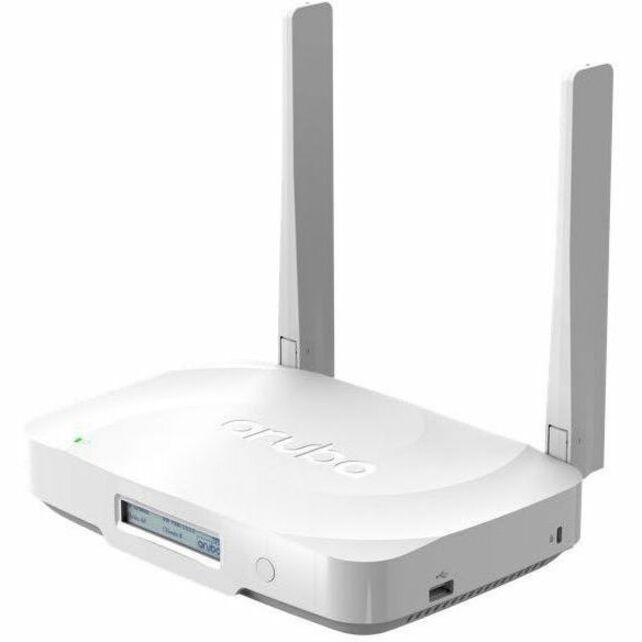

The HPE Aruba Networking AP‑605R (ABA) from the 600R Series is a high-performance tri-band Wi-Fi 6E indoor access point designed to deliver seamless and secure connectivity for remote workers and small office environments. With support for 2.4 GHz, 5 GHz, and the newly introduced 6 GHz band, this access point offers blazing-fast speeds up to 3.60 Gbps and enhanced network capacity with less interference.
Equipped with 5 RJ‑45 ports including a 2.5GbE uplink/downlink and PoE support, it allows wired and wireless connections for laptops, phones, and VoIP devices. Featuring internal antennas, Bluetooth 5, SD-WAN, WPA3 encryption, and MU-MIMO, the AP‑605R ensures robust and reliable communication.
Ideal for IT teams managing distributed workforces, it is supported via Aruba Central and delivers enterprise-grade networking from a compact, desktop form factor. It includes AI-powered network optimization and full compliance with global 6 GHz regulations.
| Specification | Details |
|---|---|
| Model Number | R8N09A#ABA |
| Product Series | Aruba 600R Series |
| Wireless Standard | IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6E) |
| Wi-Fi Bands | 2.4 GHz, 5 GHz, 6 GHz |
| Max Wireless Speed | 3.60 Gbit/s |
| MIMO / MU-MIMO | 2x2 MIMO, Multi-User MIMO |
| Beamforming | Yes |
| Bluetooth | Bluetooth 5 |
| Ports | 5 x RJ‑45 (1 x 2.5GbE, 1 x 1GbE uplink, 3 x 1GbE downlink) |
| PoE Support | Yes (PoE PD) |
| USB Port | USB 2.0 Type A |
| Antenna Type | Internal |
| Form Factor | Desktop |
| Power Consumption | 4.90 W |
| Encryption | WPA3-ENT, WPA3-SAE, WPA2-MPSK, WPA2, WPA |
| AI-Powered Features | Yes |
| Certifications | FCC, CE, UL/IEC/EN 60950, EN 60601, RoHS, etc. |
| Environmental Compliance | RoHS |
| Dimensions (HxWxD) | 1.6" x 8.9" x 5.9" |
| Weight | 1.98 lb |
| Package Contents | AP‑605R, 48V/5W DC Power Adapter |
| Warranty | Limited Lifetime |
