Description
Empower remote workers and small branch environments with the HPE Aruba Networking AP-605R (JP), a high-performance Wi-Fi 6E remote access point. Part of the 600R Series, this tri-band AP supports the 2.4 GHz, 5 GHz, and 6 GHz bands with dual 2x2 MIMO radios delivering up to 3.6 Gbps aggregate throughput.
With integrated omni-directional antennas, a 2.5 Gbps Ethernet uplink/downlink port, multiple 1 Gbps ports, and support for optional CAT 12 LTE backup, the AP-605R ensures always-on connectivity. Built-in Bluetooth 5 and Zigbee support IoT devices, while advanced features like Zero Touch Provisioning, Dynamic Segmentation, WPA3 encryption, and HPE Aruba Networking Central cloud management simplify secure deployment and control.

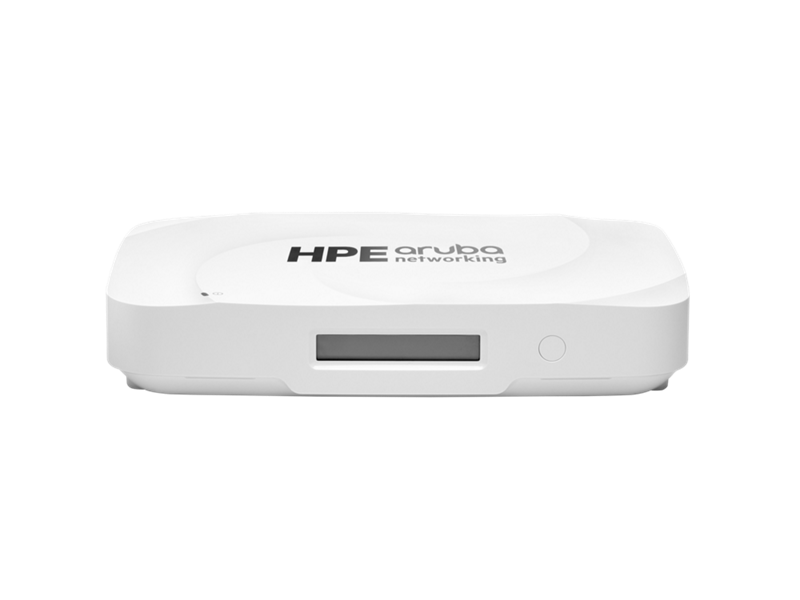

This Japanese model (R8N08A) is designed for horizontal desktop placement and is ideal for microbranches, temporary deployments, and mission-critical remote work scenarios.
| Specification | Details |
|---|---|
| Product Number | R8N08A |
| Wi-Fi Standards | Wi-Fi 6E (802.11ax); Tri-band: 2.4GHz, 5GHz, 6GHz |
| MIMO Configuration | 2x2 MIMO per band |
| Max Data Rate | Up to 3.6 Gbps (combined peak rate) |
| Antenna Type | Integrated omni-directional (optimized for desktop mount) |
| Peak Antenna Gain | 5.5 dBi (2.4 GHz / 5 GHz / 6 GHz) |

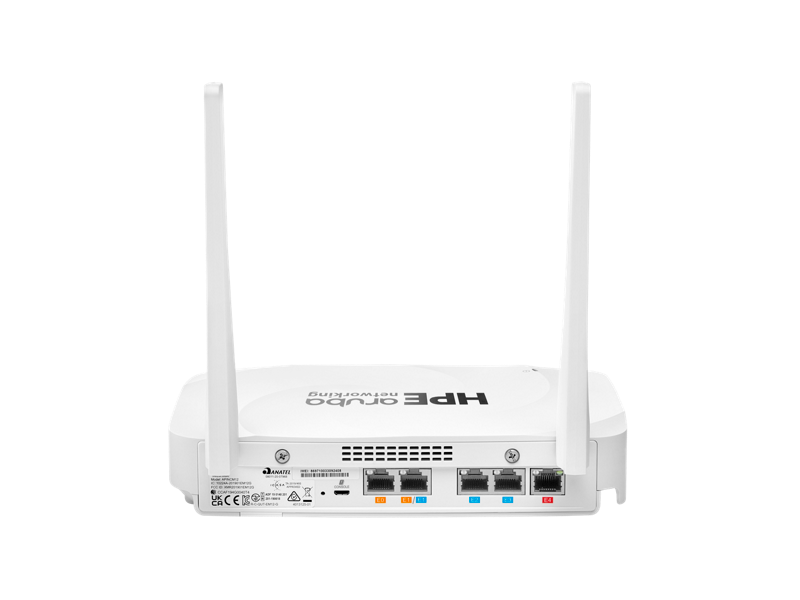

| Wired Ports | 1x 2.5GbE up/downlink (RJ-45), 1x 1GbE uplink, 3x 1GbE downlink |
| Power Input | 48V DC / 5W input; Max power consumption: 40W |
| Idle Power | 4.9W |
| Optional LTE Module | CAT 12 with antennas (for backup or primary LTE connectivity) |
| Bluetooth & IoT Support | Bluetooth 5, Zigbee (802.15.4), USB Type-A port |
| Security | WPA3, Enhanced Open, TPM, Dynamic Segmentation, PEF firewall |
| Mounting | Desk-mounted (no external mount required) |
| Management | HPE Aruba Networking Central cloud-based management |
| Warranty | Limited lifetime hardware warranty |
