Description

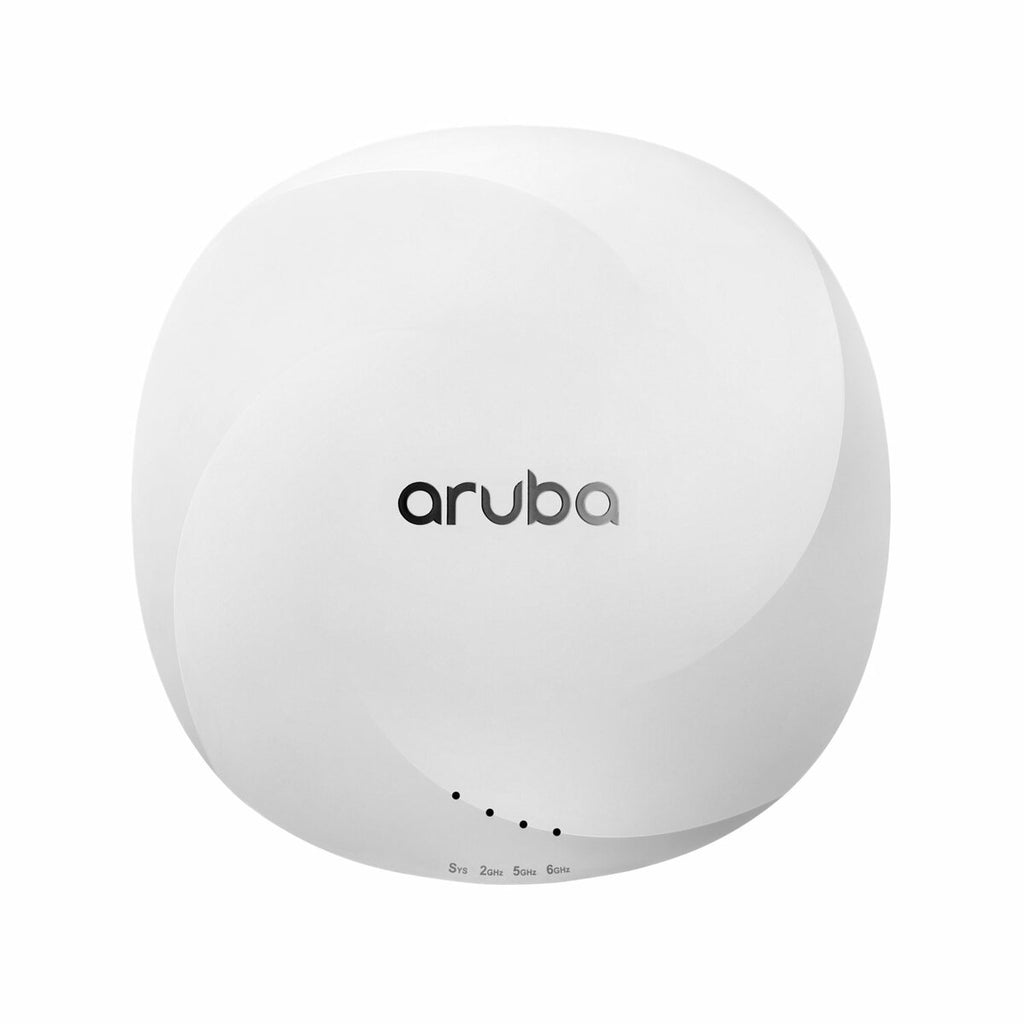

Deliver blazing-fast wireless connectivity and enhanced user experiences with the HPE Aruba Networking AP-615 (US). This tri-band dual-radio access point leverages Wi-Fi 6E to unlock the new 6 GHz spectrum, adding up to 1200 MHz of capacity for bandwidth-intensive applications like HD video and AR/VR. With a compact form factor, built-in GPS for indoor location accuracy, and low power draw from standard PoE, the AP-615 is a versatile and cost-effective solution for dense campus environments.
The AP-615 features software-programmable radios that can operate on any two bands among 2.4 GHz, 5 GHz, and 6 GHz, allowing deployment flexibility and seamless multi-AP coverage. With built-in BLE and Zigbee radios for IoT support, and advanced security protocols like WPA3, this access point is future-ready. Whether you’re upgrading your current infrastructure or deploying a new network, the AP-615 delivers exceptional performance and efficiency with zero-touch provisioning and cloud management support.
| Specification | Details |
|---|---|
| Model | HPE Aruba Networking AP-615 (US) |
| Part Number | R7J50A |
| Wi-Fi Standard | Wi-Fi 6E (802.11ax) |
| Radio Configuration | Dual Radio, Tri-Band (2.4 GHz / 5 GHz / 6 GHz) |
| MIMO Configuration | 2x2 MU-MIMO |
| Max Data Rate | Up to 3.6 Gbps (combined) |
| Antenna Type | Integrated downtilt omni-directional antennas |
| Antenna Gain | 2.8 dBi (2.4 GHz), 4.5 dBi (5 GHz, 6 GHz) |

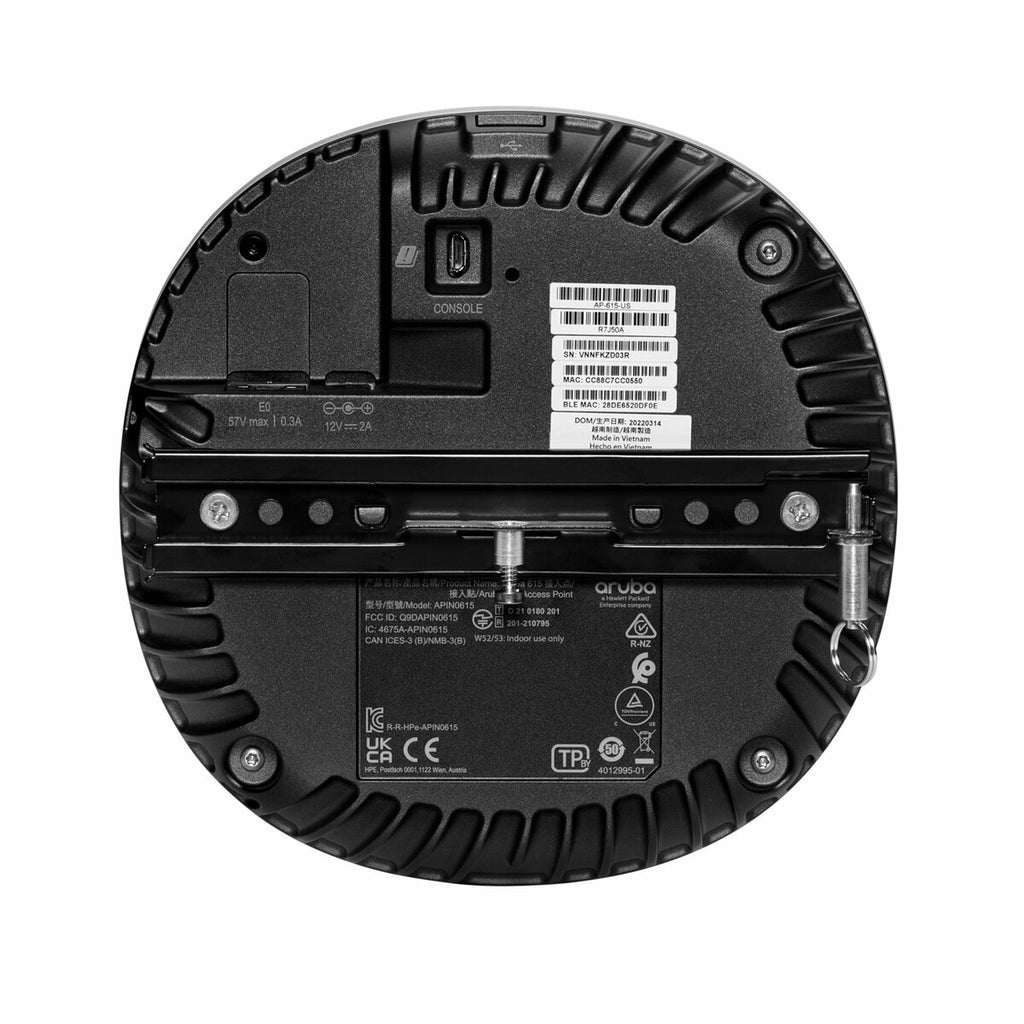

| Ports | 1x RJ-45 Ethernet, USB 2.0 Type A, Micro-B USB Console, DC input |
| Bluetooth/Zigbee | BLE 5.0 and Zigbee (802.15.4) |
| Mounting | Pre-installed bracket, compatible with optional mount kits |
| Location Services | Built-in GPS, Open Locate, Fine Time Measurement |
| Input Power | DC or PoE (802.3af Class 3) |
| Max Power Consumption | 20.9W (worst-case, PoE); 18.2W (DC) |
| Certifications | UL2043, WPA3, Wi-Fi 6E Certified, Bluetooth SIG, CE, FCC |
| Security Features | WPA3, Enhanced Open (OWE), WPA2/WPA, CNSA |
| Dimensions | 2 x 7.9 x 7.2 in (HxWxD) |
| Weight | 1.59 lbs |
| Deployment | Indoor Campus, Ceiling/Wall Mount |
