Description
Next-Gen Tri-Band Connectivity with Wi-Fi 6E for Enterprise Campuses

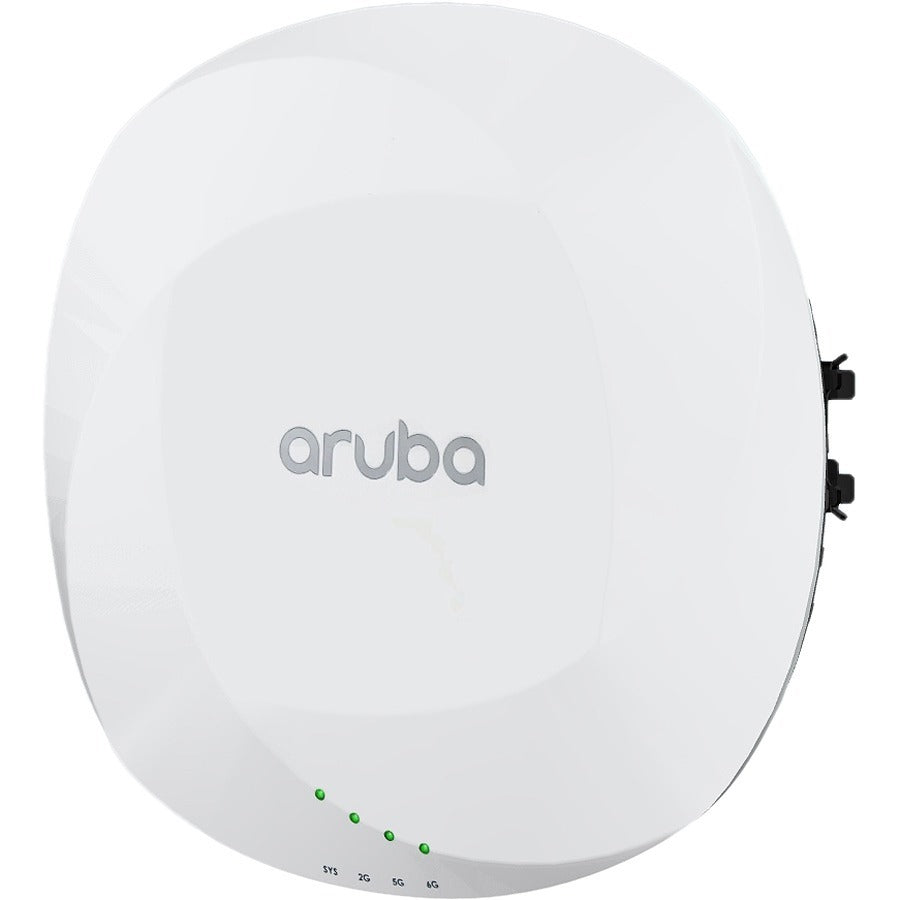

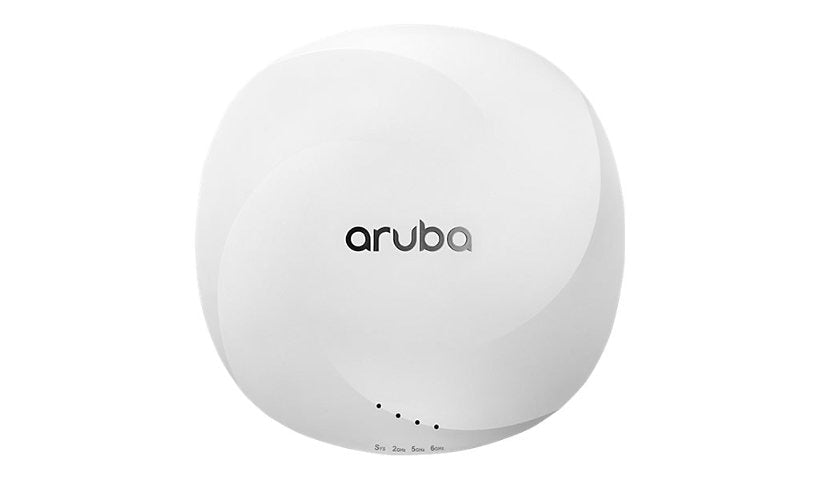

Empower your enterprise with the HPE Aruba Networking AP-615 (US) TAA Campus Access Point, purpose-built for high-density environments like universities, large offices, and government facilities. This TAA-compliant dual-radio tri-band AP supports 2x2 MIMO operation across 2.4 GHz, 5 GHz, and 6 GHz bands, delivering blazing-fast performance up to 3.6 Gbps and expanded capacity via Wi-Fi 6E.
Engineered with integrated antennas, ZigBee, and Bluetooth Low Energy (BLE), the AP-615 offers seamless IoT integration and fine-tuned user experiences. Built-in GPS and Fine Time Measurement (FTM) enable precise indoor location awareness. Its compact, low-power design supports deployment with standard PoE (802.3af), making it ideal for scalable, cost-efficient campus deployments.
| Specification | Details |
|---|---|
| Model | HPE Aruba Networking AP-615 (US) TAA |
| Part Number | R7J55A |
| Radio Bands | Tri-band (2.4 GHz, 5 GHz, 6 GHz) – Wi-Fi 6E |
| Max Data Rate | Up to 3.6 Gbps |
| Wi-Fi Standard | 802.11a/b/g/n/ac/ax, Wi-Fi CERTIFIED 6E |
| MIMO Configuration | 2x2 MIMO per band |
| Antennas | Integrated omni-directional, downtilt; peak gain: 4.6dBi (2.4GHz), 7.0dBi (5GHz), 6.3dBi (6GHz) |
| IoT Support | ZigBee, Bluetooth LE, 802.15.4 |
| Compliance | TAA Compliant, FCC/ISED, CE, UL2043, RED, EMC, LVD |
| Security | WPA3, WPA2, Enhanced Open (OWE), CNSA, WPA-Enterprise, WPA-Personal |
| Location Services | GPS, Fine Time Measurement, Open Locate support |
| Power Input | 48V PoE (802.3af) or 12V DC |
| Power Consumption | DC: 12.5W/18.2W, PoE: 14.7W/20.9W (with USB load) |
| Ports | 2x Ethernet RJ-45, USB 2.0 Type-A, DC power input, Kensington slot |
| Mounting | Pre-installed bracket (compatible with optional kits) |
| Dimensions | 2 x 7.9 x 7.2 in (5.08 x 20.1 x 18.3 cm) |
| Weight | 1.59 lb (0.72 kg) |
