Description

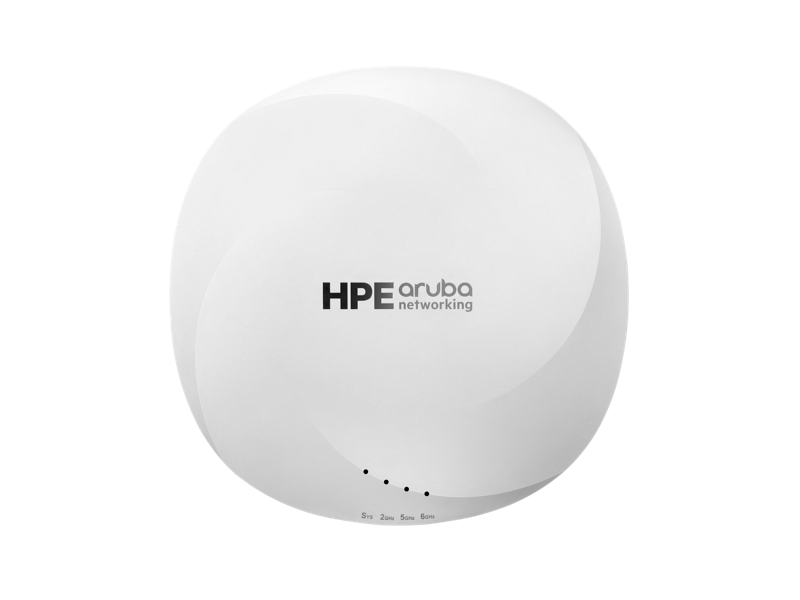

The HPE Aruba Networking AP-615 (RW) is part of the 610 Series Campus Access Points, designed to unlock the full potential of Wi-Fi 6E with dual-radio tri-band capability. This eco-friendly 10-pack bundle includes internal omni-directional antennas optimized for efficient indoor deployment across the 2.4 GHz, 5 GHz, and newly available 6 GHz bands.
With support for up to 3.6 Gbps peak throughput, the AP-615 enhances performance for bandwidth-intensive applications such as HD video and AR/VR. The dual radios are software-programmable for flexible deployment across any two Wi-Fi 6E bands. Built-in GPS and fine time measurements enable location-aware functionality, ideal for indoor environments where precision and coverage are critical.
Ideal for modern enterprise, education, or hospitality networks, the AP-615 supports 802.11ax (Wi-Fi 6E), intelligent power monitoring, Bluetooth/Zigbee IoT connectivity, and advanced features such as ClientMatch and zero-touch provisioning — all in a compact, PoE-powered form factor.
| Specification | Details |
|---|---|
| Product Number | S3J33A |
| Model Name | HPE Aruba Networking AP-615 (RW) 10-Pack |
| Wi-Fi Standard | Wi-Fi 6E (802.11ax) |
| Radios | Dual-radio (2x2 MIMO); configurable for 2.4 GHz, 5 GHz, or 6 GHz |
| Peak Data Rate | Up to 3.6 Gbps |
| Antenna Type | Integrated downtilt omni antennas |
| Antenna Gain | 2.4 GHz: 2.8 dBi5 GHz: 4.5 dBi6 GHz: 4.5 dBi |
| Power Options | PoE (802.3af Class 3), or 12V DC |
| Max Power Consumption | PoE: 14.7W (typical) / 20.9W (max)DC: 12.5W (typical) / 18.2W (max) |
| Ports | 1x Ethernet RJ-45 (E0), USB 2.0 Type-A, DC input, serial console (micro-B) |
| IoT Radios | Bluetooth 5.0, Zigbee (802.15.4) |
| Location Capabilities | Built-in GPS, fine time measurement, Open Locate support |
| Mounting | Integrated mounting bracket; mount kits sold separately |
| Certifications | Wi-Fi CERTIFIED 6E, WPA3, UL2043, CE, FCC, EN60601, and more |
| Operating Environment | Indoor |
| Dimensions (H x W x D) | 5.1 x 20.1 x 18.3 cm |
| Weight | 0.72 kg per unit |
| Bundle Contents | 10x AP-615 Units, 1x JY728A Console Adapter Cable |
| Warranty | Limited Lifetime |
