Description

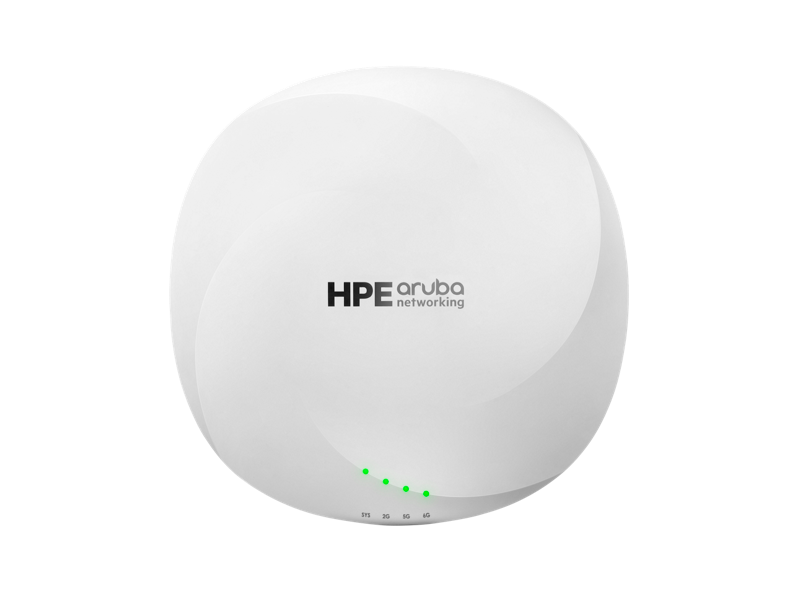

The HPE Aruba Networking AP‑634 (US) is part of the 630 Series Campus Access Points designed for next-gen Wi-Fi environments. Featuring tri-radio 2x2:2 MIMO support across the 2.4 GHz, 5 GHz, and 6 GHz bands, the AP‑634 delivers ultra-fast, secure, and scalable Wi-Fi 6E connectivity with external antenna support. Engineered for indoor deployments, this access point enhances capacity for dense environments with advanced certifications, PoE support, Bluetooth 5.0, and Zigbee integration.
Ideal for large campuses and high-density enterprise networks, the AP-634 ensures low-latency wireless coverage and seamless device roaming. It also supports flexible management and mounting, future-proofing your wireless infrastructure with robust performance, security, and spectrum efficiency.
| Specification | Details |
|---|---|
| Model | HPE Aruba Networking AP‑634 (US) |
| Wi‑Fi Standard | Wi‑Fi 6E (802.11ax); tri-radio: 2.4 GHz, 5 GHz, and 6 GHz concurrent |
| Antenna Interface | RP-SMA x4 (external antennas for 2.4, 5, and 6 GHz radios) |
| MIMO Configuration | 2x2:2 per band |
| Ethernet Ports | 2x RJ-45 (100/1000/2500BASE-T), auto-sensing |
| Other Ports | USB 2.0 (Type A), DC power interface, reset button |
| Wireless Features | BLE 5.0, Zigbee (802.15.4), WPA3, Enhanced Open, Wi-Fi Agile Multiband |
| Certifications | Wi-Fi CERTIFIED 6E, UL2043, FCC/ISED, CE, WPA2/WPA3 Enterprise & Personal |
| Power Options | 48V PoE or 12V DC input |
| Power Consumption | 23.8W (PoE), 20.7W (DC) – worst case |
| Heat Dissipation | 66.3 BTU/hr (PoE), 57.9 BTU/hr (DC) |
| Dimensions (W x D x H) | 220 x 220 x 50 mm (8.66 x 8.66 x 1.96 in) |
| Weight | 1300 g (2.86 lb) |

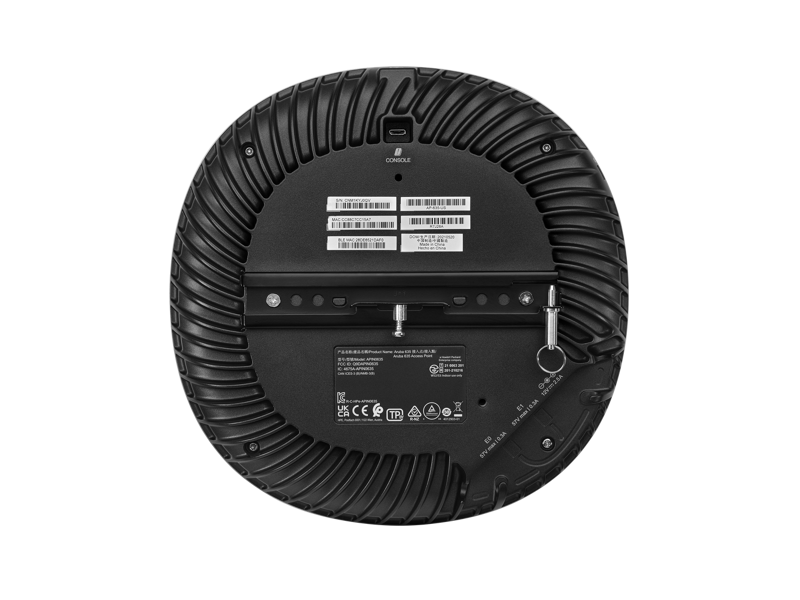

| Mounting | Preinstalled bracket; optional mount kits available (sold separately) |
| Warranty | Limited lifetime warranty |
| Use Case | Indoor campus deployment; U.S. availability only |
