Description

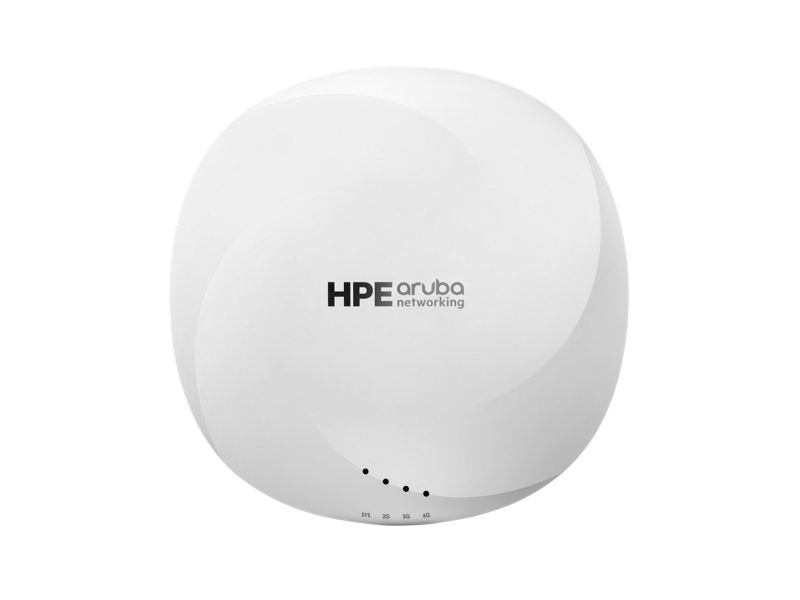

The HPE Aruba Networking AP-635 (RW) is a next-generation tri-radio Wi-Fi 6E access point built for high-performance campus networks. Featuring concurrent 2.4 GHz, 5 GHz, and 6 GHz operation, the AP-635 delivers up to 3.9 Gbps aggregate throughput and up to seven 160 MHz channels—ideal for low-latency, high-bandwidth applications like HD video and AR/VR.
Designed with integrated omni-directional internal antennas, ultra tri-band filtering to eliminate interference between 5 GHz and 6 GHz bands, and advanced features like ClientMatch and Intelligent Power Monitoring, the AP-635 ensures optimized performance, enhanced user experience, and high availability with hitless Ethernet and power failover.
Backed by a limited lifetime warranty, this device supports BLE 5.0, Zigbee, and flexible deployment options in controller-managed or controllerless environments.
| Specification | Details |
|---|---|
| Model | HPE Aruba Networking AP-635 (RW) |
| Part Number | R7J27A |
| Wi-Fi Standard | Wi-Fi 6E (IEEE 802.11ax) |
| Radios | Tri-radio (2.4 GHz, 5 GHz, 6 GHz) |
| MIMO | 2x2 MIMO per band |
| Max Data Rate | Up to 3.9 Gbps aggregate throughput |
| Antenna Type | Dual-band omni-directional internal antennas |
| Antenna Gain | 4.6 dBi (2.4 GHz), 7.0 dBi (5 GHz), 6.3 dBi (6 GHz) |
| PoE Support | 802.3af/at/bt, 48 VDC (nominal) |
| Ethernet Ports | 2x RJ-45 (10/100/1000/2500BASE-T), Smart Rate, NBase-T |
| Bluetooth/Zigbee | BLE 5.0 and Zigbee (802.15.4) supported |
| Power Consumption | 23.8W (PoE), 20.7W (DC) worst case |
| Heat Dissipation | 66.3 BTU/hr (PoE), 57.9 BTU/hr (DC) |
| Mounting | Pre-installed bracket (compatible with optional kits) |
| Operating Environment | Indoor only |
| Certifications | Wi-Fi CERTIFIED 6E, UL2043, CE, FCC, RED, EMC, WPA3 |
| Regulatory Compliance | IEC/EN 62368-1, EN 60601-1-1, EN60601-1-2 |
| Weight | 1300g |
| Dimensions | 220mm (W) x 220mm (D) x 50mm (H) |
| Differentiator | Available everywhere except US, Israel, Egypt, and Japan |
| Warranty | Limited Lifetime |
