Description

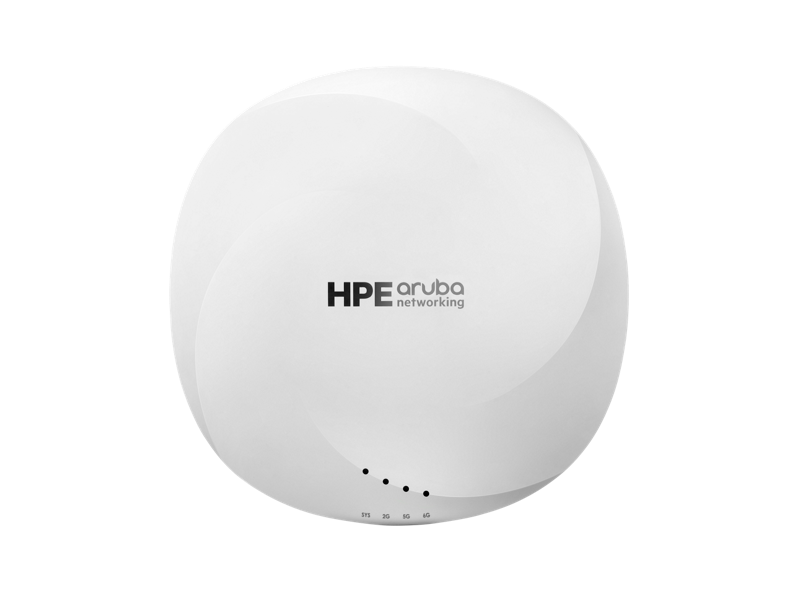

The HPE Aruba Networking AP-635 is a next-generation tri-radio Wi-Fi 6E access point that extends wireless connectivity into the 6 GHz band for superior speed, capacity, and coverage. Designed for indoor low-power environments, this AP offers 2x2 MIMO across 2.4 GHz, 5 GHz, and 6 GHz bands—delivering an aggregate data rate of up to 3.9 Gbps.
Featuring advanced tri-band filtering to minimize interference between bands, the AP-635 ensures seamless and reliable performance for high-bandwidth applications like HD video, VR/AR, and collaboration tools. Equipped with dual Smart Rate Ethernet ports, it supports hitless failover for both data and power, ensuring business continuity.
Built with integrated omni-directional antennas and optimized for ceiling mounting, the AP-635 is a TAA-compliant solution, ideal for campus and enterprise environments requiring strong regulatory compliance and next-gen performance.
| Specification | Details |
|---|---|
| Model Number | R7J33A |
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6E), 2.4 GHz, 5 GHz, 6 GHz concurrent radios |
| Radios | Tri-radio 2x2 MIMO |
| Max Data Rate | 3.9 Gbps aggregate |
| Antenna | Integrated omni-directional (2x2 MIMO): 2.9 dBi (2.4GHz), 4.9 dBi (5GHz), 4.3 dBi (6GHz) |
| Input Voltage | 12 VDC (+/-5%) or 48 VDC (nominal PoE) |
| Power Consumption | 23.8 W (PoE), 20.7 W (DC); supports up to 5W USB |
| Heat Dissipation | 66.3 BTU/hr (PoE), 57.9 BTU/hr (DC) |
| Network Ports | 2x RJ-45 Smart Rate 1G/2.5G (NBase-T, 802.3bz), PoE++ support |
| Mounting | Pre-installed bracket (compatible with mount kits, sold separately) |
| Dimensions | 220 mm x 220 mm x 50 mm |
| Weight | 1.3 kg (2.87 lbs) |
| Certifications | Wi-Fi CERTIFIED 6E, TAA Compliant, UL2043, FCC/ISED, CE, Bluetooth SIG |
| Coverage | Indoor, Tri-radio: 2.4 GHz, 5 GHz, 6 GHz |
| Connectivity | Wi-Fi 6E, BLE 5.0, Zigbee (802.15.4) |
| Warranty | Limited lifetime warranty |
