Description

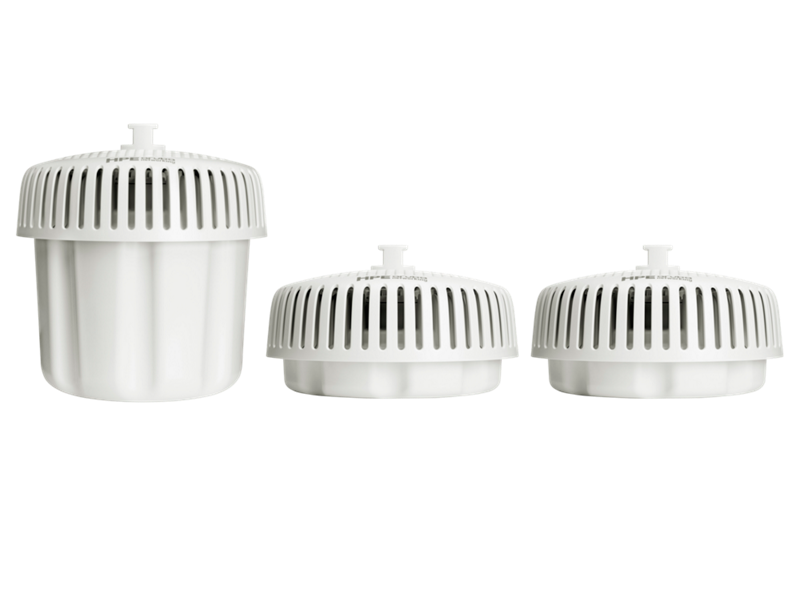

The HPE Aruba Networking AP-675 (EG) is part of the robust Aruba 670 Series, delivering high-performance tri-radio Wi‑Fi 6E connectivity in environmentally challenging outdoor locations. This model supports the 2.4GHz, 5GHz, and 6GHz bands, providing up to 3.9 Gbps aggregate data throughput for demanding enterprise and industrial IoT deployments.
With internal omni-directional antennas, integrated high-power Bluetooth and Zigbee radios, and support for advanced technologies like OFDMA, MU-MIMO, and Target Wake Time (TWT), the AP-675 offers reliable, high-efficiency wireless and IoT connectivity. Designed for rugged environments, it includes an embedded GPS receiver, IP66/67 environmental rating, and dynamic frequency coordination.
Ideal for outdoor enterprise wireless, location-based services, or industrial IoT, the AP-675 ensures fast, secure, and scalable connectivity with a limited lifetime warranty and enhanced security via WPA3, TPM, and Policy Enforcement Firewall (PEF).
| Specification | Details |
|---|---|
| Product Number | S0P54A |
| Wi-Fi Standard | Wi-Fi 6E (802.11ax) |
| Radios | Tri-radio: 2.4GHz, 5GHz, 6GHz concurrent |
| MIMO Configuration | 2x2:2 per band |
| Max Aggregate Throughput | Up to 3.9 Gbps |
| Antenna Type | Internal Omni-directional |
| Antenna Gain | 2.4GHz: 3.8 dBi, 5GHz: 5.7 dBi, 6GHz: 5.9 dBi, BLE/Zigbee: 4.5 dBi |
| Ports | 1x 2.5GbE RJ-45, 1x 1GbE SFP |
| Power Input | IEEE 802.3bt PoE or direct DC (optional power supply) |
| Max Power Consumption | Up to 45.5W |
| Mounting | Pre-installed mounting bracket (kits sold separately) |
| Security | WPA3, Enhanced Open, TPM, Policy Enforcement Firewall |
| IoT Radios | Integrated high-power Bluetooth and Zigbee |
| Environmental Rating | Outdoor, ruggedized; temperature-hardened |
| Regulatory Compliance | FCC/ISED, CE, RED 2014/53/EU, IEC/EN 62368-1, and more |
| Certifications | Wi-Fi Alliance, Bluetooth SIG, Ethernet Alliance (PoE PD Device Class 6) |
| Special Feature | Embedded GPS, Standard Power (SP) AFC-enabled |
| Client Capacity | Up to 512 clients per radio; 16 BSSIDs per radio (8 for 6GHz) |
| Warranty | Limited Lifetime Warranty |
