Description

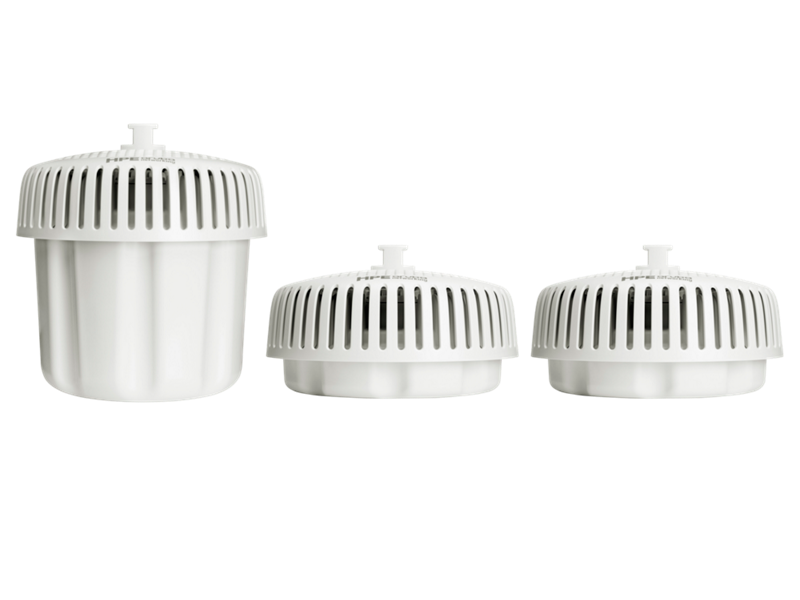

Bring high-speed connectivity to the most challenging outdoor environments with the HPE Aruba Networking AP-675 (USF1), part of the 670 Series of ruggedized access points. Equipped with tri-radio 2x2:2 MIMO and Wi-Fi 6E support, it delivers blazing-fast wireless performance up to 3.9 Gbps aggregate throughput across the 2.4 GHz, 5 GHz, and 6 GHz bands.
Ideal for industrial and enterprise-grade IoT environments, this TAA-compliant outdoor AP features internal omni-directional antennas, built-in GPS, high-power Bluetooth/Zigbee radios, and simplified wired connectivity with a 2.5 GbE port and 1 GbE SFP port.
Enhanced security is built-in with WPA3, Policy Enforcement Firewall (PEF), and TPM for secure key storage, while IPM and TWT ensure energy efficiency. Designed for extreme conditions, the AP-675 is your go-to solution for outdoor wireless expansion.
| Specification | Details |
|---|---|
| Product Number | S0Q35A |
| AP Type | Outdoor, Tri-Radio 2x2:2 MIMO Wi-Fi 6E |
| Radios | 2.4GHz (574 Mbps), 5GHz (1.2 Gbps), 6GHz (2.4 Gbps) |
| Max Aggregate Throughput | Up to 3.9 Gbps |
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6E) |
| Antenna Type | Internal Omni-directional (3.8 dBi @2.4GHz, 5.7 dBi @5GHz, 5.9 dBi @6GHz) |
| BLE/Zigbee Antenna | Integrated omni antenna (peak gain: 4.5 dBi) |
| Ports | (1) 2.5 GbE RJ-45, (1) 1 GbE SFP |
| Power Input | IEEE 802.3bt PoE or optional DC input |
| Max Power Consumption | Up to 45.5W |
| Environmental Rating | Outdoor, temperature hardened |
| Mounting | Pre-installed bracket, compatible with optional mount kits |
| Security | WPA3, Enhanced Open, TPM, PEF, Dynamic Segmentation |
| Certifications | Wi-Fi Alliance, Bluetooth SIG, Ethernet Alliance |
| Regulatory Compliance | FCC, CE, RED, EMC, LVD, EN 60601-1-1/-2, IEC/EN 62368-1 |
| Special Features | GPS, Bluetooth, Zigbee, IPM, AIC, TWT, ClientMatch |
| Client Support | Up to 512 clients per radio |
| BSSID Support | Up to 16 BSSIDs per radio (8 for 6GHz) |
| Warranty | Limited Lifetime Warranty |
| TAA Compliance | Yes |
| Availability | US Only |
