Description

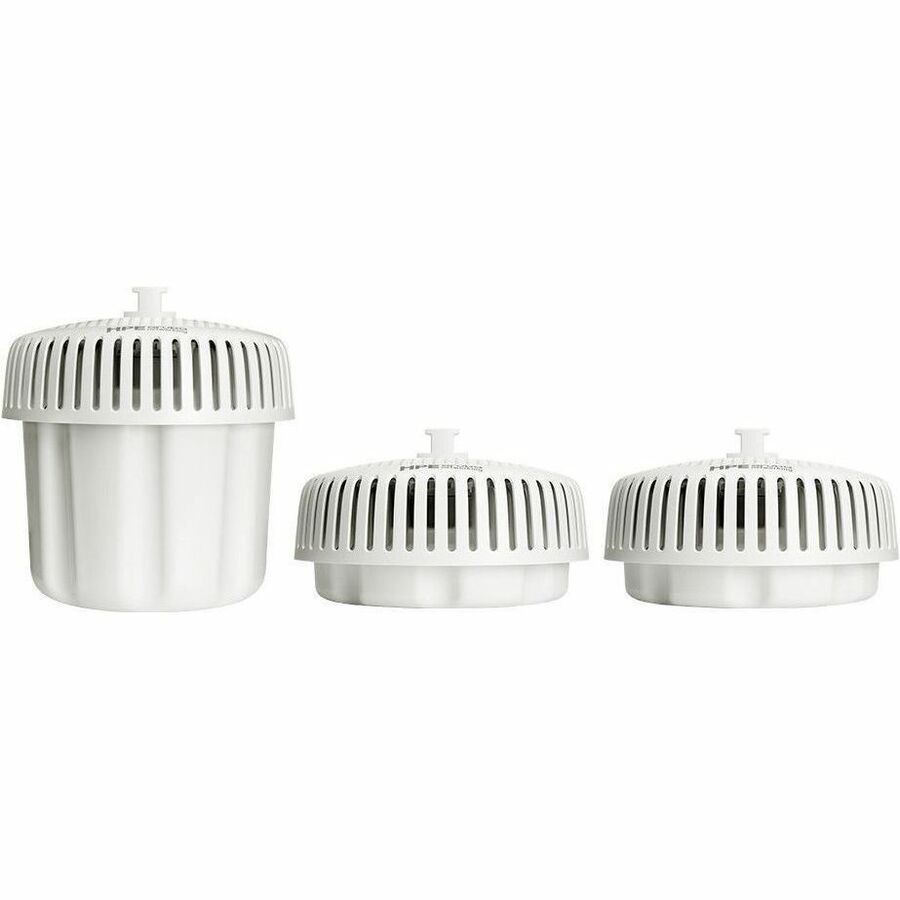

The HPE Aruba Networking AP‑675EX (JP) is a high-performance, tri-radio Wi‑Fi 6E access point designed to deliver robust wireless connectivity in extreme and hazardous outdoor environments. Featuring internal omni-directional antennas, it supports concurrent operation in 2.4 GHz, 5 GHz, and 6 GHz bands with aggregate speeds up to 3.9 Gbps.
Certified for Class 1 Division 2 and ATEX Zone 2, the AP‑675EX (JP) is ideal for industrial deployments in oil & gas fields, mining sites, and transport infrastructure. It includes integrated Bluetooth and Zigbee radios for Industrial IoT, a built-in GPS receiver for self-location, and dual wired uplink options: 2.5 GbE and 1 GbE SFP.
Engineered with rugged weatherproofing and enhanced security (WPA3, PEF, TPM), this access point ensures high reliability and secure connectivity where it's needed most.
| Specification | Details |
|---|---|
| Product Number | S0Q52A |
| Wi-Fi Standard | Wi-Fi 6E (IEEE 802.11ax) |
| Radio Configuration | Tri Radio 2x2 MIMO (2.4 GHz, 5 GHz, 6 GHz) |
| Max Aggregate Throughput | Up to 3.9 Gbps |
| Antenna Type | Internal Omni-Directional |
| Antenna Gain | 2.4 GHz: 3.8 dBi 5 GHz: 5.7 dBi 6 GHz: 5.9 dBi BLE/Zigbee: 4.5 dBi |
| HazLoc Certifications | Class 1 Division 2, ATEX Zone 2 |
| Power Options | IEEE 802.3bt PoE or Direct DC (optional power supply) |
| Max Power Consumption | 45.5W |
| Ethernet Ports | 1x 2.5 GbE RJ-45 (auto-sensing) 1x 1 GbE SFP fiber port |
| Client Support | Up to 512 clients per radio; up to 16 BSSIDs per radio |
| Security Features | WPA3, Enhanced Open, TPM, PEF |
| Location Awareness | Embedded GPS receiver |
| IoT Support | Integrated Bluetooth and Zigbee radios |
| Mounting | Preinstalled bracket, mount kits sold separately |
| Operating Temperature | Outdoor, extreme environment rated |
| Warranty | Limited Lifetime Warranty |
