Description

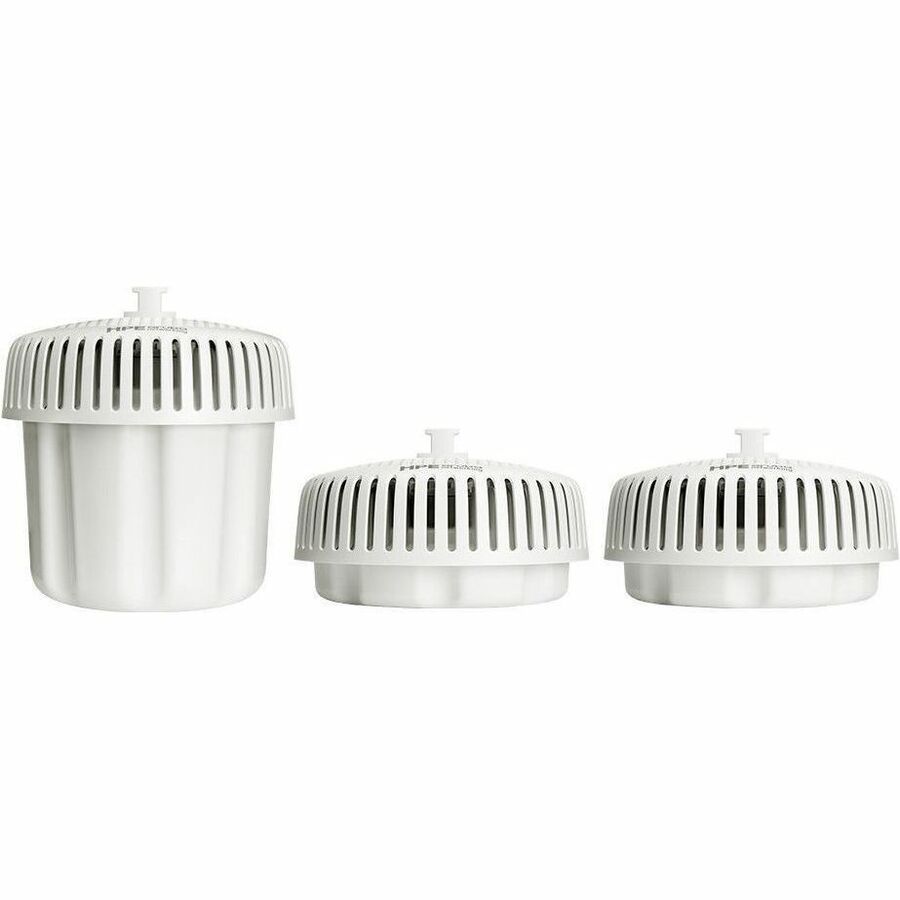

The HPE Aruba Networking AP-675EX (US) is a rugged, high-performance Wi-Fi 6E access point designed for the most extreme hazardous environments, including oil rigs, industrial manufacturing, mining, and transport facilities. As part of the 670 Series, the AP-675EX is compliant with Class 1 Division 2 and ATEX Zone 2, ensuring reliable performance in areas exposed to flammable gases, vapors, or dust.
Featuring tri-radio 2x2:2 MIMO with internal omni-directional antennas, the AP delivers aggregate data rates up to 3.9 Gbps, supporting high-definition video and AR/VR with low latency. It includes integrated high-power Bluetooth and Zigbee radios for seamless Industrial IoT deployment, self-locating GPS functionality, and secure connectivity via WPA3 and TPM-based key protection.
Engineered for resilience, this AP supports temperature extremes and provides secure, dynamic segmentation, end-to-end policy enforcement, and intelligent power monitoring, making it ideal for mission-critical outdoor networking.
| Specification | Details |
|---|---|
| Product Number | S0Q50A |
| Form Factor | Outdoor, Hazardous Location (HazLoc), Internal Omni Antenna |
| Wi-Fi Standard | Wi-Fi 6E (IEEE 802.11ax) |
| Radios | Tri-radio: 2.4GHz, 5GHz, 6GHz (concurrent) 2x2 MIMO |
| Max Aggregate Throughput | Up to 3.9 Gbps |
| Antenna Type | Internal Omni-Directional |
| Antenna Gain | 2.4 GHz: 3.8 dBi5 GHz: 5.7 dBi6 GHz: 5.9 dBiBLE/Zigbee: 4.5 dBi |
| Client Capacity | Up to 512 clients per radio, 16 BSSIDs per radio (8 for 6GHz) |
| Ethernet Ports | (1) 10/100/1000BASE-T RJ-45(1) 1GbE SFP Fiber Port |
| Input Power | IEEE 802.3bt PoE or direct DC (optional power supply) |
| Power Consumption | Max 45.5W |
| Security | WPA3, Enhanced Open, TPM, Policy Enforcement Firewall (PEF) |
| Bluetooth & Zigbee | Integrated high-power radios with AIC for interference reduction |
| Environmental Compliance | Class 1 Div 2, ATEX Zone 2, IEC/EN 62368-1, EN60601-1-1, RED, EMC |
| Mounting | Pre-installed bracket; compatible with mounting kits (sold separately) |
| Warranty | Limited Lifetime Warranty |
| Special Features | GPS-enabled self-location, Dynamic Segmentation, Intelligent Power Mgmt |
