Description

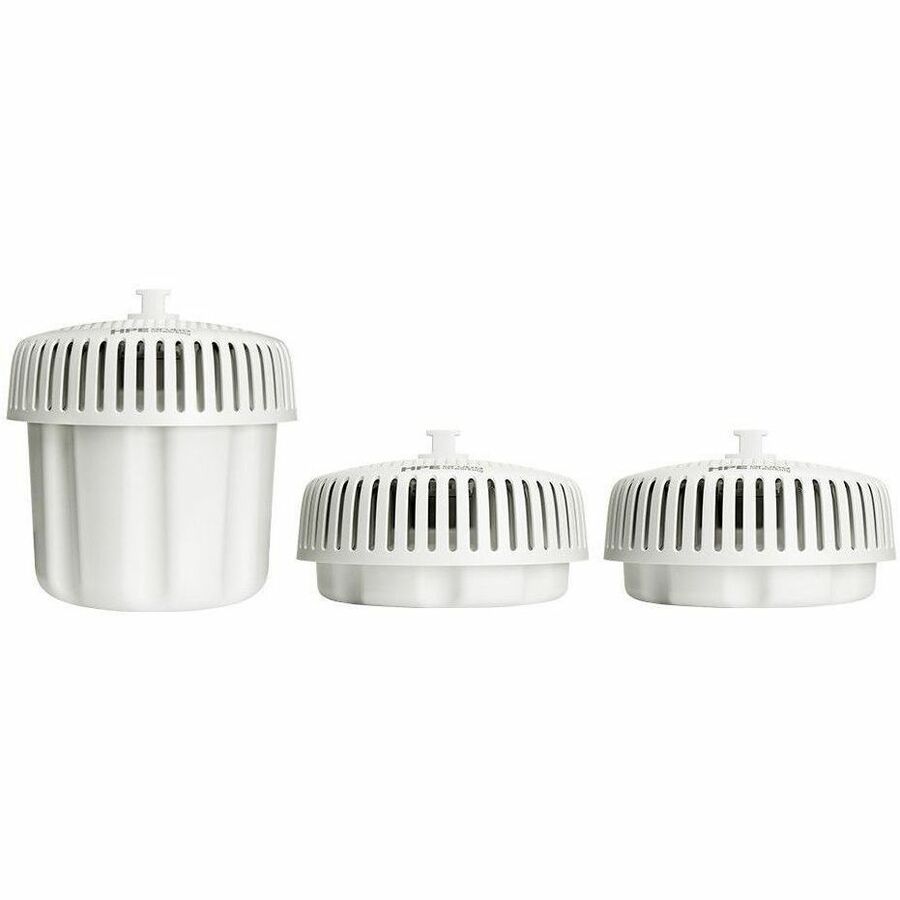

The HPE Aruba Networking AP-677 (JP) is a rugged tri-radio outdoor access point designed to deliver high-performance Wi-Fi 6E connectivity in environmentally challenging locations. Ideal for enterprise and industrial IoT deployments, this model supports the 2.4 GHz, 5 GHz, and 6 GHz bands concurrently, offering a combined data rate of up to 3.9 Gbps.
Engineered for durability and IoT readiness, the AP-677 includes internal directional antennas, integrated high-power Bluetooth and Zigbee radios, and enhanced security with WPA3 and Policy Enforcement Firewall (PEF). It features a 2.5 GbE uplink, 1 GbE SFP port, and an embedded GPS receiver, making it ideal for asset tracking, remote coverage, and latency-sensitive applications such as AR/VR and HD video streaming.
| Specification | Details |
|---|---|
| Product Number | S0P57A |
| Model | AP-677 (JP) |
| Wireless Standard | Wi-Fi 6E (IEEE 802.11ax) |
| Radios | Tri-radio (2.4GHz, 5GHz, 6GHz) concurrent |
| MIMO Configuration | 2x2:2 per band |
| Max Data Rate | Up to 3.9 Gbps aggregate |
| Antenna Type | Internal directional antennas |
| Antenna Gain | 2.4GHz: 6.9 dBi5GHz: 6.5 dBi6GHz: 6.9 dBiBLE/Zigbee: 4.5 dBi |
| Client Capacity | Up to 512 clients per radio, 16 BSSIDs per radio (8 for 6GHz) |
| Ports | 1x RJ-45 10/100/1000BASE-T1x SFP Fiber |
| Power Input | IEEE 802.3bt PoE or direct DC (optional PSU) |
| Power Consumption | Up to 45.5W |
| Security | WPA3, Enhanced Open, TPM, Dynamic Segmentation, PEF |
| Environmental | Weatherproof, temperature hardened, supports harsh outdoor conditions |
| Mounting | Integrated mounting bracket (kits sold separately) |
| Certifications | Wi-Fi Alliance, Bluetooth SIG, CE, FCC/ISED, RED, EMC, IEC/EN 62368-1 |
| Special Features | Embedded GPS, IPM, OFDMA, MU-MIMO, TWT, ClientMatch, AIC |
| Warranty | Limited Lifetime Warranty |
