Description

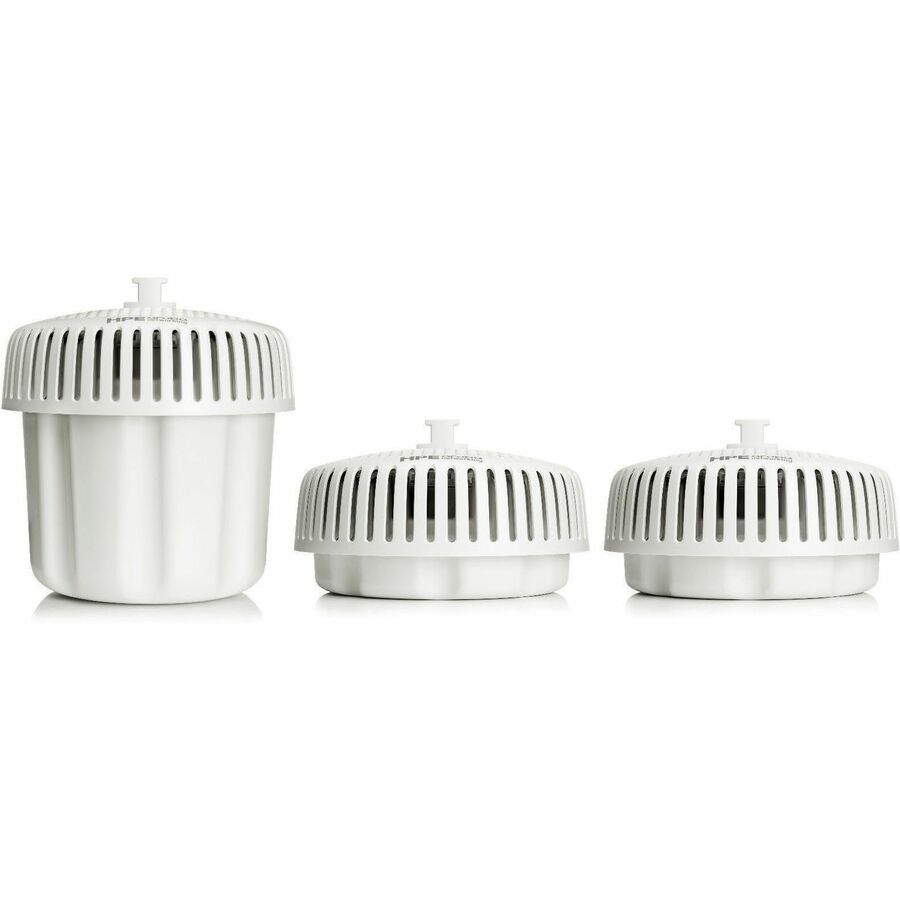

Bring ultra-fast, reliable Wi-Fi 6E to challenging outdoor environments with the HPE Aruba Networking AP-677 (IL). Designed to meet the demands of enterprise and industrial IoT deployments, the AP-677 delivers tri-radio 2x2:2 MIMO performance with up to 3.9 Gbps maximum aggregate throughput across the 2.4 GHz, 5 GHz, and 6 GHz bands.
Built to operate in extreme outdoor conditions, this access point features internal directional antennas, integrated Bluetooth and Zigbee radios, GPS support, and enhanced security features like WPA3 and TPM. With 2.5 GbE and 1 GbE SFP ports, it's ideal for smart campuses, industrial facilities, and outdoor enterprise networks.
| Specification | Details |
|---|---|
| Product Number | S0P58A |
| Model | AP-677 (IL) |
| Wi-Fi Standard | Wi-Fi 6E (802.11ax) |
| Radio Configuration | Tri-radio 2x2:2 MIMO (2.4 GHz, 5 GHz, 6 GHz concurrent) |
| Max Aggregate Throughput | Up to 3.9 Gbps |
| Antenna Type | Internal directional antennas |
| 2.4 GHz Antenna Gain | 6.9 dBi |
| 5 GHz Antenna Gain | 6.5 dBi |
| 6 GHz Antenna Gain | 6.9 dBi |
| BLE/Zigbee Antenna | Integrated omni-directional (4.5 dBi) |
| Ports | 1x 2.5GBASE-T RJ-45, 1x 1G SFP Fiber port |
| Mounting | Pre-installed mounting bracket (mount kits sold separately) |
| Power Options | IEEE 802.3bt PoE or direct DC (optional supply) |
| Max Power Consumption | Up to 45.5W |
| Rugged Features | Outdoor rated, weatherproof, supports extended temperature ranges |
| Security | WPA3, TPM, Policy Enforcement Firewall (PEF), Enhanced Open |
| Client Capacity | Up to 512 clients per radio |
| BSSIDs per Radio | Up to 16 (limited to 8 for 6 GHz) |
| Special Features | GPS, Target Wake Time (TWT), Intelligent Power Monitoring (IPM), AIC |
| Certifications | Wi-Fi Alliance, Bluetooth SIG, CE, FCC/ISED, EN 62368-1 |
| Warranty | Limited lifetime warranty |
