Description

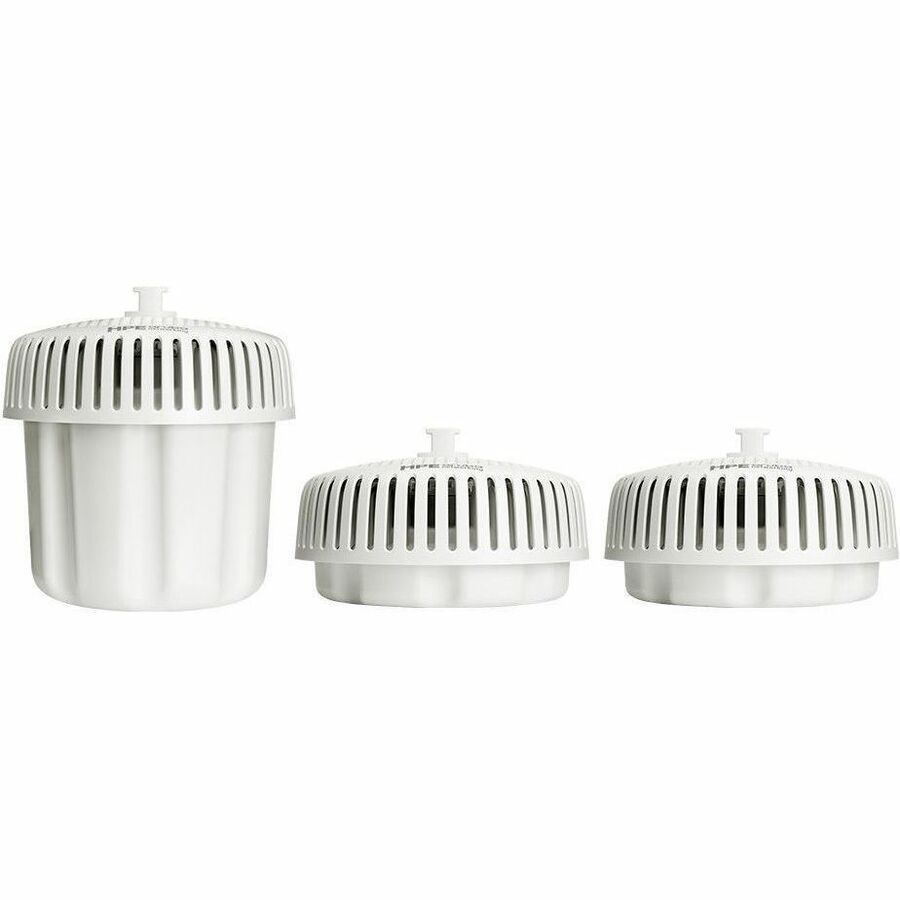

The HPE Aruba Networking AP-677 (RWF1) delivers ultra-fast, high-capacity Wi-Fi 6E performance in harsh outdoor environments. With tri-radio 2x2:2 MIMO and support for the 2.4 GHz, 5 GHz, and 6 GHz bands, this access point offers up to 3.9 Gbps aggregate throughput. Ideal for enterprise and industrial IoT deployments, it features ruggedized construction, built-in directional antennas, integrated high-power Bluetooth/Zigbee radios, and flexible uplink options including 2.5GbE and SFP fiber. The AP-677 supports Dynamic Segmentation, WPA3 security, embedded GPS for self-location, and intelligent power monitoring — making it perfect for modern, high-demand outdoor wireless networks.
| Specification | Details |
|---|---|
| Product Number | S0Q43A |
| Model | AP-677 (RWF1) |
| Wi-Fi Standard | Wi-Fi 6E (IEEE 802.11ax) |
| Radio Configuration | Tri Radio 2x2:2 (2.4GHz, 5GHz, 6GHz) |
| Max Data Rates | Up to 3.9 Gbps aggregate throughput |
| Antenna Type | Internal directional antennas |
| Antenna Gain | 2.4GHz: 6.9 dBi, 5GHz: 6.5 dBi, 6GHz: 6.9 dBi |
| BLE/Zigbee Antenna | Integrated omnidirectional, 4.5 dBi peak gain |
| Ports | (1) 10/100/1000BASE-T RJ-45, (1) SFP fiber port |
| Power Input | IEEE 802.3bt PoE or direct DC (via optional PSU) |
| Power Consumption | Up to 45.5W max |
| Client Capacity | Up to 512 clients per radio, 16 BSSIDs per radio (8 max on 6GHz) |
| Security | WPA3, Enhanced Open, TPM, Policy Enforcement Firewall |
| IoT Radios | Integrated high-power Bluetooth and Zigbee |
| Mounting | Preinstalled bracket for compatible mount kits (sold separately) |
| Environmental | Outdoor-rated, temperature-hardened, ruggedized for harsh conditions |
| Location Services | Embedded GPS for self-locating |
| Certifications | TAA, Wi-Fi Alliance, Bluetooth SIG, Ethernet Alliance, FCC/ISED, CE |
| Warranty | Limited lifetime warranty |
