Description

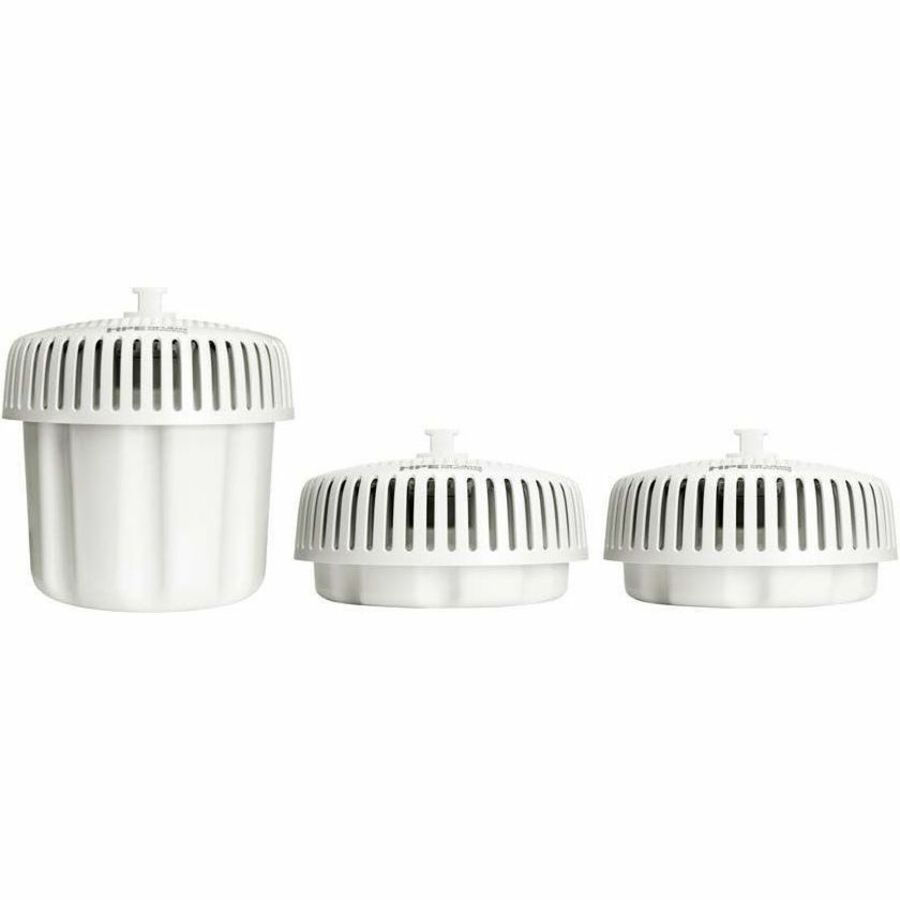

The HPE Aruba Networking AP-677 (USF1) is a rugged tri-radio Wi-Fi 6E outdoor access point engineered for high-performance wireless in environmentally challenging and hazardous locations. Designed to deliver up to 3.9 Gbps with tri-band 2x2 MIMO, it supports 6 GHz ultra-wide channels for high-bandwidth, low-latency applications such as AR/VR and 4K video.
This model includes built-in directional antennas and integrated high-power Bluetooth and Zigbee radios for robust IoT device connectivity. With self-locating GPS, dual uplinks (2.5GbE and 1GbE SFP), and ruggedized enclosures, the AP-677 is ideal for industrial and enterprise deployments needing secure, high-capacity outdoor networking with TAA compliance.
| Specification | Details |
|---|---|
| Model Number | S0Q44A |
| Wi-Fi Standard | Wi-Fi 6E (802.11ax), Tri Radio (2.4GHz, 5GHz, 6GHz) |
| MIMO Configuration | 2x2:2 per radio |
| Max Data Rate | Up to 3.9 Gbps aggregate |
| Antenna Type | Internal directional antennas (6.9 dBi @ 2.4/6 GHz, 6.5 dBi @ 5 GHz) |
| Bluetooth/Zigbee | Integrated high-power radios with 4.5 dBi peak gain |
| GPS Support | Yes, embedded GPS receiver |
| Ethernet Ports | 1x 2.5GbE (RJ-45), 1x 1GbE SFP |
| Power Input | IEEE 802.3bt PoE (Class 6), or optional DC power |
| Max Power Consumption | 45.5W |
| Mounting | Pre-installed mounting bracket, kits sold separately |
| Environmental Protection | Ruggedized, weatherproof, temperature-hardened |
| Security | WPA3, TPM, Enhanced Open, Policy Enforcement Firewall (PEF) |
| Client Capacity | Up to 512 clients per radio, 16 BSSIDs per radio (8 on 6 GHz) |
| Certifications | Wi-Fi Alliance, Bluetooth SIG, Ethernet Alliance, FCC, CE, TAA compliant |
| Warranty | Limited lifetime warranty |
