Description

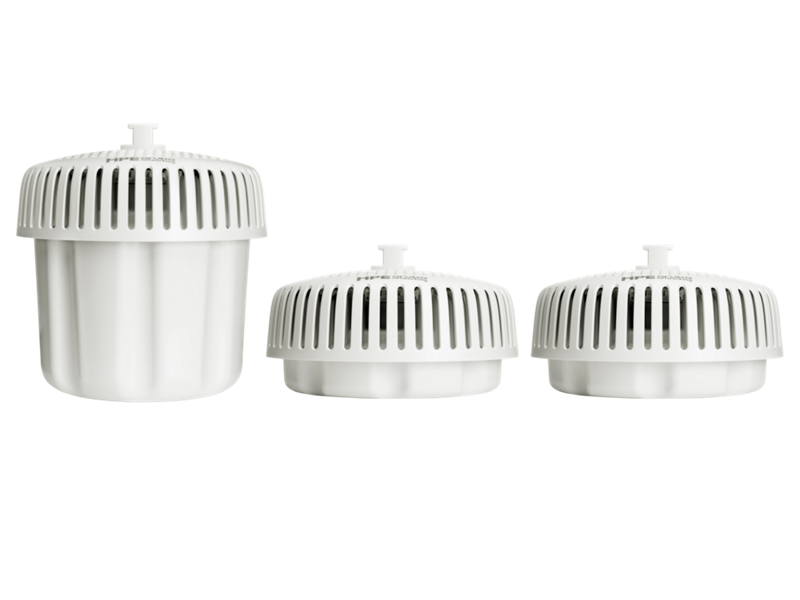

The HPE Aruba Networking AP‑679 (JPF1) is a rugged, tri-radio Wi-Fi 6E outdoor access point designed for high-performance wireless in harsh environments. Featuring internal directional antennas and dynamic 2x2:2 MIMO capabilities across 2.4GHz, 5GHz, and 6GHz bands, it delivers up to 3.9 Gbps aggregate throughput. Engineered for secure and scalable connectivity, the AP‑679 supports extended temperature ranges, integrated GPS, and high-power Bluetooth/Zigbee radios for Industrial IoT. TAA compliant and available for Japan, this access point is ideal for mission-critical outdoor and edge deployments.
| Specification | Details |
|---|---|
| Model Number | HPE Aruba Networking AP‑679 (JPF1) |
| SKU / Part Number | S0Q47A |
| Wi‑Fi Standard | Wi‑Fi 6E (802.11ax) |
| Radio Configuration | Tri Radio (2.4GHz, 5GHz, 6GHz), 2x2:2 MIMO |
| Max Data Rate | Up to 3.9 Gbps aggregate |
| Antenna Type | Internal directional antennas |
| Antenna Gain | - 2.4 GHz: 6.1 dBi - 5 GHz: 7.1 dBi (wide), 10.1 dBi (narrow) - 6 GHz: 7.7 dBi (wide), 11.2 dBi (narrow) - BLE/Zigbee: 6.6 dBi |
| Ports | 1x RJ-45 10/100/1000BASE-T 1x SFP 1GbE fiber |
| Power Input | IEEE 802.3bt PoE or direct DC (via optional power supply) |
| Power Consumption | Up to 45.5W |
| Rugged Features | Outdoor-rated, temperature-hardened, IP-rated, embedded GPS |
| IoT Support | Integrated high-power Bluetooth & Zigbee radios |
| Max Clients per Radio | Up to 512 |
| Mounting | Preinstalled bracket (mount kits sold separately) |
| Certifications | Wi-Fi Alliance, Bluetooth SIG, TAA, FCC/ISED, CE, EN 62368-1, and others |
| Warranty | Limited Lifetime Warranty |
