Description

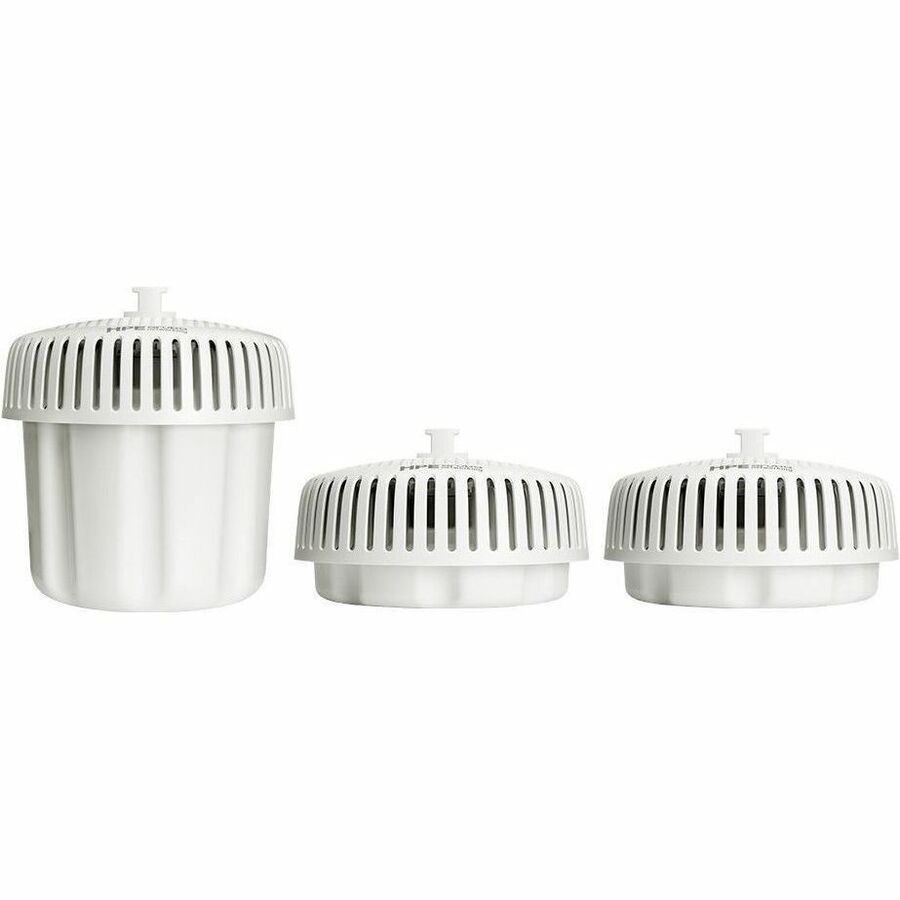

The HPE Aruba Networking AP‑679EX (JP) is a ruggedized tri-radio outdoor access point engineered for high-performance wireless connectivity in the most extreme environments. Part of the 670 Series, it delivers blazing-fast Wi-Fi 6E performance across the 2.4GHz, 5GHz, and 6GHz bands, with up to 3.9 Gbps aggregate throughput.
Designed for hazardous locations, the AP-679EX is certified for Class 1 Division 2 and ATEX Zone 2, making it ideal for oil rigs, industrial plants, and mining operations. Built-in directional antennas, Bluetooth/Zigbee radios, and GPS allow for seamless integration with IoT applications and location-aware services. The device supports Dynamic Segmentation, secure WPA3 encryption, and simplified PoE or DC power options for flexible deployments in remote sites.
| Specification | Details |
|---|---|
| Part Number | S0Q62A |
| Model | AP‑679EX (JP) |
| Wireless Standard | Wi-Fi 6E (IEEE 802.11ax) |
| Radio Configuration | Tri-radio (2x2 MIMO): 2.4GHz, 5GHz, 6GHz (concurrent) |
| Max Data Rate | Up to 3.9 Gbps aggregate |
| Antenna Type | Internal Directional Antennas |
| Antenna Gain | 2.4GHz: 6.1 dBi5GHz: 7.1–10.1 dBi6GHz: 7.7–11.2 dBi |
| IoT Radios | Integrated high-power Bluetooth and Zigbee |
| Location Services | Built-in GPS receiver |
| Connectivity Ports | (1) 1G/2.5G RJ-45 port(1) 1G SFP port |
| Mounting | Preinstalled bracket (mount kits sold separately) |
| Input Power | IEEE 802.3bt PoE or optional direct DC input |
| Max Power Consumption | Up to 45.5W |
| Client Support | Up to 512 clients per radio; 16 BSSIDs per radio (8 max for 6GHz) |
| Security Features | WPA3, Enhanced Open, TPM, Dynamic Segmentation, PEF firewall |
| Environmental Ratings | Weatherproof, temperature-hardened, HazLoc-certified |
| Certifications | FCC/ISED, CE, Wi-Fi Alliance, Bluetooth SIG, ATEX, IEC/EN 62368-1 |
| Warranty | Limited Lifetime Warranty |
