Description

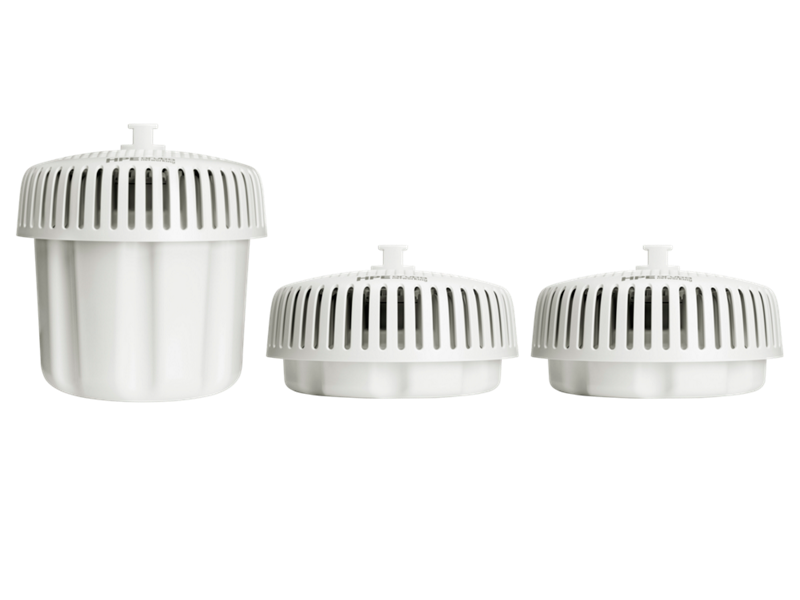

The HPE Aruba Networking AP‑679EX (RW) is a rugged, tri-radio Wi-Fi 6E access point engineered for hazardous and extreme outdoor environments, including oil rigs, mining, and heavy industrial zones. As part of the Aruba 670EX Series, this AP complies with Class 1 Division 2 and ATEX Zone 2 certifications, ensuring safe and reliable performance where flammable gases, vapors, or dust are present.
It features built-in internal directional antennas, tri-band support (2.4GHz, 5GHz, 6GHz), and advanced IoT integration with high-power Bluetooth and Zigbee radios. With a maximum aggregate data rate of up to 3.9 Gbps, embedded GPS, and flexible 2.5 GbE and 1 GbE SFP wired connectivity, the AP-679EX delivers enterprise-grade wireless in the toughest conditions.
| Specification | Details |
|---|---|
| SKU / Part Number | S0Q61A |
| Product Series | HPE Aruba Networking 670EX Outdoor Series |
| Model | AP‑679EX (RW) |
| Radios | Tri Radio (2.4GHz, 5GHz, 6GHz) Wi‑Fi 6E (802.11ax) |
| Antenna Type | Built-in directional antennas |
| Antenna Gain | 2.4 GHz: 6.1 dBi5 GHz: 7.1 dBi (wide) / 10.1 dBi (narrow)6 GHz: 7.7 dBi (wide) / 11.2 dBi (narrow) |
| Bluetooth / Zigbee | Integrated omnidirectional antenna (6.6 dBi peak gain) |
| Max Data Rate | Up to 3.9 Gbps (aggregate) |
| MIMO Configuration | 2x2:2 MU-MIMO |
| Ports | 1x 10/100/1000BASE-T (RJ-45), 1x 1GbE SFP fiber port |
| PoE Support | IEEE 802.3bt (Class 6) or direct DC (via optional PSU) |
| Max Power Consumption | 45.5W |
| Mounting | Integrated bracket (mount kit sold separately) |
| Client Capacity | Up to 512 clients per radio; up to 16 BSSIDs per radio (8 for 6GHz) |
| Environmental Certification | Class 1 Division 2, ATEX Zone 2, CE, FCC, RED, IEC/EN 62368-1 |
| Other Features | Embedded GPS, Dynamic Segmentation, TPM, WPA3, ClientMatch, TWT, IPM |
| Dimensions / Form Factor | Outdoor, ruggedized enclosure |
| Warranty | Limited Lifetime Warranty |
| Availability | Available in RW (Rest of World) region; not available in US, Israel, Egypt, Japan |
