Description
Scale Without Overheating – Adaptive Rack Cooling for High-Density IT

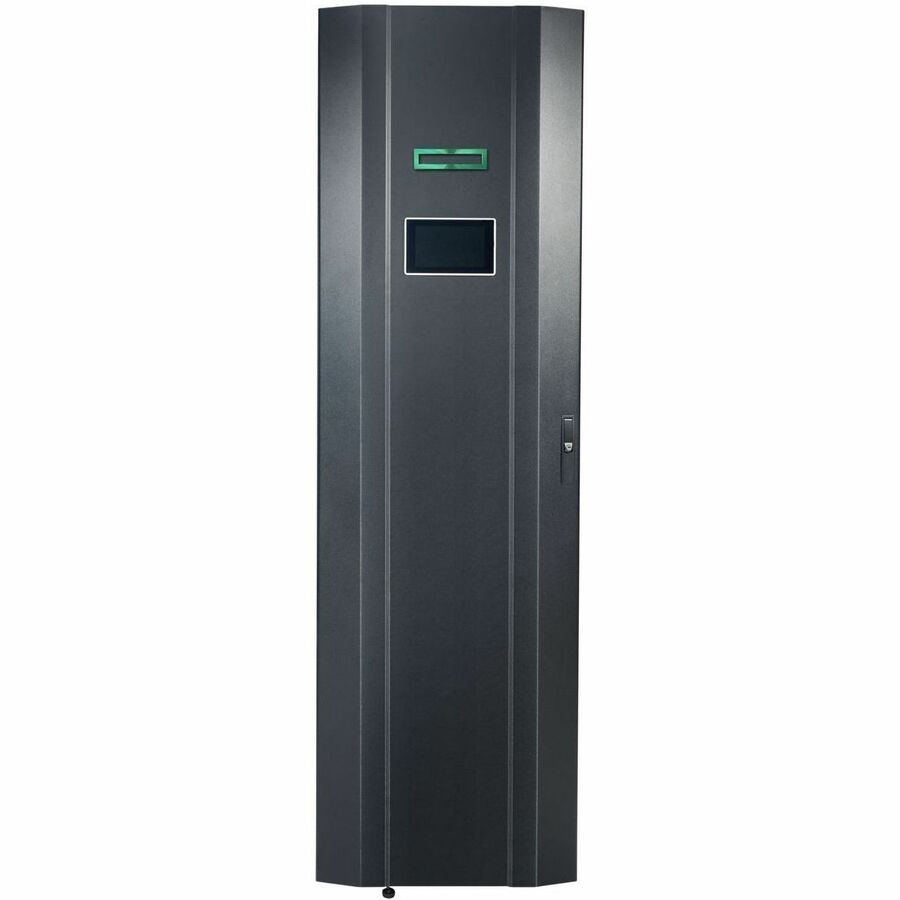

The HPE ARCS 48U 800x1600mm Rack (R8N95A) is part of HPE's Adaptive Rack Cooling System designed to deliver high-efficiency, high-density cooling directly at the rack level. Supporting up to 150 kW and 10,000 cfm airflow, it offers scalable, closed-loop cooling that doesn’t require traditional raised floors or CRAH units. Perfect for next-generation data centers, this solution allows for deployment on standard concrete flooring while supporting the highest performing IT hardware—extending infrastructure lifecycle and reducing cooling overhead.
Whether deployed in high-performance computing environments, data center hot spots, or remote facilities, the HPE ARCS provides quiet, efficient, and localized cooling with remote environmental monitoring and adaptive airflow control.
Key Features:
-
Exceptional Cooling Performance: Supports up to 150 kW of heat load per cooling unit.
-
High Airflow Efficiency: Delivers up to 10,000 cfm to manage extreme power densities.
-
Flexible Infrastructure Support: One unit supports up to 4 racks, compared to legacy 2-rack systems.
-

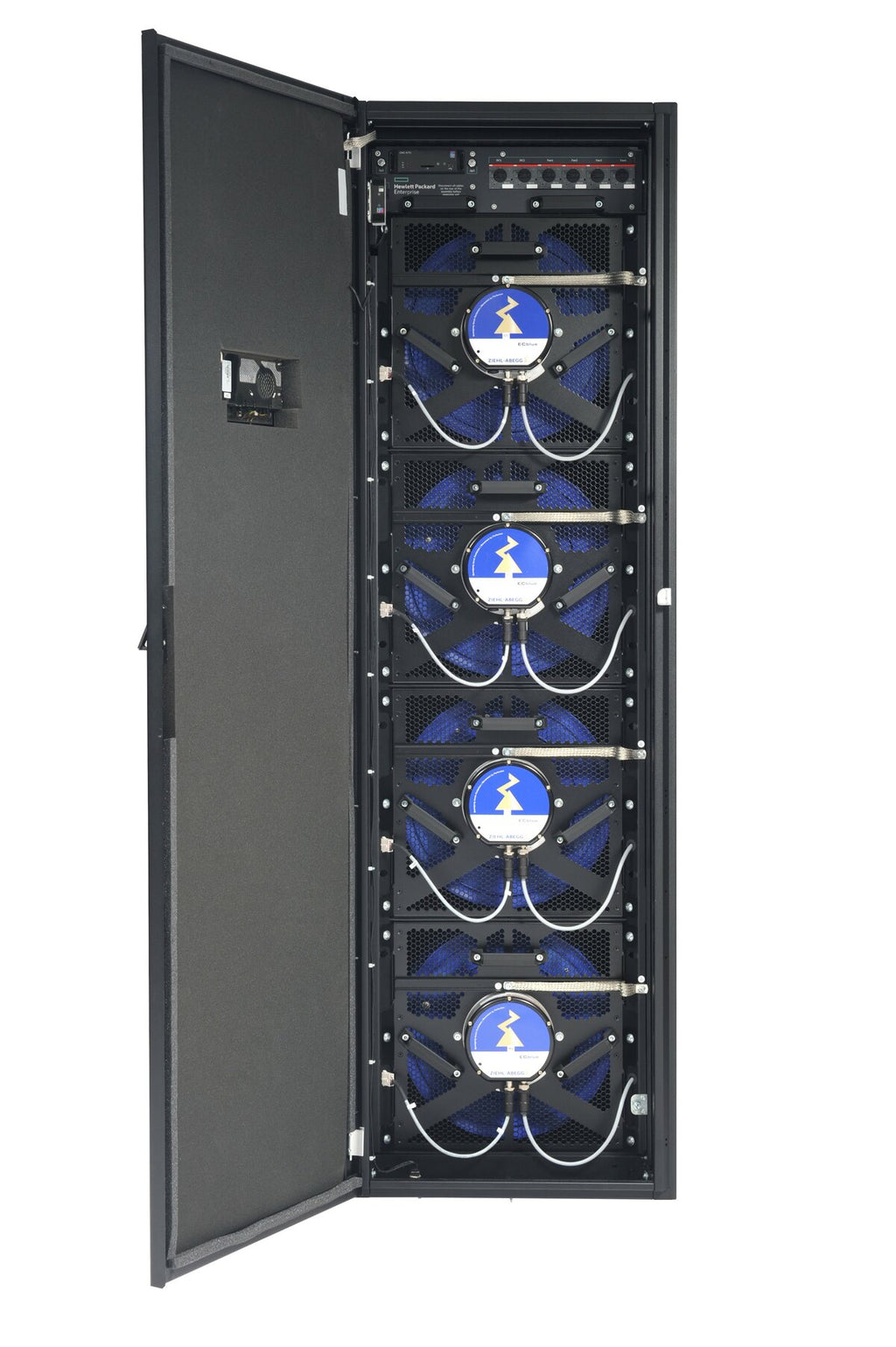

Advanced Energy Efficiency: Variable speed fans adjust airflow by workload, improving PUE.
-
Room-Agnostic Deployment: No cold/hot aisle containment or raised floor required.
-

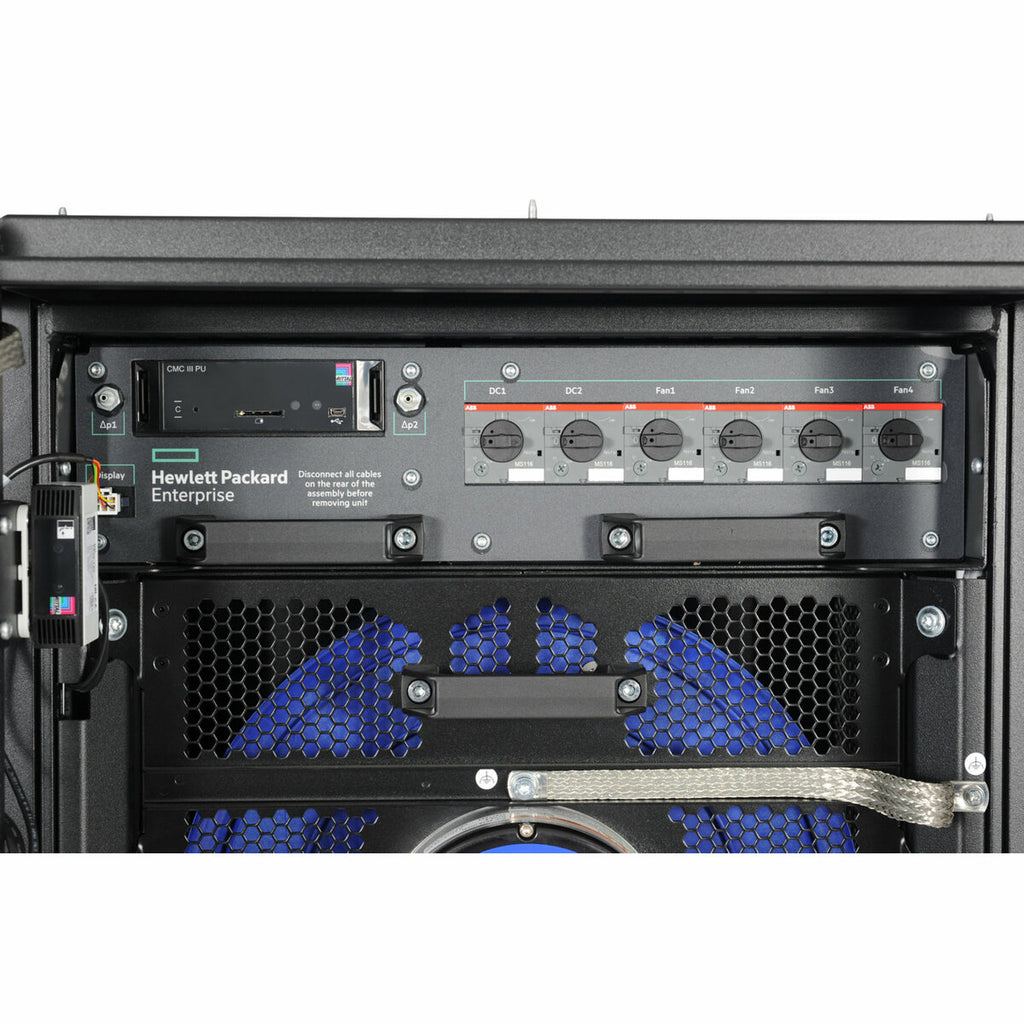

Remote & Local Management: Touchscreen controls, browser access, HPCM integration, and standard protocols.
| Specification | Details |
|---|---|
| Product SKU | R8N95A |
| Product Type | Adaptive Rack Cooling System |
| Rack Height Options | 42U / 48U |
| Cooling Capacity | Up to 150 kW |
| Airflow Capacity | Up to 10,000 CFM |
| Supported Power Input | 380V–480V AC, 3-Phase |
| Cooling Unit Dimensions (H x W x D) | 78.9 x 23.6 x 65.3 in |
| 48U Rack Dimensions (H x W x D) | 90.4 x 23.6 x 65.4 in |
| 42U Rack Dimensions (H x W x D) | 78.9 x 23.6 x 65.4 in |
| Cooling Unit Weight | 1423 lb |
| Rack Weight (42U / 48U) | 395 lb |

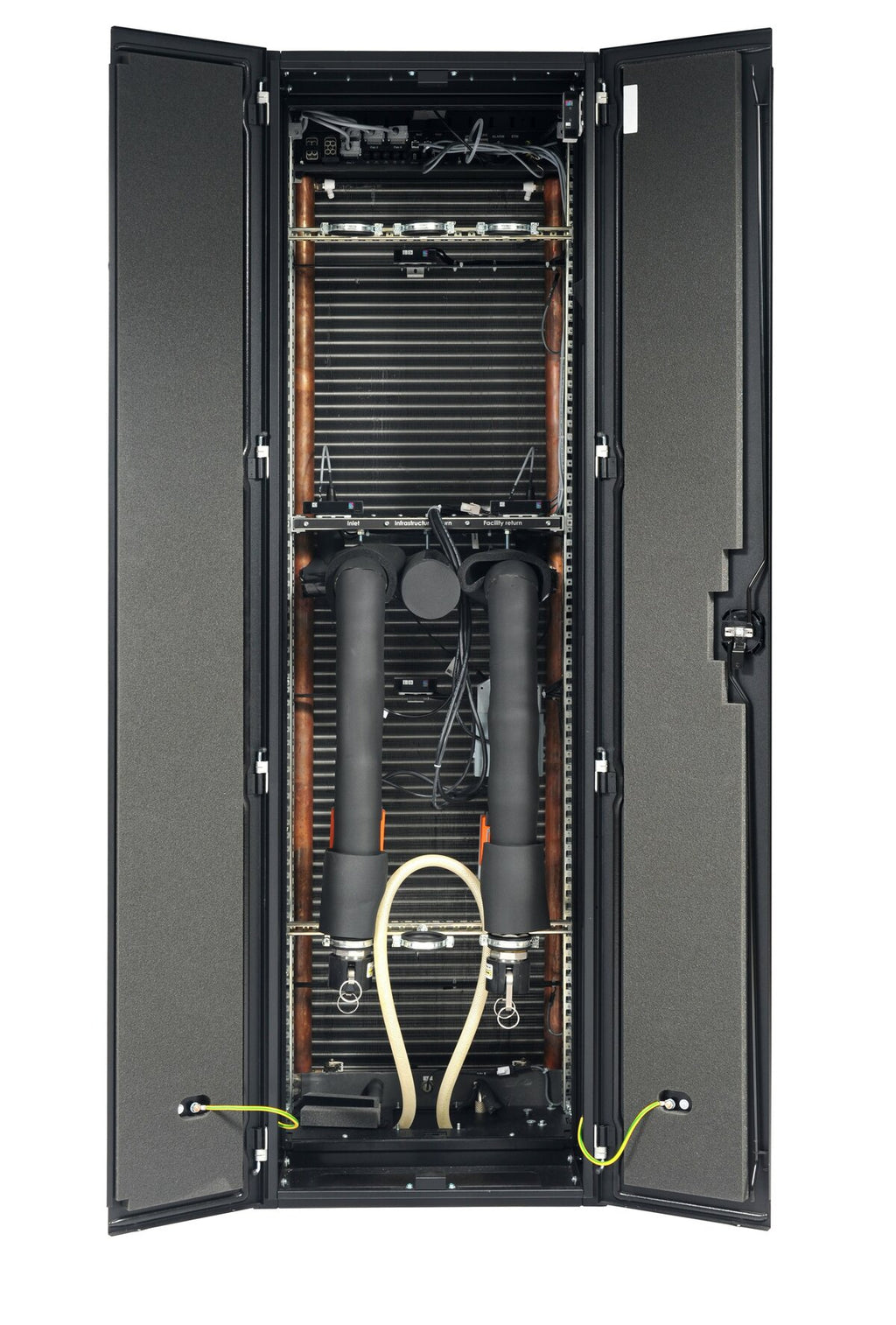

| Cooling Architecture | Closed-loop, horizontal airflow |
| Control Interface | Local touchscreen, web browser, HPCM, protocols |
| Use Case | High-density IT, HPC, data center hotspots |
| Installation Surface | Concrete or raised floors |
