Description

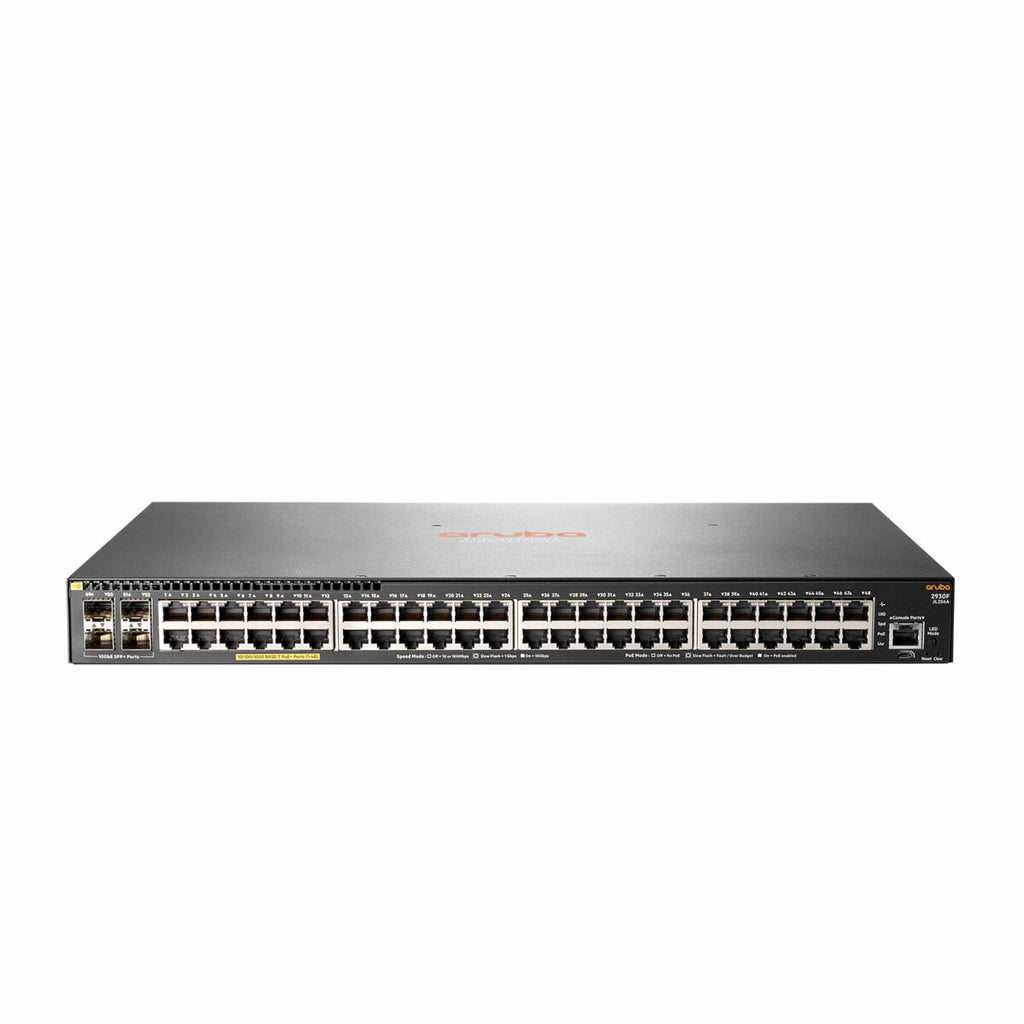

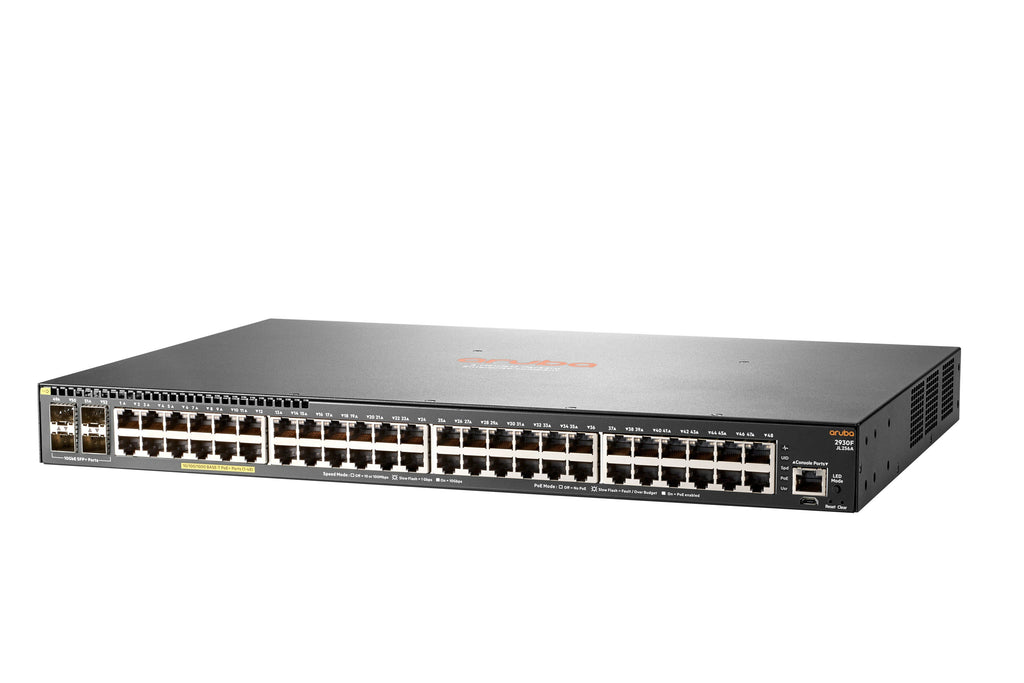

The HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch (JL256A#ABB) is a high-performance, Layer 3 managed switch designed for enterprise edge, SMBs, and branch office deployments. With 48 Gigabit PoE+ ports and 4 SFP+ uplink ports, it delivers scalable, secure, and cost-effective connectivity for your growing network.
Powered by a robust ProVision ASIC and supporting advanced features such as Access OSPF, RIP routing, VSF stacking, and up to 370W of PoE+, it enables simplified deployment of IP phones, wireless access points, and surveillance devices. Integrated management tools like HPE Aruba Central, AirWave, and ClearPass ensure streamlined configuration, monitoring, and security enforcement across wired and wireless networks.
Whether you’re building a mobile-first digital workplace or expanding a branch network, the 2930F delivers reliable performance and centralized control—no licensing required.
| Specification | Details |
|---|---|
| Model Number | JL256A#ABB |
| Product Series | HPE Aruba Networking 2930F Switch Series |
| Ports | 48x 10/100/1000Base-T PoE+, 4x SFP+ 1/10GbE uplinks |
| PoE Power Budget | 370W |
| Switching Capacity | 176 Gbps |
| Throughput | 112 Mpps |
| Latency | < 3.8 µs (1Gbps), < 1.6 µs (10Gbps) |
| Stacking | HPE Aruba VSF (up to 8 members) |
| Layer Support | Layer 3 (Access OSPF, Static Routing, RIP) |
| Memory | 1 GB DDR3 SDRAM, 4 GB eMMC storage |
| Buffer Size | 12.38 MB (4.5 MB ingress / 7.875 MB egress) |
| Management Options | Aruba Central, AirWave, IMC, CLI, Web GUI, SNMP, RMON |
| Input Voltage | 100–127 / 200–240 VAC |
| Max Power Consumption | 459W |
| Heat Dissipation | 293 BTU/hr |
| Form Factor | Rack-mountable |
