Description

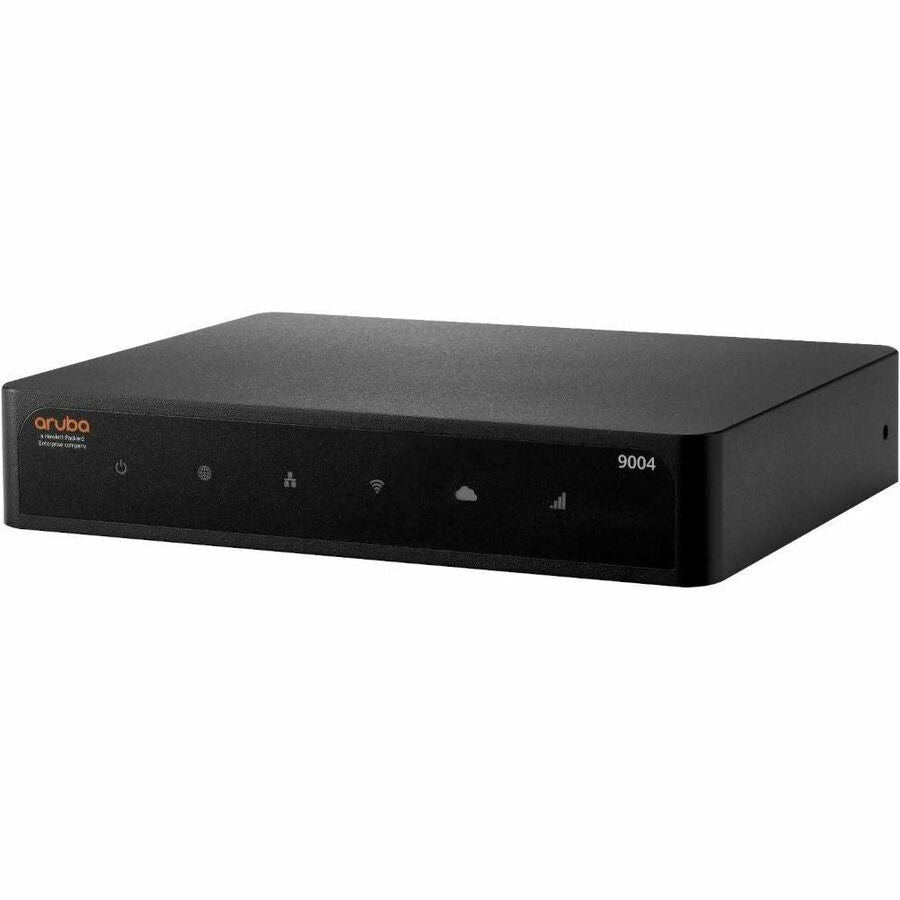

The HPE Aruba Networking 9004 (IL) TAA Gateway (R1B28A) is a compact, fanless desktop gateway ideal for secure SD-WAN, WLAN, and LAN networking in small branch or remote office environments. Designed with performance, compliance, and operational efficiency in mind, it supports up to 2,000 clients and 32 APs, while delivering 4 Gbps firewall throughput and advanced Layer 4–7 policy enforcement.
This TAA-compliant model is suited for organizations requiring strict regulatory standards and is available exclusively in Israel. Integrated with Aruba Central, it offers cloud-managed deployment and monitoring, and features seamless role-based segmentation and traffic optimization for Microsoft 365 and collaboration applications.
| Category | Details |
|---|---|
| SKU | R1B28A |
| Form Factor | Desktop (fanless), optional 19” rack mount tray |
| Interfaces | 4x 10/100/1000BASE-T RJ45 Ports |
| Max Clients | 2,000 per gateway / 8,000 per cluster |
| Max APs Supported | 32 per gateway / 512 per cluster |
| Firewall Throughput | 4 Gbps |
| Encrypted Throughput | 4 Gbps (GRE / AES-128/256 / AES-GCM-128/256) |
| Max Sessions | 128,000 |
| Console Ports | Micro-USB and RJ45 |
| USB Port | 1x USB 3.0 Type-A |
| LED Indicators | System, WAN/LAN status, Gateway mode, Aruba Central connectivity |
| Power Adapter | 12V DC, 2.5A AC-to-DC adapter (included) |
| Power Consumption | 25W (max, with USB connected) |
| Mounting | Optional 19-inch rack mount kit (R1B30A) |
| Operating Temp | 0° to 40°C (32° to 104°F) |
| Dimensions (H x W x D) | 3.82 cm x 19.85 cm x 15.31 cm (1.5" x 7.815" x 6.03") |
| Weight | 1.24 kg (2.73 lbs) |
| Certifications | FCC/ISED, RED 2014/53/EU, MIC, NCC, ANATEL, COFTEL, CCC |
| TAA Compliance | Yes |
