Description

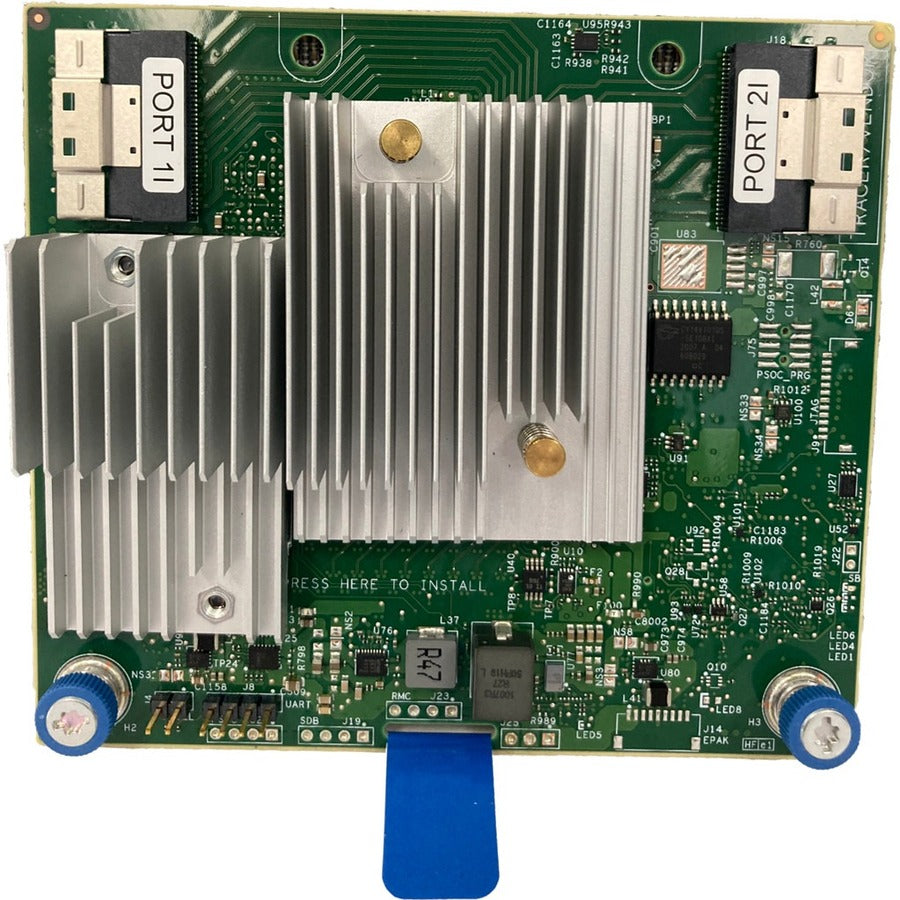

Boost performance, flexibility, and data protection with the HPE MR216i-a Gen10 Plus Storage Controller. Engineered for HPE ProLiant Gen10 Plus servers, this Tri-Mode controller supports NVMe4/SAS3/SATA protocols with 16 internal lanes and up to 4 GB cache. Built with HPE Silicon Root of Trust, it ensures firmware authentication and supports self-encrypting drives, protecting your data from threats at rest.
The controller delivers high RAID performance across levels 0, 1, 5, 6, 10, 50, 60—achieving up to 13,700 MB/s bandwidth, 3M random read IOPS, and 240K RAID5 write IOPS. With software compatibility across major OS platforms (Windows, Linux®, VMware®) and a full tool suite, the MR216i-a is ideal for mission-critical environments.
| Specification | Details |
|---|---|
| Model | HPE MR216i-a Gen10 Plus |
| Part Number | P26279-B21 |
| Interface | PCIe Gen4 x8 |
| Transfer Rates | PCIe Gen4 host / Gen4 NVMe / Gen3 SAS/SATA |
| RAID Support | RAID 0, 1, 5, 6, 10, 50, 60 |
| Channels | 16-channel internal tri-mode (NVMe/SAS/SATA) |
| Cache Memory | 4 GB |
| Ports | 2x8 host / x16 internal |
| Form Factor | Type-a Modular Controller |
| Supported Servers | ProLiant DL325, DL345, DL360, DL365, DL380, DL385 Gen10 Plus |
| Dimensions | 4.405 in (L) |
| Weight | 0.284 lb |
| Software Support | Windows, Linux®, VMware®, CLI & Web GUI, out-of-band management |
| Security | Silicon Root of Trust, Self-encrypting drive support |
| Certifications | Refer to HPE MR Gen10 Plus Controllers QuickSpecs |
