Description

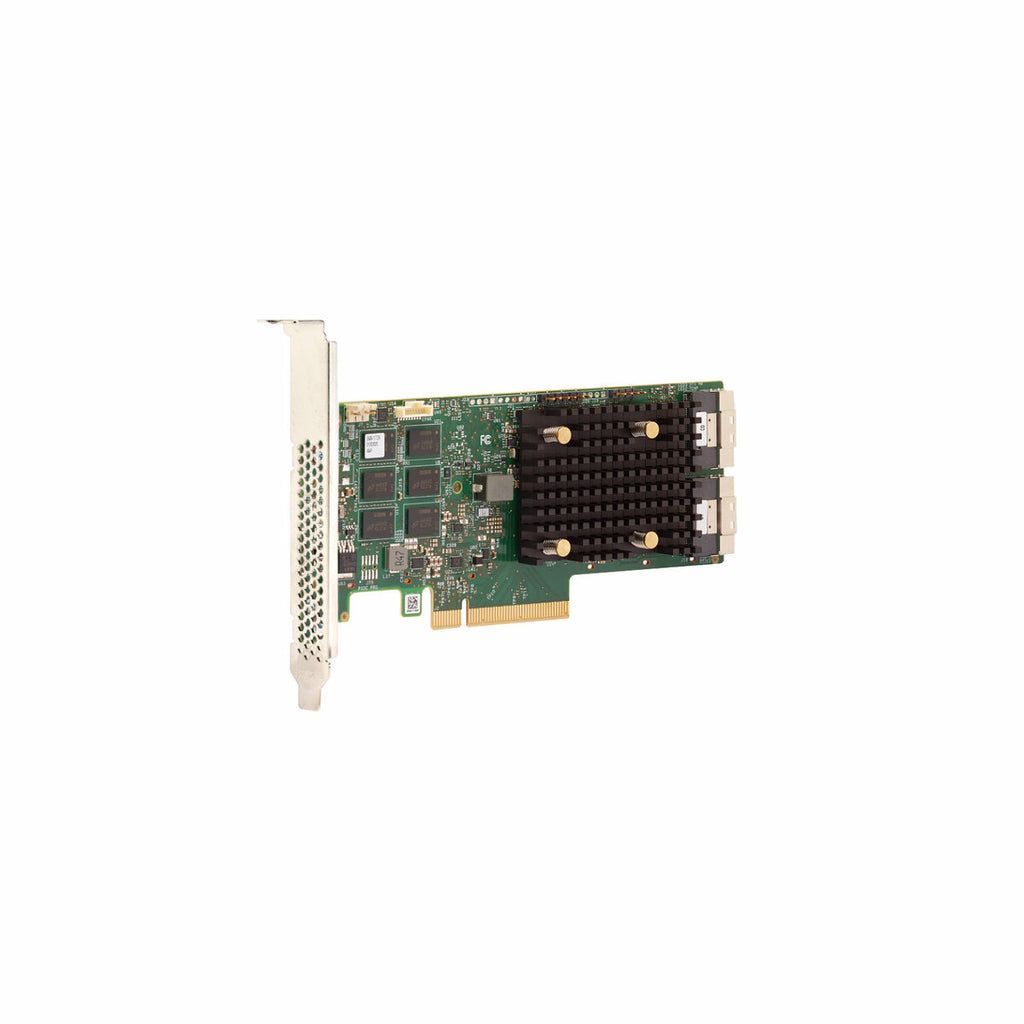

Boost your enterprise storage infrastructure with the HPE MR416i-p Gen10 Plus RAID Controller. Designed for next-generation data centers, HPC, and hybrid cloud environments, this tri-mode controller delivers outstanding flexibility and performance. Supporting NVMe, SAS, and SATA drives concurrently with PCIe Gen4 throughput, the MR416i-p provides superior RAID protection with 4GB onboard cache, up to 3 million IOPS, and 13,700 MB/s bandwidth. Integrated HPE Silicon Root of Trust ensures security, while comprehensive management tools and OS support simplify deployment and maintenance.
| Specification | Details |
|---|---|
| Product Number | P06367-B21 |
| Form Factor | Standard HHHL PCIe Plug-in |
| Interface | PCIe Gen4 host / Gen4 NVMe / Gen3 SAS/SATA |
| Ports | 2x8 host lanes (x16 internal tri-mode) |
| Cache | 4 GB |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| Supported Protocols | NVMe, SAS, SATA |
| Storage Management | MegaRAID Storage Administrator (MRSA), StorCLI, HII, Redfish |
| Security | HPE Silicon Root of Trust, Secure Encrypted Drives |
| Operating Systems | Windows, Linux, VMware |
| Dimensions | 15.7 cm |
| Weight | 0.146 kg |
| Warranty | 3 years (parts only) |
| Compatibility | Refer to HPE MR Gen10 Plus Controllers QuickSpecs |
