Description

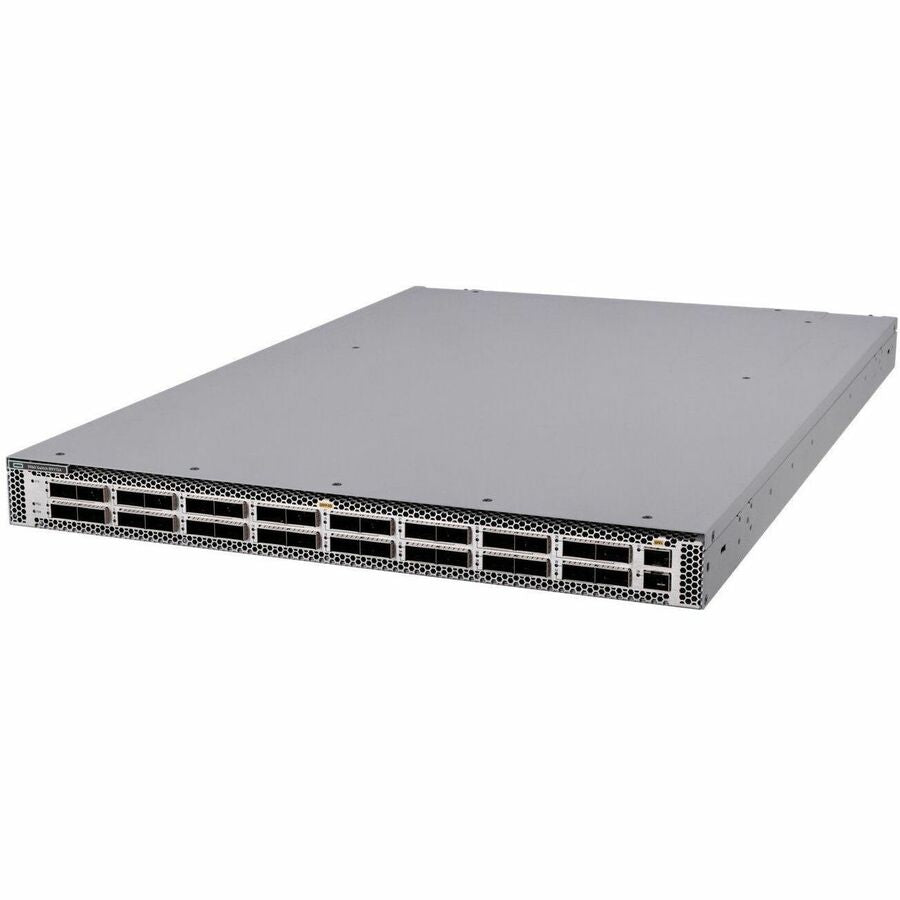

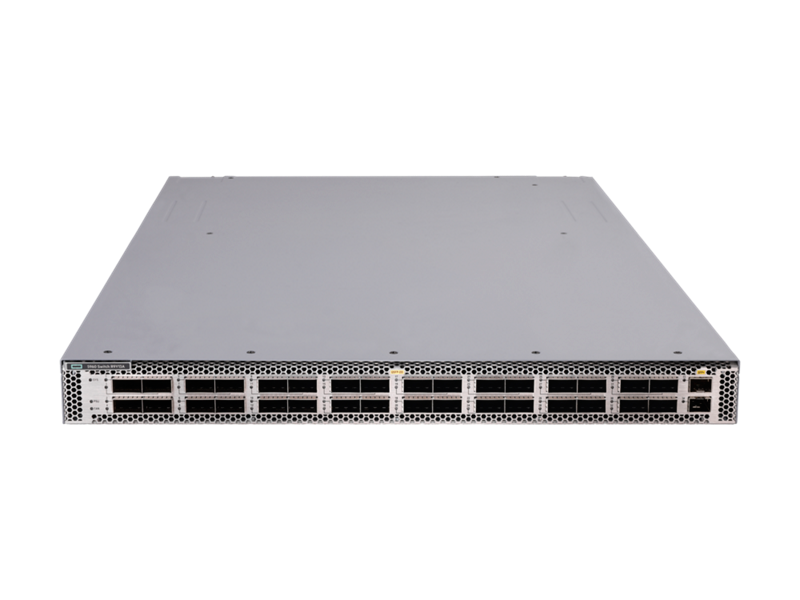

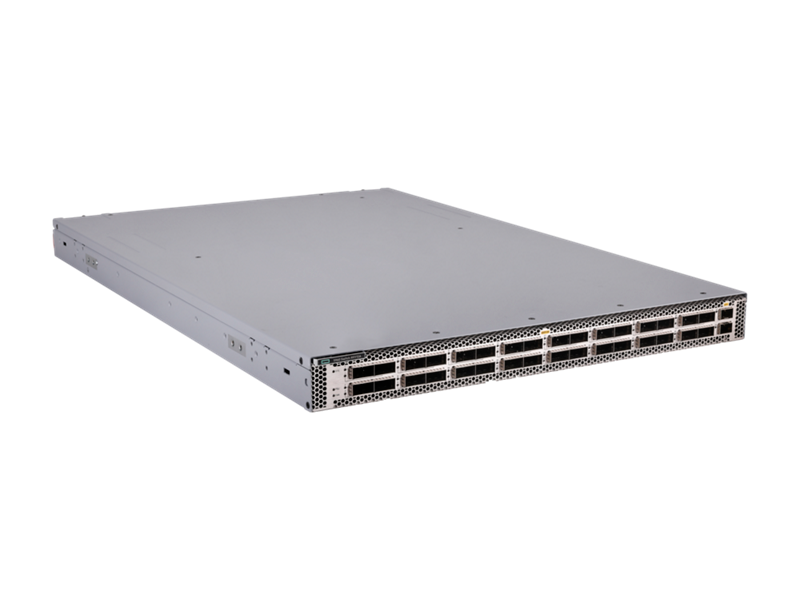

The HPE Networking Comware 5960 Data Center Switch (R9Y13A) is a high-performance, high-density top-of-rack (ToR) switch designed for modern enterprise data centers, cloud service providers, and telco environments. Supporting up to 32 400G QSFP-DD ports and powered by HPE Comware v9 OS, it delivers advanced capabilities including Segment Routing (SR-MPLS, SRv6), PTP, VXLAN/EVPN, and DRNI for enhanced scalability, resiliency, and network virtualization.

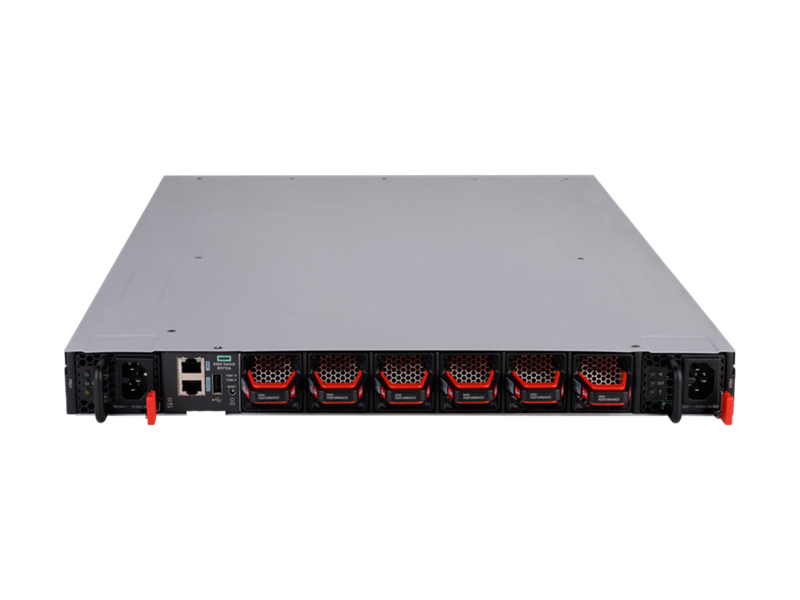

Engineered for performance and reliability, the 5960 switch offers 12.8 Tbps of switching capacity and <1.2 µs latency, with dual hot-swappable redundant power supplies and fan tray slots for continuous uptime. It integrates seamlessly with HPE Intelligent Management Center (IMC) for centralized configuration, monitoring, and automation.
Ideal for high-throughput applications, this 1U switch is a powerful foundation for future-ready data centers.
| Specification | Details |
|---|---|
| Product Code | R9Y13A |
| Form Factor | 1U Rack-mountable |
| Ports | 32 × QSFP-DD 100G/400G (max), 2 × SFP/SFP+ 1/10G (max) |
| Management Ports | 1 × RJ45, 1 × Console, 1 × USB 2.0 |
| Switching Capacity | 12.8 Tbps |
| Latency | <1.2 µs |
| Processor | Intel D-1627 @2.9 GHz |
| Memory | 16 GB DDR4 |
| Storage | 240 GB SSD |
| Power Consumption | 830W |
| Heat Dissipation | 2830 BTU/hr |
| Input Voltage | DC: 180V–320V, AC: 100V–240V |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Power Supply Slots | 2 (min. 1 required; not included) |
| Fan Tray Slots | 6 (min. 6 required; not included) |
| Management Features | IMC, CLI, SNMP, Telnet, FTP, Out-of-band management |
| Operating System | HPE Comware v9 |
| Advanced Features | SR-MPLS, SRv6, VXLAN/EVPN, DRNI, PTP, ERSPAN, gRPC |
| Warranty | Limited lifetime warranty |
