Description

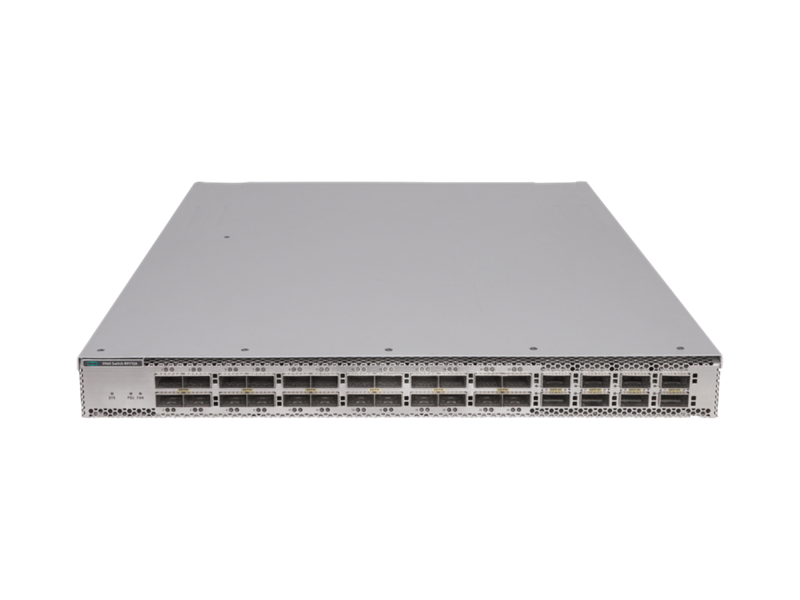

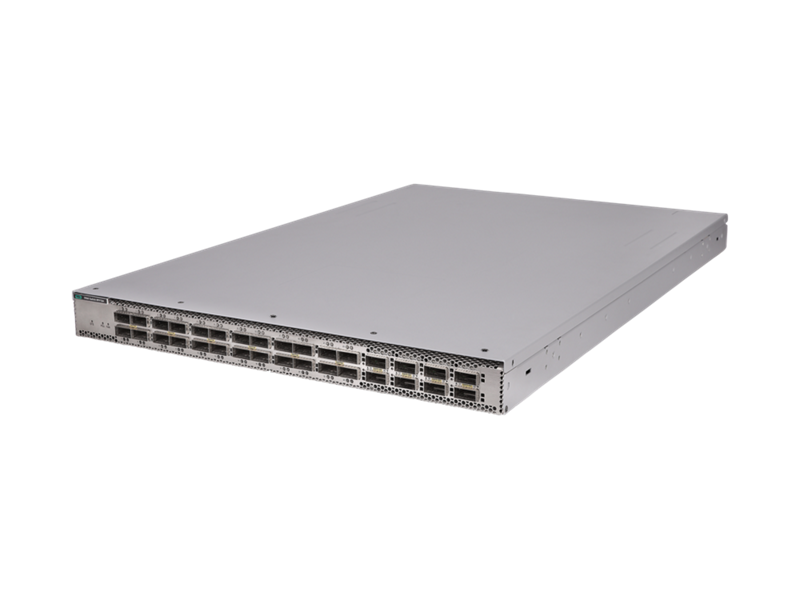

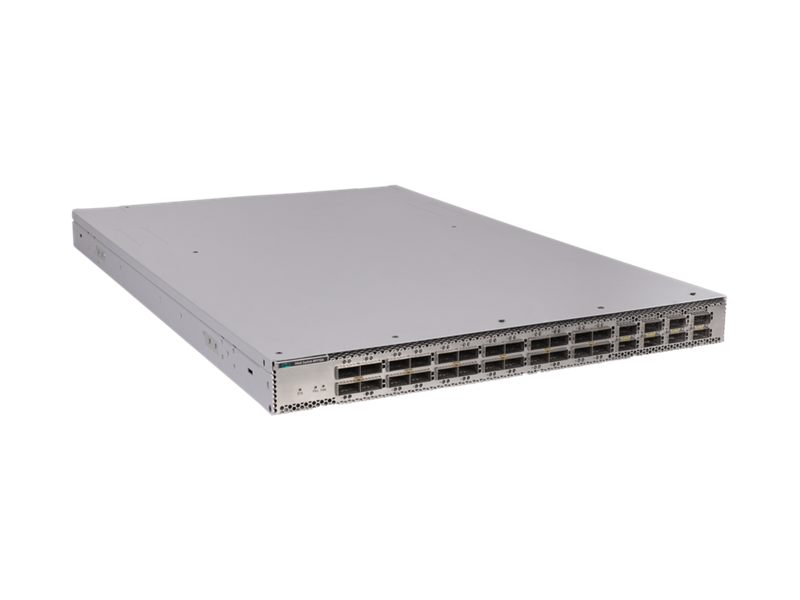

The HPE Networking Comware 5960 Switch is a high-performance, high-density top-of-rack (ToR) data center switch designed for modern enterprise, cloud, and telco environments. This model (R9Y12A) features 24 ports of 100/200G QSFP56 and 8 ports of 400G QSFP-DD, delivering up to 12.8 Tbps switching capacity with sub-microsecond latency and 8 Tbps routing/switching performance.

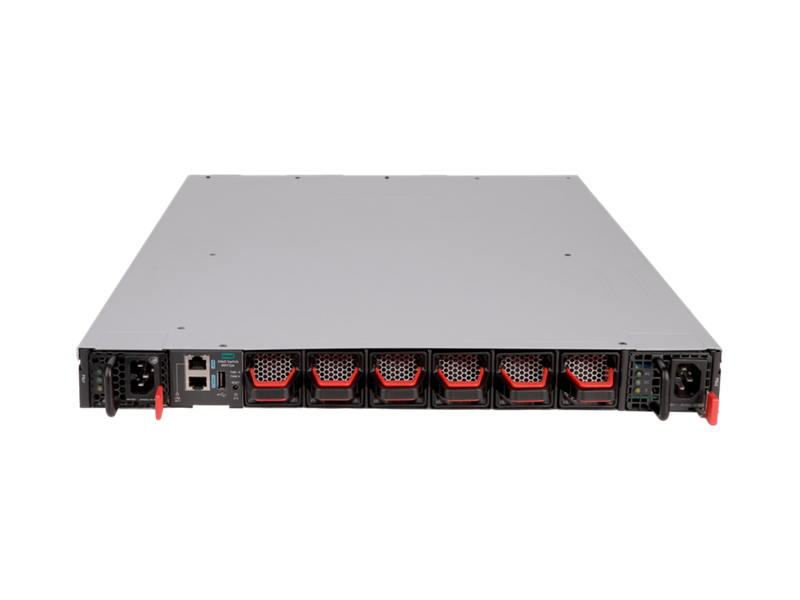

Built on Comware v9, the switch supports advanced features including Segment Routing (SR-MPLS and SRv6), VXLAN/EVPN, DRNI, and PTP, enabling network virtualization, scalability, and resiliency. With support for dual hot-swappable PSUs and six fan trays, the switch is engineered for reliability and maximum uptime.
It is fully manageable via HPE IMC, SNMP, CLI, SSH, and more, with real-time analytics and telemetry for operational insights. Ideal for dense, mission-critical deployments requiring consistent performance and centralized orchestration.
| Specification | Details |
|---|---|
| Model Number | R9Y12A |
| Form Factor | 1U Rack-mountable |
| Ports | 24x QSFP56 100/200G, 8x QSFP-DD 400G, 2x SFP+, 1x RJ-45 Mgmt, 1x Console |
| Switching Capacity | 12.8 Tbps |
| Routing/Switching Cap. | 8 Tbps |
| Latency | <1.2 ΞΌs |
| Processor | Intel D-1627 @2.9GHz |
| Memory | 16 GB DDR4 RAM |
| Storage | 240 GB SSD |
| Power Supply Slots | 2 (Min. 1 required, not included) |
| Fan Tray Slots | 6 (All required, not included) |
| Power Consumption | 830 W |
| Heat Dissipation | 4382.65 BTU/h |
| Input Voltage | DC: 180β320V / AC: 100β240V |
| Operating Temperature | 0Β°C to 40Β°C (32Β°F to 104Β°F) |
| Management & Features | HPE IMC, CLI, SNMP, Telnet, FTP, OOB Mgmt, SSH, SSL, Real-time analytics |
| Software | Comware v9 with SR-MPLS, SRv6, PTP, VXLAN, EVPN, DRNI, QoS, ACL, gRPC |
| Warranty | Limited Lifetime Warranty |
