Description

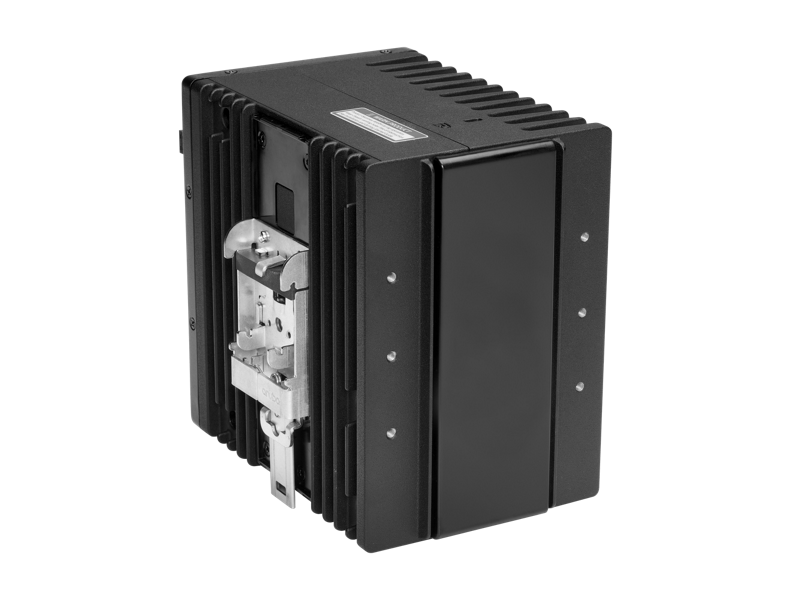

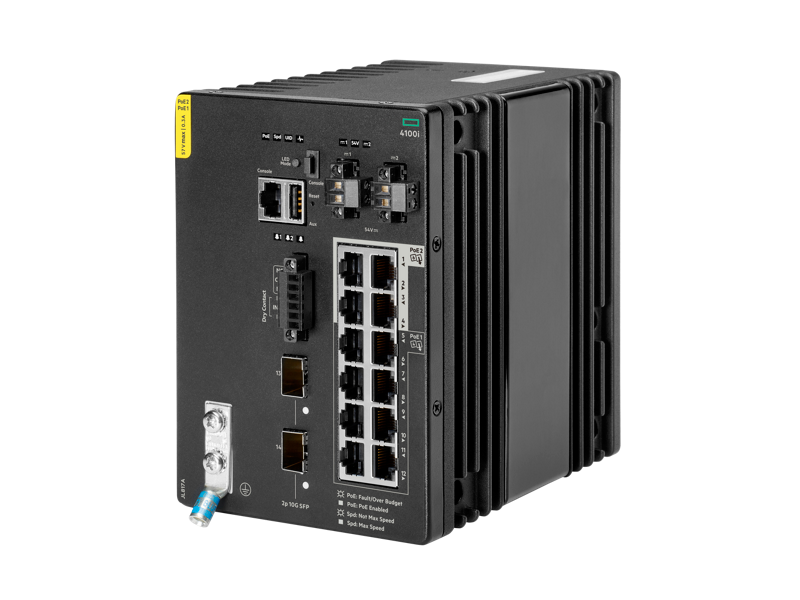

Β The HPE Aruba Networking CX 4100i Switch Series delivers robust and reliable connectivity in challenging industrial and outdoor environments. The JL817A model features 12 1GbE ports, including 8 ports with Class 4 PoE (up to 30W) and 4 ports with Class 6 PoE (up to 60W), along with 2 high-performance 1/10G SFP+ uplink ports. Designed for DIN rail mounting, this rugged switch supports wide temperature operation and flexible power supply options. Its advanced Layer 2 switching capabilities, industrial-grade durability, and versatile management options via Aruba Central, Web GUI, or CLI make it ideal for IoT deployments and harsh edge network environments.
| Specification | Details |
|---|---|
| Model Number | JL817A |
| Product Series | HPE Aruba Networking CX 4100i |

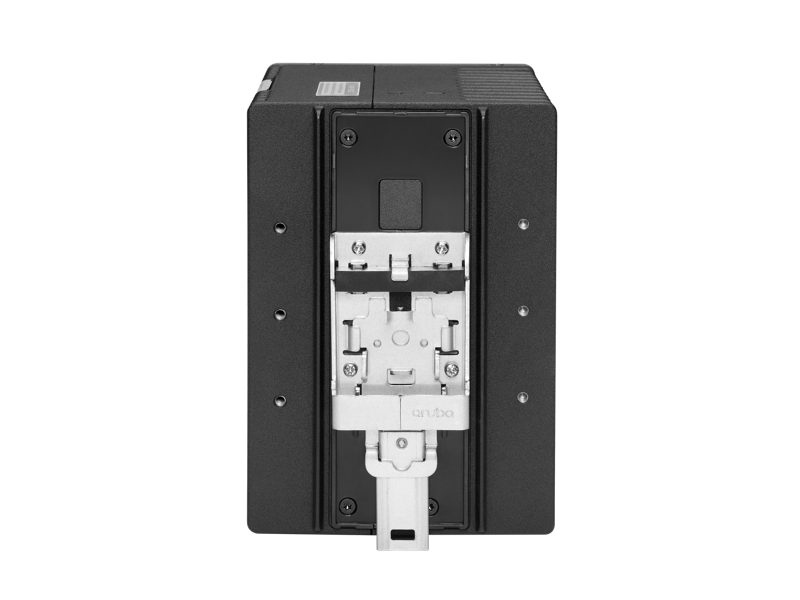

| Form Factor | DIN Mount, Ruggedized |

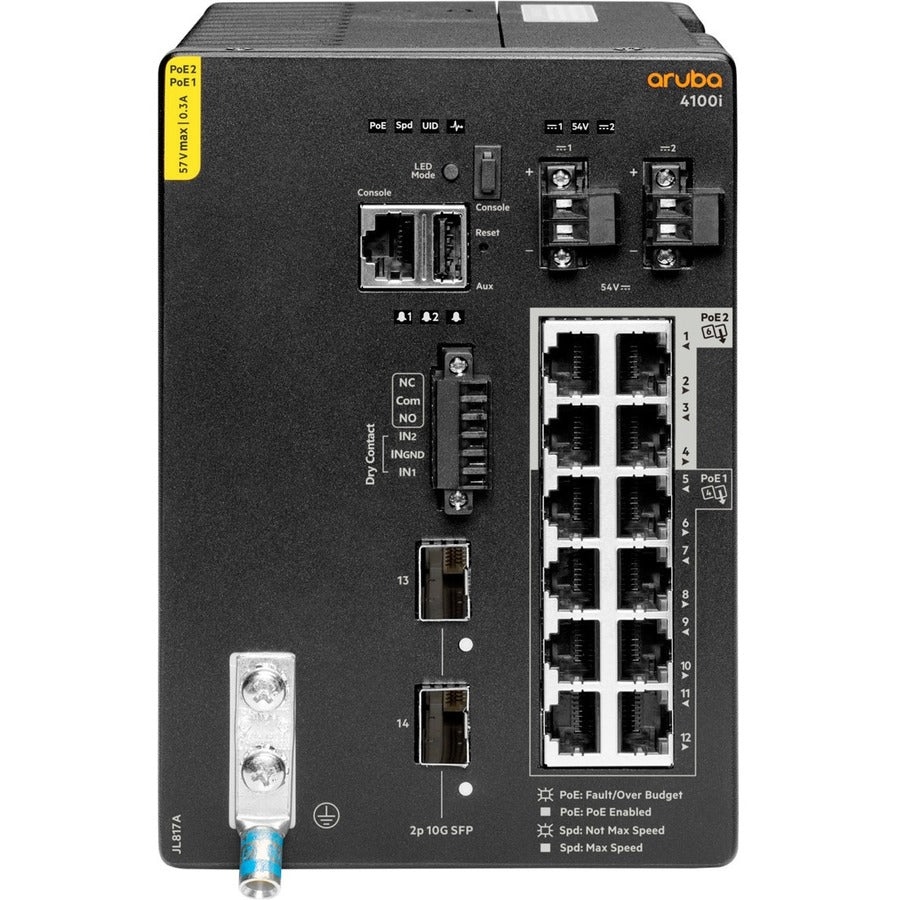

| Ports | - 8x 100M/1G Base-T (Class 4 PoE, 30W)- 4x 100M/1G Base-T (Class 6 PoE, 60W)- 2x 1G/10G SFP+ uplinks |
| Console & I/O | - 1x USB-C Console Port- 1x RJ45 Console- 1x USB Type A Host- 1x Alarm Socket |
| Switching Capacity | Up to 64 Gbps |
| Routing Throughput | Up to 46 Mpps |
| Latency | - 2.390 ΞΌSec @ 1 Gbps- 2.038 ΞΌSec @ 10 Gbps |
| Stacking | Not supported |
| Processor & Memory | Dual Core ARM Cortex A9 @ 1016 MHz4 GB DDR3, 32 GB eMMC |
| Power Supply Support | JL819A, JL820A, JL821A (DIN-rail, field replaceable) |
| Power Consumption | JL819A: 22W idle / 26W load / 55W w/ heaterJL820A: 24W idle / 28W load / 57W w/ heaterJL821A: 22W idle / 27W load / 56W w/ heater |
| Heat Dissipation | - JL819A: 89 BTU/hr- JL820A: 95 BTU/hr- JL821A: 94 BTU/hr |
| Voltage Input | - JL819A & JL820A: 100β240V AC- JL821A: 12β48V DC nominal (11β55V certified) |
| PoE Budget | Refer to external PSU spec sheet and Installation Guide |
| Operating Temperature | -40Β°C to 60Β°C (0 LFM)-40Β°C to 70Β°C (40 LFM)-34Β°C to 75Β°C (200 LFM) |
| Weight | 3.71 kg (8.18 lbs) |
| Dimensions | 160 x 113 x 162.9 mm (173.5 mm w/ bracket)6.3β x 4.4β x 6.4β (6.8β w/ bracket) |
| Management Options | Aruba Central, Web GUI, CLI, Multi-Edit |
| Warranty | Limited Lifetime (5-Year Standard) |
