Description

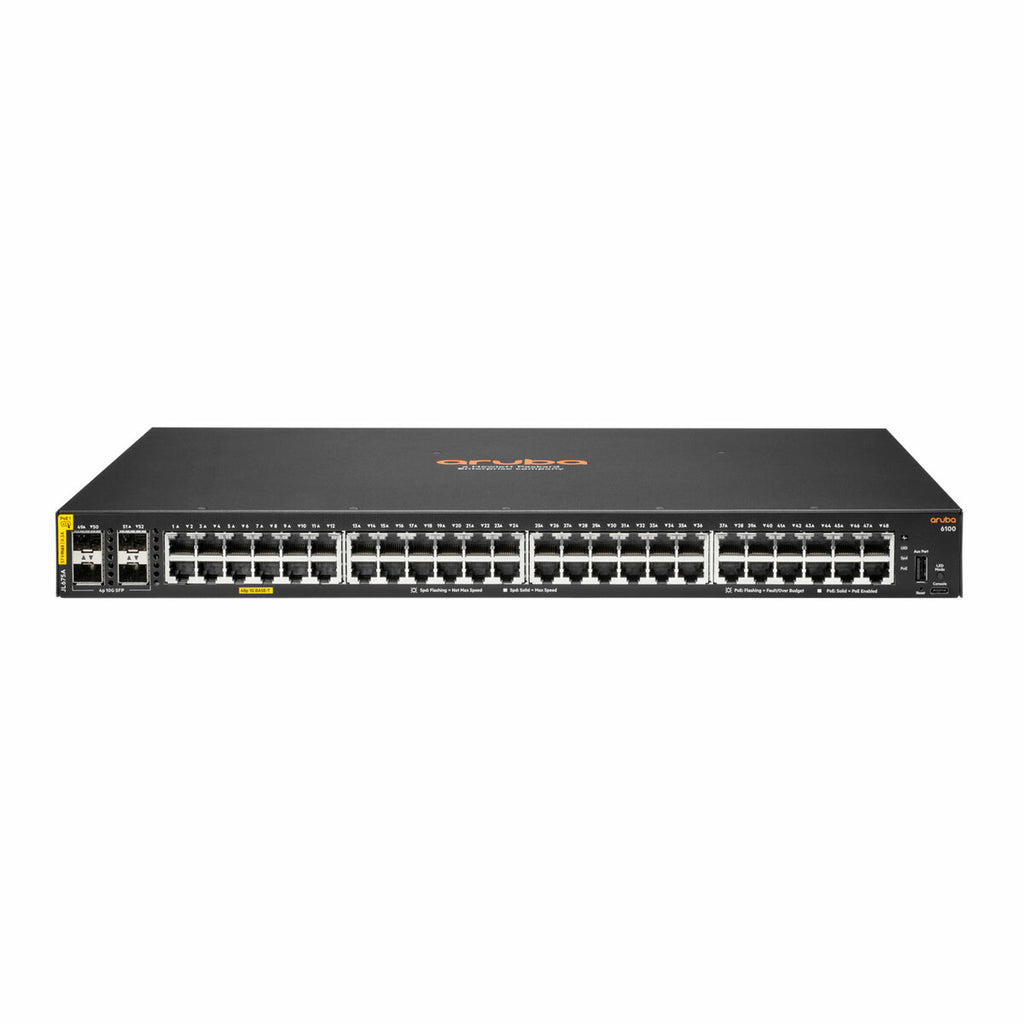

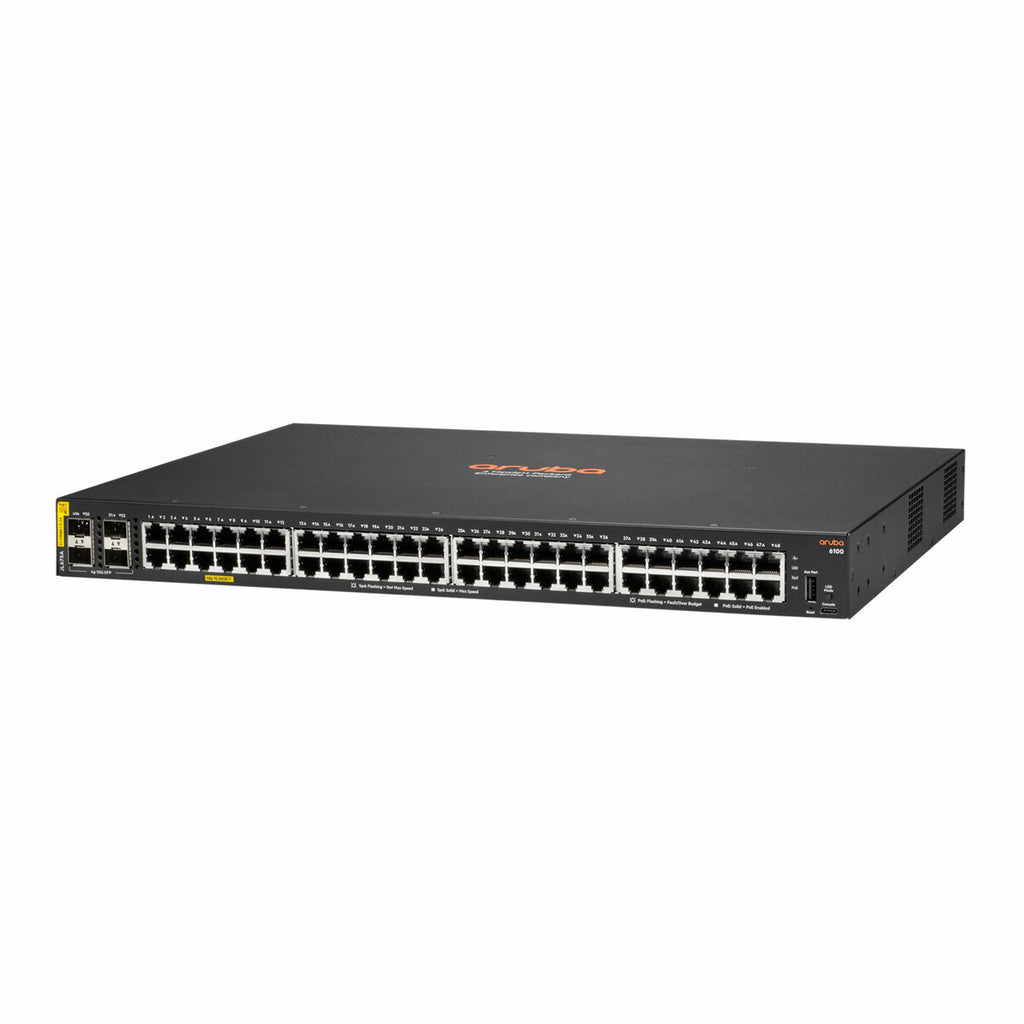

The HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 370W Switch is part of the next-generation Aruba CX 6100 Series, designed for enterprise branch offices and SMB networks needing reliable Layer 2 access. With 48 PoE+ ports delivering up to 370W and 4 SFP+ uplink ports supporting 1/10GbE, this switch provides a secure, high-performance wired access layer for IoT and mobile-first environments. Powered by the Aruba AOS-CX operating system and backed by robust QoS, static routing, and integrated management, this rack-mountable, side-to-side airflow switch simplifies IT operations and scales with your network’s growth.
| Specification | Details |
|---|---|
| Product Number | JL675A#ACJ |
| Product Series | Aruba Networking CX 6100 |
| Form Factor | 1U Rack-mountable |
| Switch Type | Managed Layer 2 Switch |
| Ports | 48x 10/100/1000BASE-T (PoE+) + 4x 1G/10G SFP+ |
| PoE Budget | 370W IEEE 802.3at Class 4 |
| Uplinks | 4x 1/10GbE SFP+ |
| Airflow | Side-to-side |
| Processor | Dual Core ARM Cortex A9 @ 1016 MHz |
| Memory | 4 GB DDR3 RAM, 16 GB eMMC |
| Latency | 1 Gbps: 1.9 μs / 10 Gbps: 1.8 μs |
| Switching Capacity | 176 Gbps |
| Throughput | 98.6 Mpps |
| Input Voltage | 100–127 VAC / 200–240 VAC |
| Power Consumption | Max (no PoE): 45W / Max (with PoE): 480W |
| Dimensions (W x D x H) | 17.4 x 12.0 x 1.73 in (44.2 x 30.5 x 4.4 cm) |
| Weight | 11.07 lbs (5.02 kg) |
| Management Options | Aruba Central, Web GUI, CLI, REST APIs |
| Operating System | Aruba AOS-CX |
| Mounting | Rack-mountable |
