Description

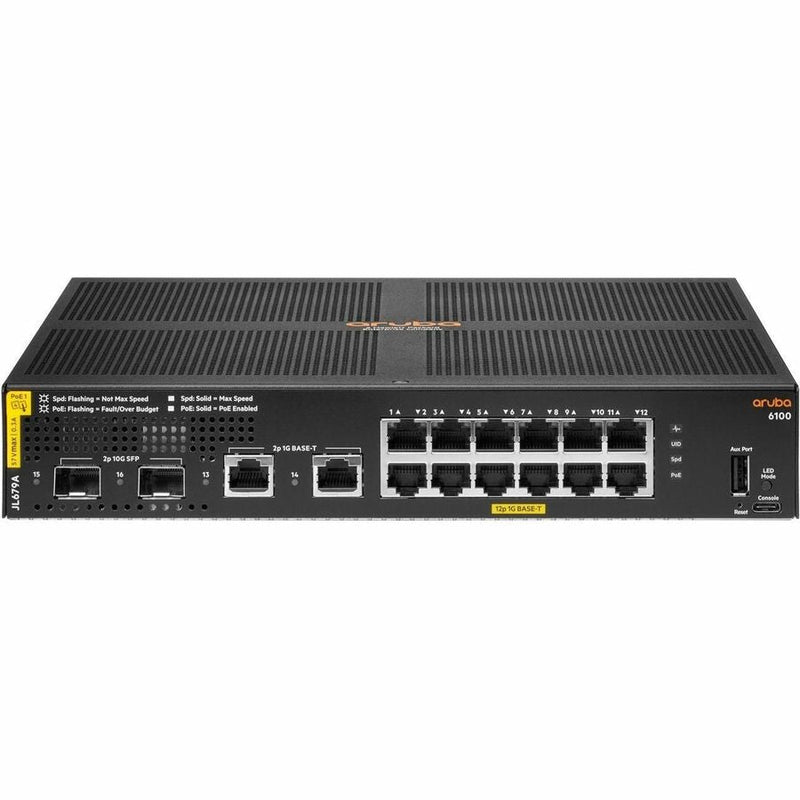

The HPE Aruba Networking CX 6100 12G Class4 PoE 2G/2SFP+ 139W Switch is a fully managed Layer 2 Gigabit access switch, purpose-built for enterprise branch offices and SMB networks. With 12 x 10/100/1000BASE-T PoE+ ports, 2 x SFP+ uplinks, and 2 x 1000Base-T uplinks, this compact and fanless model is ideal for silent deployments in workspace environments.
It delivers high-performance wired connectivity for IoT, mobile, and cloud applications, powered by the AOS-CX operating system and a programmable Aruba ASIC. With 139W of PoE+ power budget, this switch efficiently supports wireless access points, IP cameras, and other PoE-enabled devices. No software license is required for Layer 2 switching, static routing, or network management features.
| Specification | Details |
|---|---|
| SKU / Part Number | JL679A#ACC |
| Ports | 12x 10/100/1000BASE-T PoE+2x 1G/10G SFP+2x 1000Base-T |
| Switching Capacity | 68 Gbps |
| Throughput | 45.1 Mpps |
| Latency | 1 Gbps: 2.3 µs10 Gbps: 2.6 µs |
| PoE Budget | 139W IEEE 802.3at Class 4 PoE+ |
| Power Input | 100–127 VAC / 200–240 VAC |
| Power Consumption | 21.9W (without PoE)170W (with full PoE load) |
| Memory and Processor | Dual Core ARM Cortex A9 @ 1016 MHz4 GB DDR316 GB eMMC |
| Management Options | Web GUI, CLI, Aruba Central, REST APIs |
| Mounting | Rack-mountable |
| Dimensions (WxDxH) | 1.73 x 10.0 x 10.4 in (4.4 x 25.4 x 26.4 cm) |
| Weight | 6.13 lbs (2.78 kg) |
| Cooling | Fanless |
| Layer Support | Layer 2 with static routing and QoS |
| Operating System | Aruba AOS-CX |
