Description

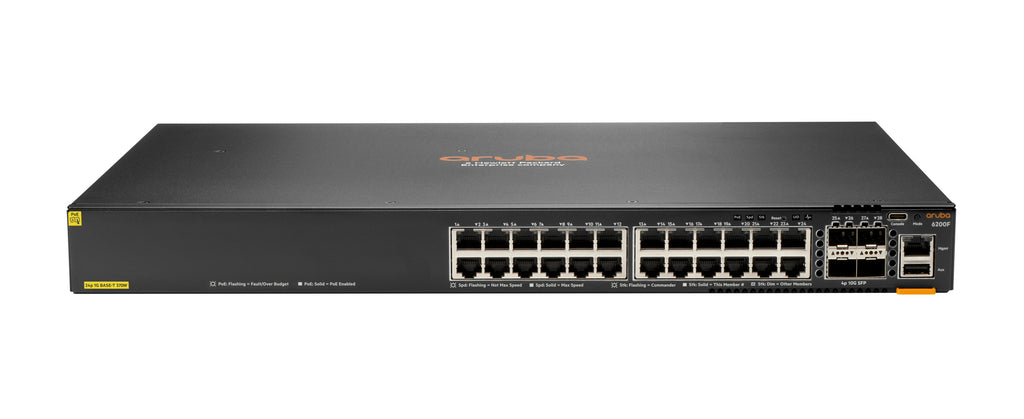

The HPE Aruba Networking CX 6200F 24G 4SFP 370W Switch is a next-generation Layer 3 access switch purpose-built for enterprise edge, branch offices, and SMBs. Featuring 24 Gigabit Class 4 PoE+ ports and 4x 1GbE SFP uplinks, this managed switch supports up to 370W PoE+ budget and delivers high-performance, non-blocking throughput through its powerful Gen7 ASICs.
With support for Virtual Switching Framework (VSF), this model enables stacking of up to 8 switches over long distances for simplified network scaling. Integrated automation, visibility, and programmability via the Aruba Network Analytics Engine, REST APIs, and Python scripts make it ideal for modern, cloud-centric networking.
The CX 6200F offers dynamic segmentation, advanced security, and enterprise-grade resiliency with hot-swappable fans and power supplies. Easily manage the switch through Aruba Central, Multi-Edit Software, CLI, or a web GUI, and accelerate deployments using the Aruba CX Mobile App.
| Specification | Details |
|---|---|
| Model Number | S0M82A#ABA |
| Ports | 24 x 10/100/1000BASE-T (PoE+), 4 x 100M/1G SFP |
| PoE Budget | Up to 370W (IEEE 802.3af/802.3at) |
| Power Supply | Fixed Power Supply (370W PoE) |
| Stacking Support | Up to 8-member VSF stacking, 10 km max stacking distance |
| Layer Support | Layer 3 |
| Management | Managed – CLI, Web GUI, Aruba Central, REST APIs, Multi-Edit |
| Switching Capacity | 128 Gbps |
| Throughput | Up to 95.2 Mpps |
| Latency | 2.28 µs (1 Gbps), 1.46 µs (10 Gbps) |
| Processor | Quad Core ARM Cortex-A72, 1.8 GHz |
| Memory | 8 GB DDR4, 16 GB eMMC Flash |
| Cooling | Front and side to back airflow |
| Mounting | Rack-mountable |
| Console Ports | 1 x USB-C, 1 x RJ-45 |
| Other Ports | 1 x USB Type-A, 1 x OOBM |
| Input Voltage | 100–120V / 200–240V |
| Power Consumption (idle) | 65W @ 230 VAC |
| Features | Dynamic Segmentation, Role-Based Access, VXLAN, NAE, VSF |
| Deployment Tools | Aruba CX Mobile App, Multi-Edit Software |
