Description

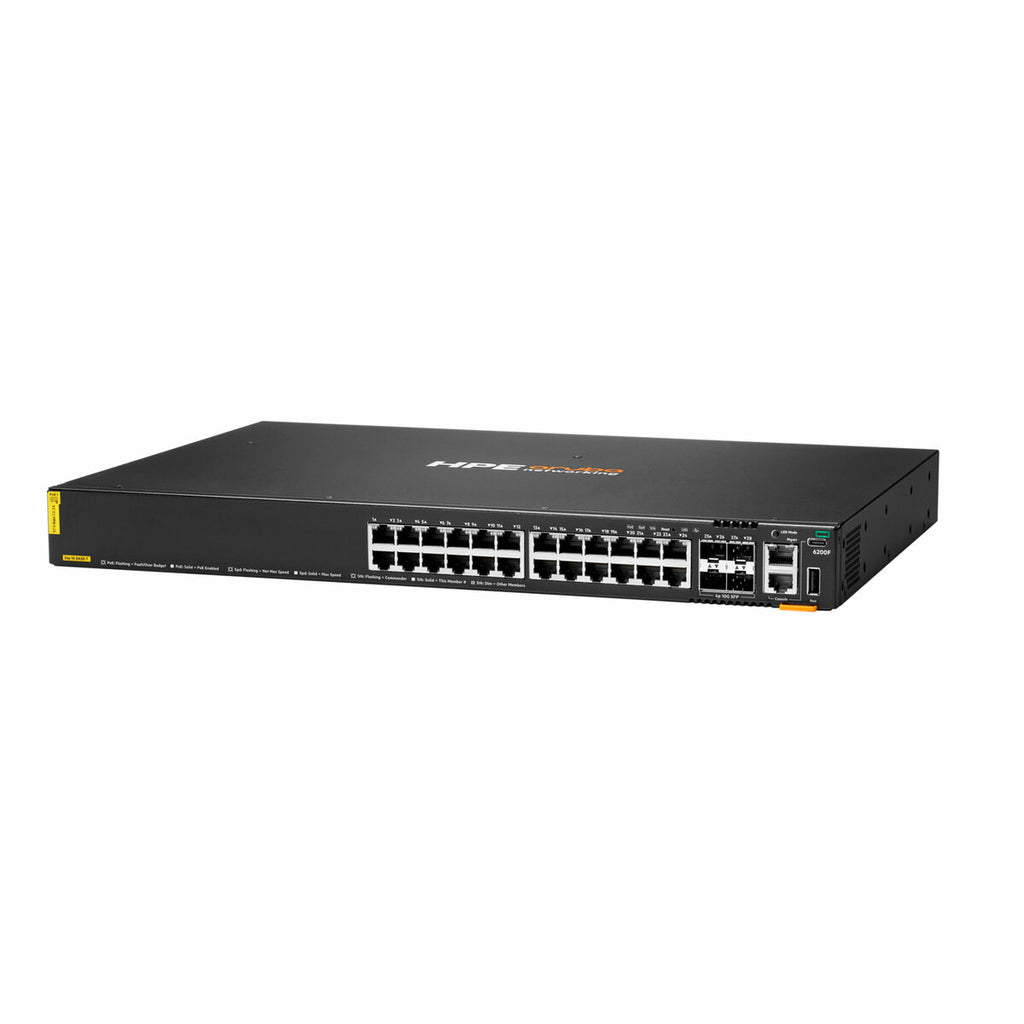

The HPE Aruba Networking CX 6200F 24G Class-4 PoE 4SFP+ 370W Switch is an enterprise-class, fully managed Layer 3 switch designed for branch, campus, and SMB networks. Featuring 24x 10/100/1000BASE-T Class 4 PoE+ ports and 4x SFP+ uplink ports, it delivers powerful performance, intelligent automation, and simplified network management.
With a robust Gen7 ASIC architecture, this switch ensures wire-speed Layer 2/3 switching, low latency, and adaptive power efficiency. Built-in analytics via Aruba’s Network Analytics Engine and dynamic segmentation enhance security and visibility. Stack up to 8 switches via Virtual Switching Framework (VSF) for scalable, resilient network deployment. The 370W PoE budget makes it ideal for powering wireless access points, cameras, and IoT devices.
Manage your network effortlessly through Aruba Central, CLI, or the CX Mobile App. Designed to adapt to the evolving needs of modern enterprise environments, the JL725B#ARE offers a feature-rich and future-ready switching solution.
| Specification | Details |
|---|---|
| Model Number | JL725B#ARE |
| Product Type | Layer 3 Managed Access Switch |
| Ports | 24x 10/100/1000BASE-T PoE+ (up to 30W/port) 4x 1/10G SFP+ uplinks |
| PoE Budget | 370W (Class 4 PoE, IEEE 802.3at) |
| Stacking Support | Up to 8 switches via VSF (Virtual Switching Framework) |
| Max. Stacking Distance | 10 km |
| Latency | 1 Gbps: 2.28 µs 10 Gbps: 1.46 µs |
| Throughput | Up to 95.2 Mpps |
| Switching Capacity | 128 Gbps |
| Processor | Quad Core ARM Cortex-A72 @ 1.8 GHz |
| Memory | 8 GB DDR4 RAM 16 GB eMMC Flash |
| Power Supply | Fixed, up to 370W PoE |
| Power Input | 100–120V / 200–240V |
| Power Consumption | 65W (at 230 VAC) |
| Console Ports | 1x USB-C 1x RJ-45 |
| Management Interfaces | Web GUI, CLI, Aruba Central, REST APIs, Aruba Mobile App |
| Mounting | Rack-mountable |
| Form Factor | 1U |
| Other Interfaces | 1x USB-A Host Port 1x Out-of-Band Management Port (OOBM) |
| Build To Order (BTO) | Yes |
