Description

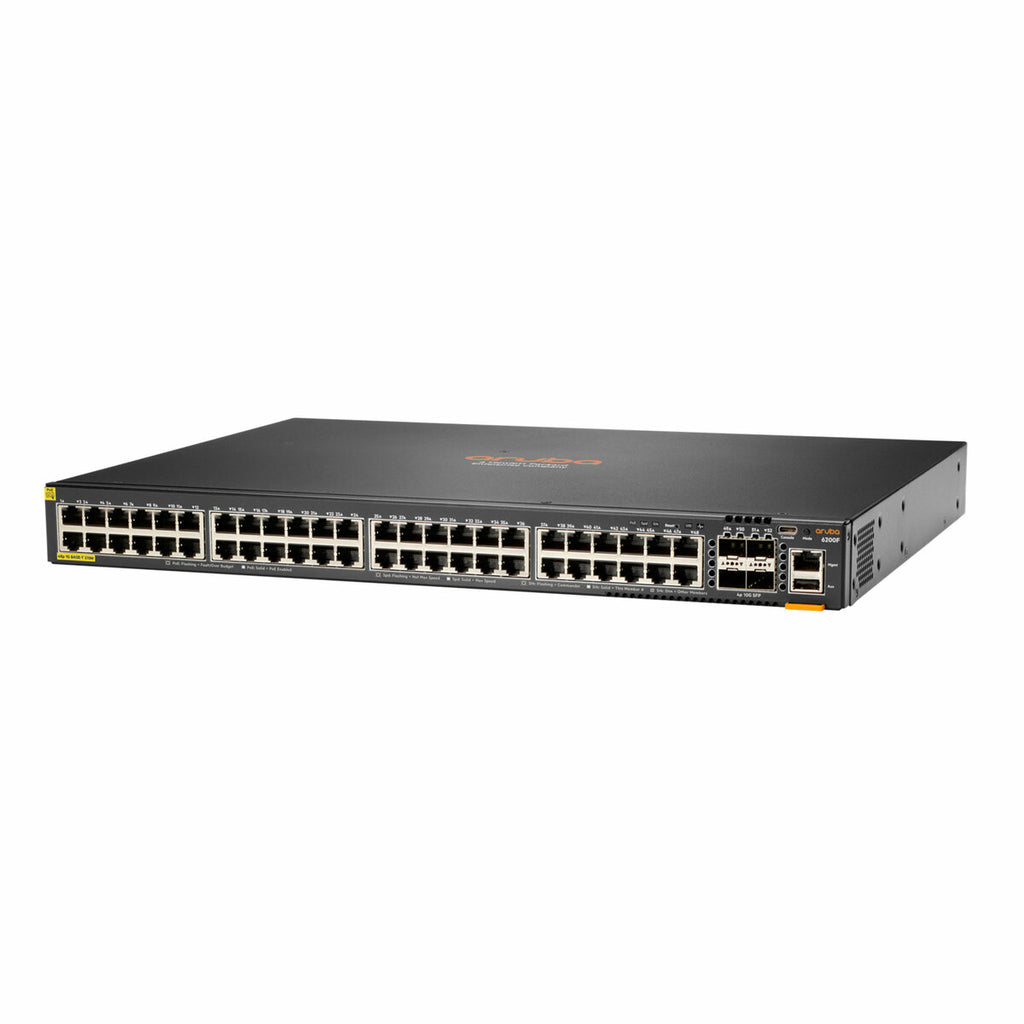

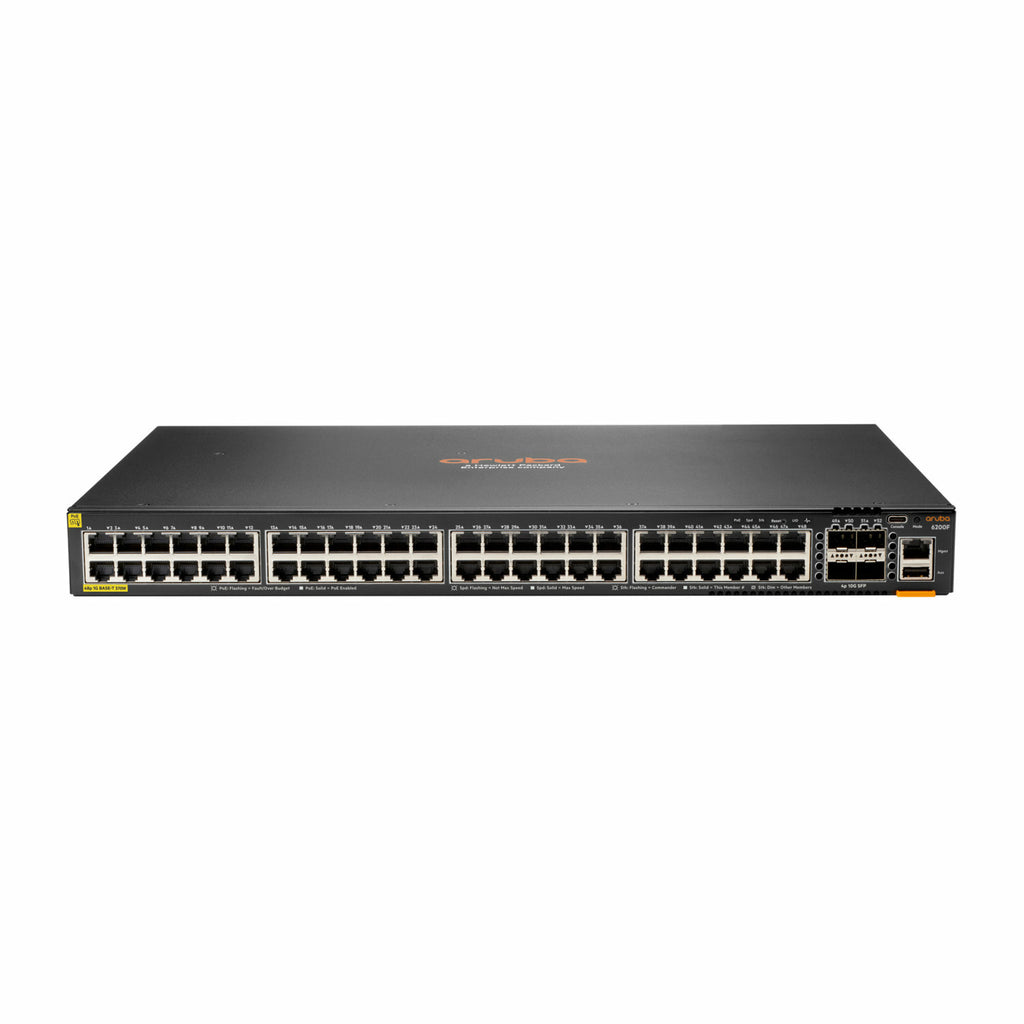

The HPE Aruba Networking CX 6200F 48G Class-4 PoE+ 4SFP+ 370W Switch (JL727B#ABA) is a next-generation stackable Layer 3 managed switch designed for enterprise access, branch, and SMB deployments. This switch delivers robust performance, intelligent automation, and enhanced network visibility powered by HPE Aruba’s AOS-CX and a fully distributed Gen7 ASIC architecture.
With 48 PoE+ (Class 4) Gigabit Ethernet ports and four 1/10GbE SFP+ uplinks, this model supports up to 370W of PoE power, making it ideal for powering IoT devices, IP cameras, and access points. The integrated Virtual Stacking Framework (VSF) allows up to 8 switches to be stacked with a maximum stacking distance of 10 km, simplifying scaling and management.
Built for edge performance, the switch includes a quad-core ARM Cortex-A72 processor, 8 GB of DDR4 memory, and 16 GB of eMMC flash storage. HPE Aruba’s Network Analytics Engine, advanced telemetry, Python/REST API programmability, and multi-edit automation software enable real-time monitoring and seamless configuration for complex environments.
| Category | Specification |
|---|---|
| Model | HPE Aruba Networking CX 6200F 48G 4SFP+ 370W Switch (JL727B#ABA) |
| Switch Type | Layer 3 Managed Stackable Switch |
| Total Ports | 48 x 10/100/1000BASE-T Class 4 PoE+ (up to 30W per port) |
| Uplink Ports | 4 x 1/10GbE SFP+ |
| PoE Power Budget | 370W |
| PoE Standards | IEEE 802.3af, 802.3at |
| Stacking Support | Up to 8 switches, max stacking distance: 10 km |
| Processor | Quad-Core ARM Cortex-A72 1.8 GHz |
| Memory | 8 GB DDR4 RAM |
| Flash Storage | 16 GB eMMC |
| Latency | 1 Gbps: 2.28 µs, 10 Gbps: 1.46 µs |
| Throughput | 130.9 Mpps |
| Switching Capacity | 176 Gbps |
| Console Ports | 1 x USB-C, 1 x RJ-45 |
| OOB Management | 1 x RJ-45 OOBM Port, 1 x USB Type-A Host |
| Power Supply | Fixed 370W Power Supply (AC Input: 100V–240V) |
| Power Consumption | 76W typical @ 230V AC |
| Dimensions (HxWxD) | 1.73 x 17.4 x 12.9 in (4.4 x 44.2 x 32.8 cm) |
| Weight | Max 11.24 lbs (5.1 kg) |
| Mounting | Rack-mountable |
| Cooling | Front and side to back airflow |
| Operating System | Aruba AOS-CX with support for automation, analytics, REST API, Python scripting |
| Warranty | Limited Lifetime Warranty |
