Description
Simplified Access. Enterprise Power. Cloud-Native Agility.

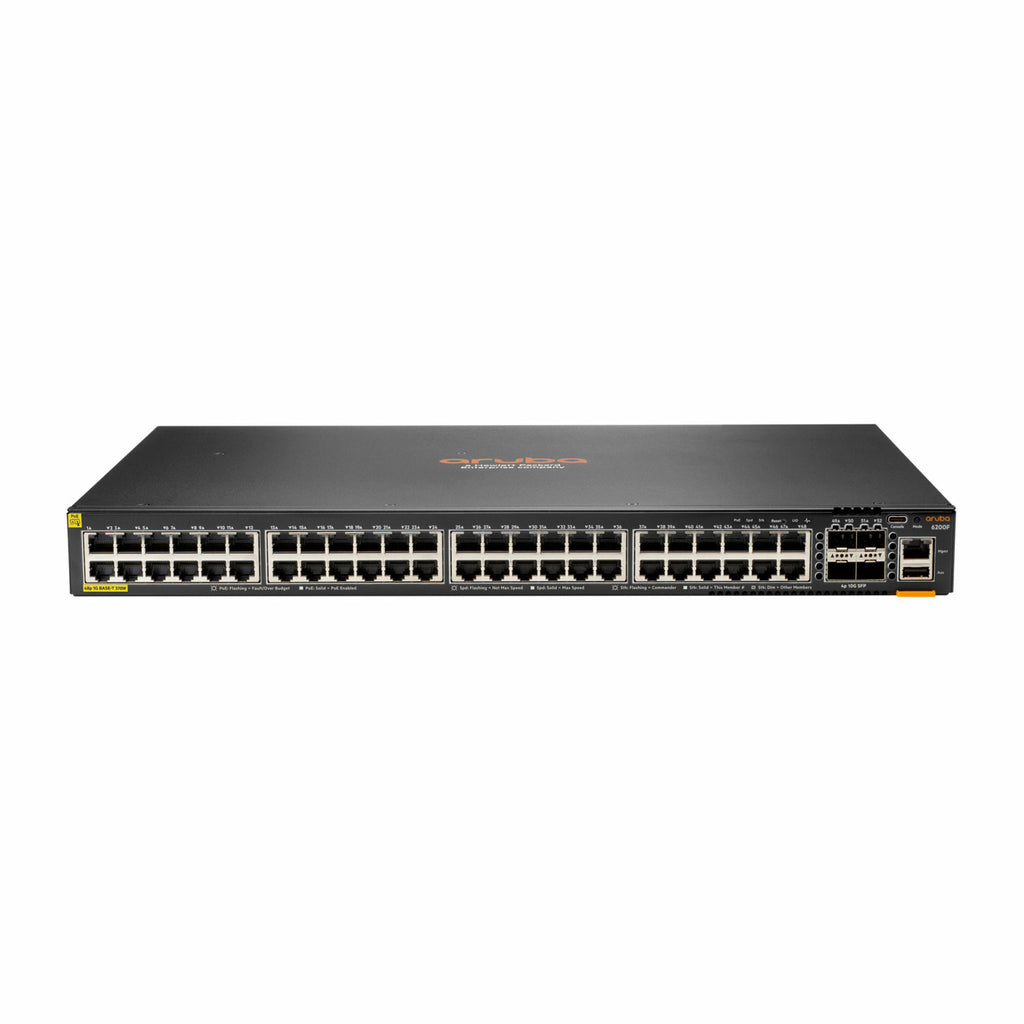

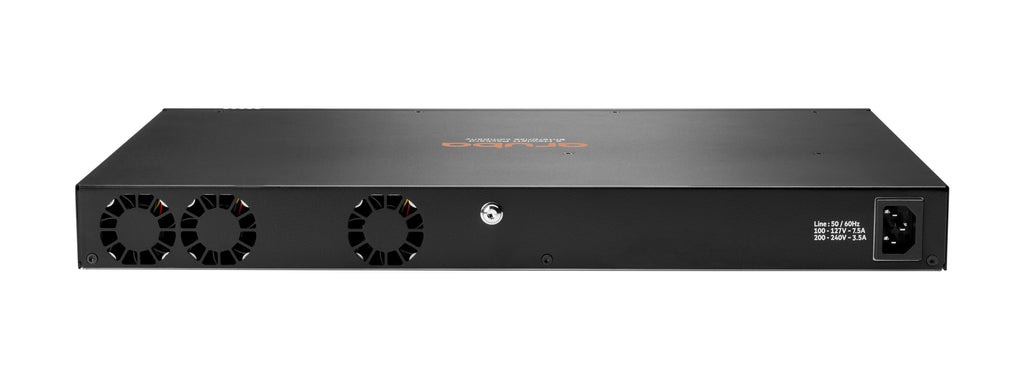

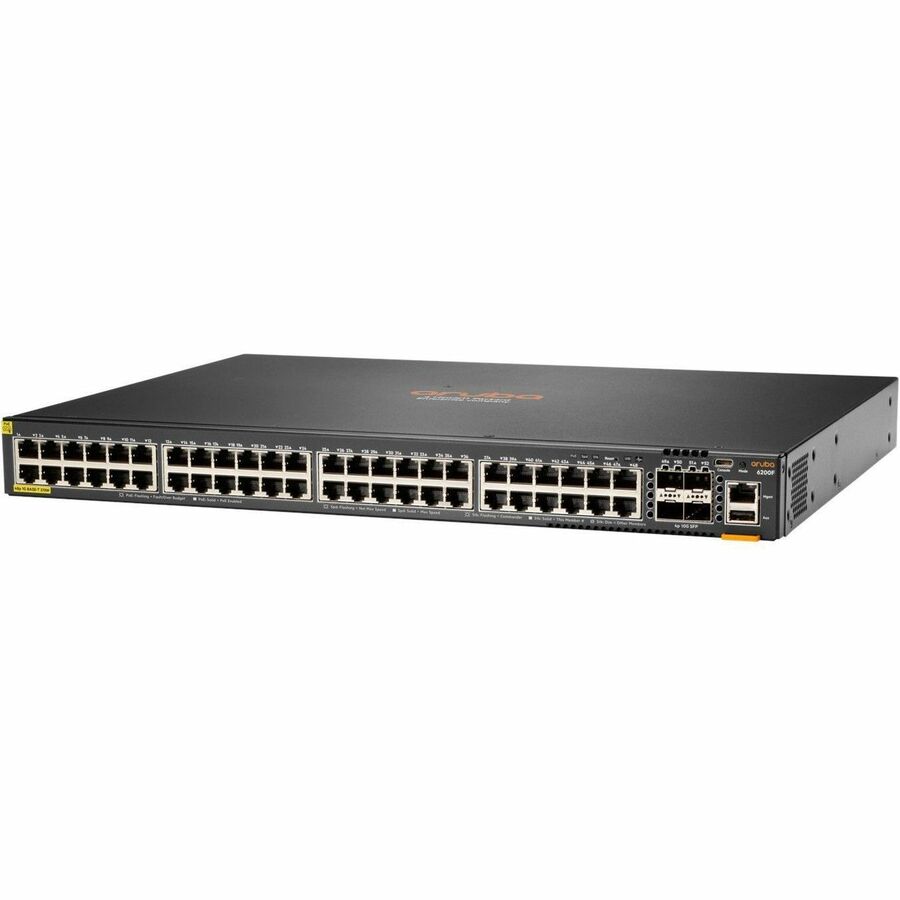

The HPE Aruba Networking CX 6200F 48G Class-4 PoE 4SFP+ 370W Switch is a powerful Layer 3 access switch engineered for branch, campus, and SMB edge environments. With 48 Gigabit PoE-enabled ports and 4 SFP+ uplinks, this rack-mountable switch delivers high performance, cloud-managed automation, and intelligent visibility through Aruba’s AOS-CX software and Network Analytics Engine (NAE). Its Gen7 ASICs provide wire-speed switching, ultra-low latency, and front-plane stacking support for up to 8 units, spanning up to 10 km.
Whether you need scalable connectivity for IP phones, wireless APs, or IoT devices, or simplified centralized management with Aruba Central, the CX 6200F provides future-ready networking in a compact, reliable form factor.
| Specification | Details |
|---|---|
| Model Number | JL727B#ABG |
| Ports | 48x 10/100/1000BASE-T Class 4 PoE (up to 30W/port), 4x 1/10GbE SFP+ |
| Stacking | Up to 8 members, up to 10 km stacking distance |
| PoE Budget | 370W IEEE 802.3af/at |
| Power Supply | Fixed; Up to 370W output |
| Performance | 176 Gbps switching capacity, 130.9 Mpps throughput |
| Latency | 1Gbps: 2.28 μs; 10Gbps: 1.46 μs |
| Processor | Quad Core ARM Cortex-A72 1.8GHz |
| Memory & Storage | 8GB DDR4 RAM; 16GB eMMC |
| Management Interfaces | 1x USB-C Console, 1x RJ-45 Console, 1x USB-A, 1x OOBM |
| Power Input | 100V–120V / 200V–240V AC |
| Power Consumption | 76W (at 230 VAC) |
| Dimensions (H x W x D) | 1.73 x 17.4 x 12.9 in |
| Weight | 11.24 lbs max |
| Mounting | Rack-mountable |
