Description

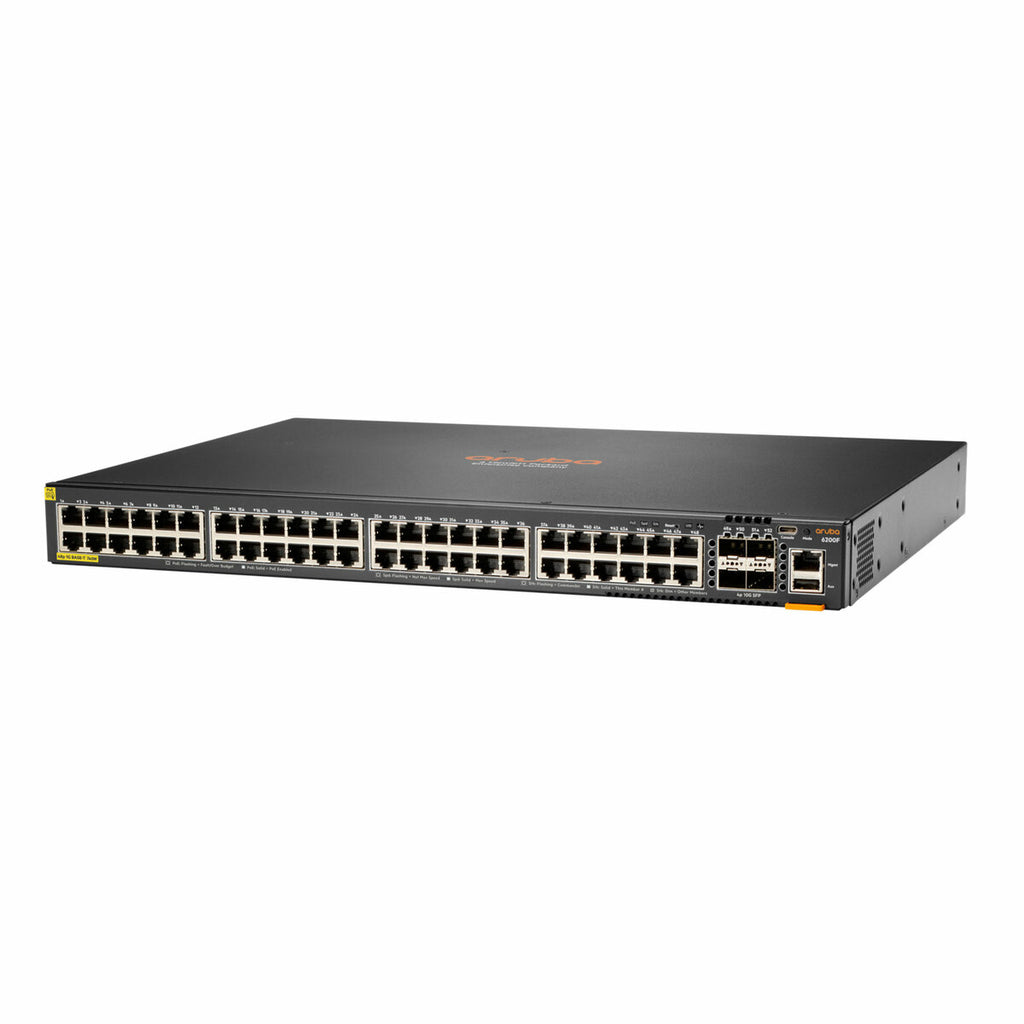

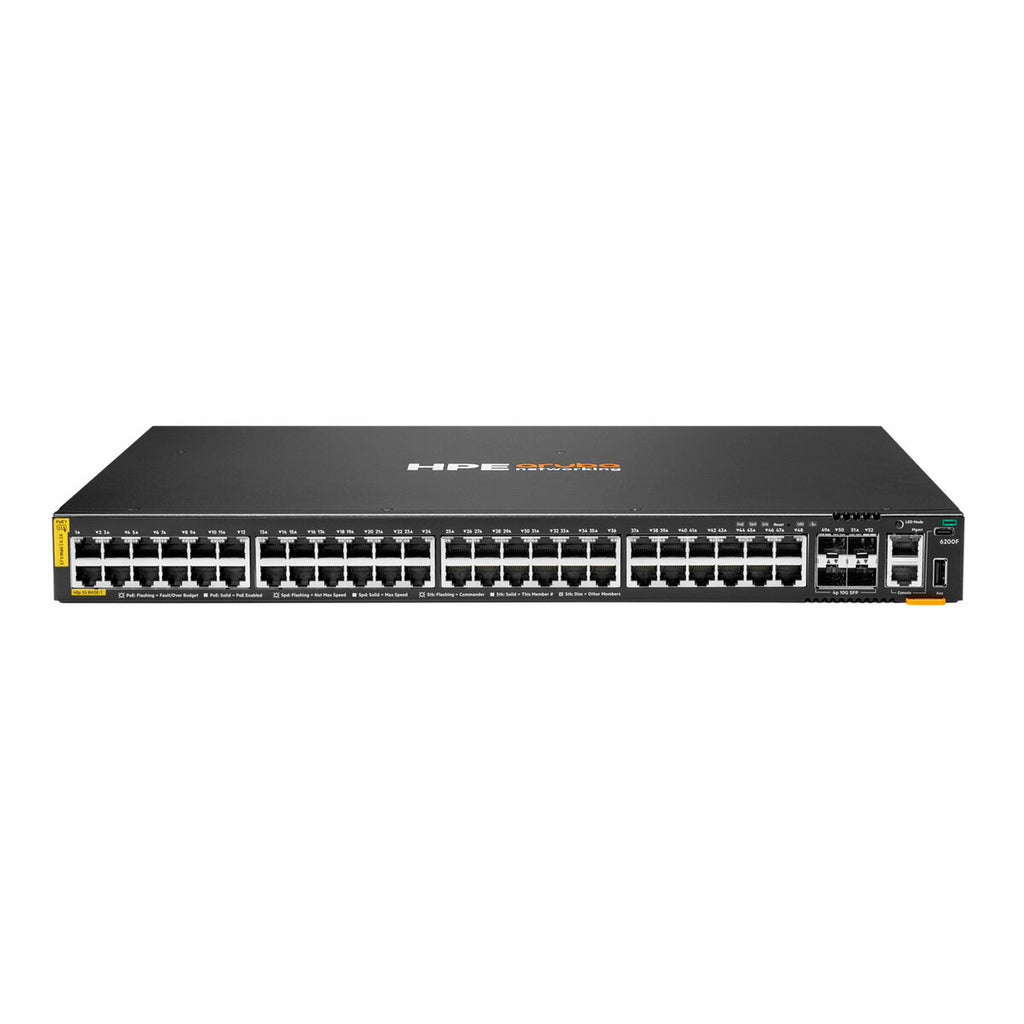

The HPE Aruba Networking CX 6200F 48G Class4 PoE+ 4SFP+ 740W Switch (JL728B#ACJ) is a next-generation stackable Layer 3 switch designed for enterprise branch offices, SMBs, and campus networks. With 48 PoE+ access ports and 4 high-speed 1/10G SFP+ uplinks, this managed switch delivers high performance, operational simplicity, and advanced security features in a compact, rack-mountable design.
Built on Aruba’s Gen7 ASIC architecture, it enables wire-speed performance, deep packet buffering, and intelligent power consumption. With support for Aruba Virtual Stacking Framework (VSF), up to 8 switches can be stacked for scalable network expansion. The integrated Network Analytics Engine (NAE), REST APIs, and Python scripting empower IT with full automation and real-time visibility.
Ideal for powering IoT devices, wireless APs, and video endpoints with its 740W PoE+ budget, the CX 6200F offers robust QoS, advanced routing, Dynamic Segmentation, and cloud-ready management through Aruba Central.
| Specification | Details |
|---|---|
| Model | JL728B#ACJ |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.9 Mpps |
| Ports | 48x 10/100/1000BASE-T (PoE+) + 4x SFP+ 1/10GbE uplinks |
| PoE Budget | 740W (IEEE 802.3at Class 4), up to 30W per port |
| Stacking | Supports VSF stacking up to 8 members |
| Latency | 1G: 2.28 µs, 10G: 1.46 µs |
| Processor | Quad-Core ARM Cortex A72 @ 1.8GHz |
| Memory | 8 GB DDR4, 16 GB eMMC |
| Console Ports | 1x USB-C, 1x RJ-45 |
| USB Ports | 1x USB-A Host |
| OOB Management | 1x RJ-45 OOBM |
| Power Supply | Fixed (supports up to 740W PoE) |
| Power Input | 100V-120V / 200V-240V AC |
| Power Consumption | 76W (at 230VAC, no PoE load) |
| Mounting | Rack-mountable |
| Cooling | Front and side-to-back airflow |
| Software Features | Layer 3 routing, VSF, ACLs, QoS, NAE, REST API, Dynamic Segmentation |
| Management Options | Aruba Central, CLI, Web GUI, CX Mobile App, Switch Multi-Edit Software |
| Stacking Distance | Max 10 km (with long-range transceivers) |
