Description

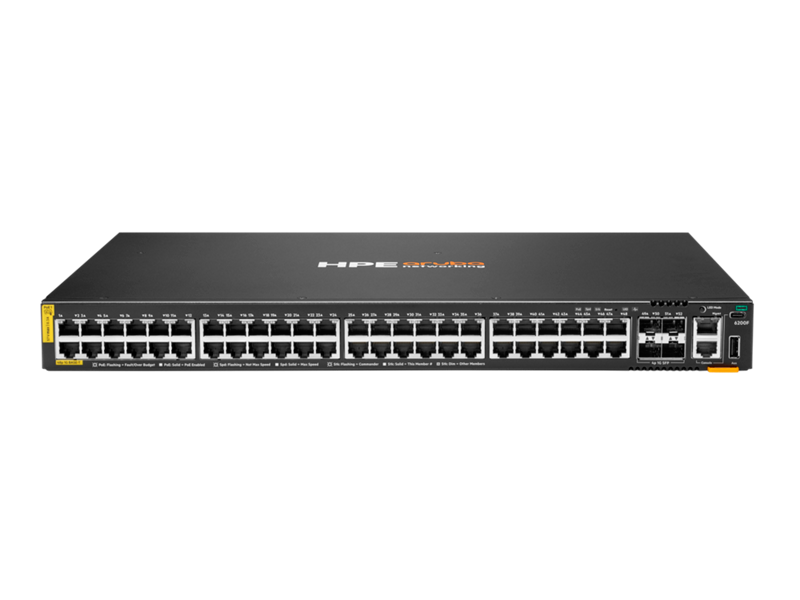

The HPE Aruba Networking CX 6200F 48G Class‑4 PoE 4SFP 740W Switch (S0M85A) is a next-generation, stackable Layer 3 access switch engineered for enterprise branch offices, campus networks, and SMBs. Designed with a cloud-centric architecture, it integrates a fully programmable OS and HPE Aruba’s powerful Network Analytics Engine to enable intelligent monitoring, streamlined deployment, and fast troubleshooting.
With 48 Class 4 PoE ports (up to 30W per port) and four 1G SFP uplinks, it delivers 740W of PoE power—perfect for powering access points, IP cameras, and IoT devices. Built on a high-performance Gen7 ASIC architecture, it offers low-latency, wire-speed switching, and scalability via VSF stacking of up to 8 switches. Simplified configuration is supported via Aruba Central, Multi-Edit Software, or an intuitive web GUI.
Whether you're modernizing an edge network or building new deployments, the CX 6200F ensures reliability, automation, and high availability.
| Specification | Details |
|---|---|
| Product Number | S0M85A |
| Ports | 48x 10/100/1000BASE-T Class 4 PoE (up to 30W/port) |
| 4x 100M/1G SFP uplink ports | |
| PoE Standards | IEEE 802.3af, 802.3at (PoE+) |
| PoE Budget | Up to 740W Class 4 PoE |
| Console & Management Ports | 1x USB-C Console, 1x RJ-45 Console, 1x USB Type-A Host, 1x OOBM |
| CPU | Quad-Core ARM Cortex-A72 1.8 GHz |
| Memory | 8 GB DDR4, 16 GB eMMC |
| Latency | 1 Gbps: 2.28 μs, 10 Gbps: 1.46 μs |
| Throughput | Up to 130.9 Mpps |
| Switching Capacity | 176 Gbps |
| Stacking Support | Virtual Stacking Framework (VSF), up to 8 switches |
| Power Supply | Fixed internal power supply |
| Power Consumption | 76W (at 230V AC) |
| Input Voltage | 100V-120V / 200V-240V |
| Form Factor | 1U rack mountable |
| Dimensions (H x W x D) | 4.39 x 44.2 x 32.7 cm |
| Weight | 5.10 kg (max) |
| Software Features | Static and Access OSPF Routing, VSF, Dynamic Segmentation, REST API |
| Management Options | Aruba Central, Multi-Edit Software, Web GUI, CLI, CX Mobile App |
