Description
Powerful, Scalable, and Secure Switching for the Modern Enterprise

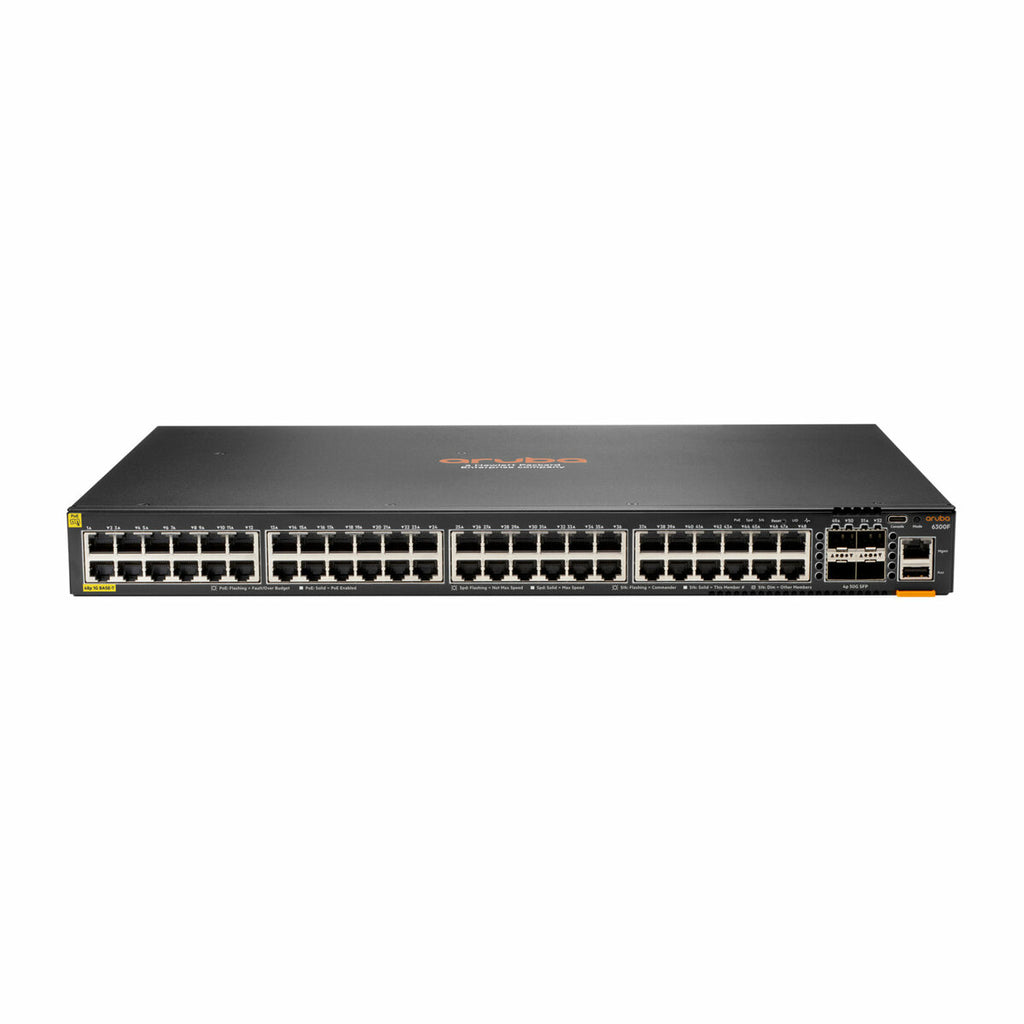

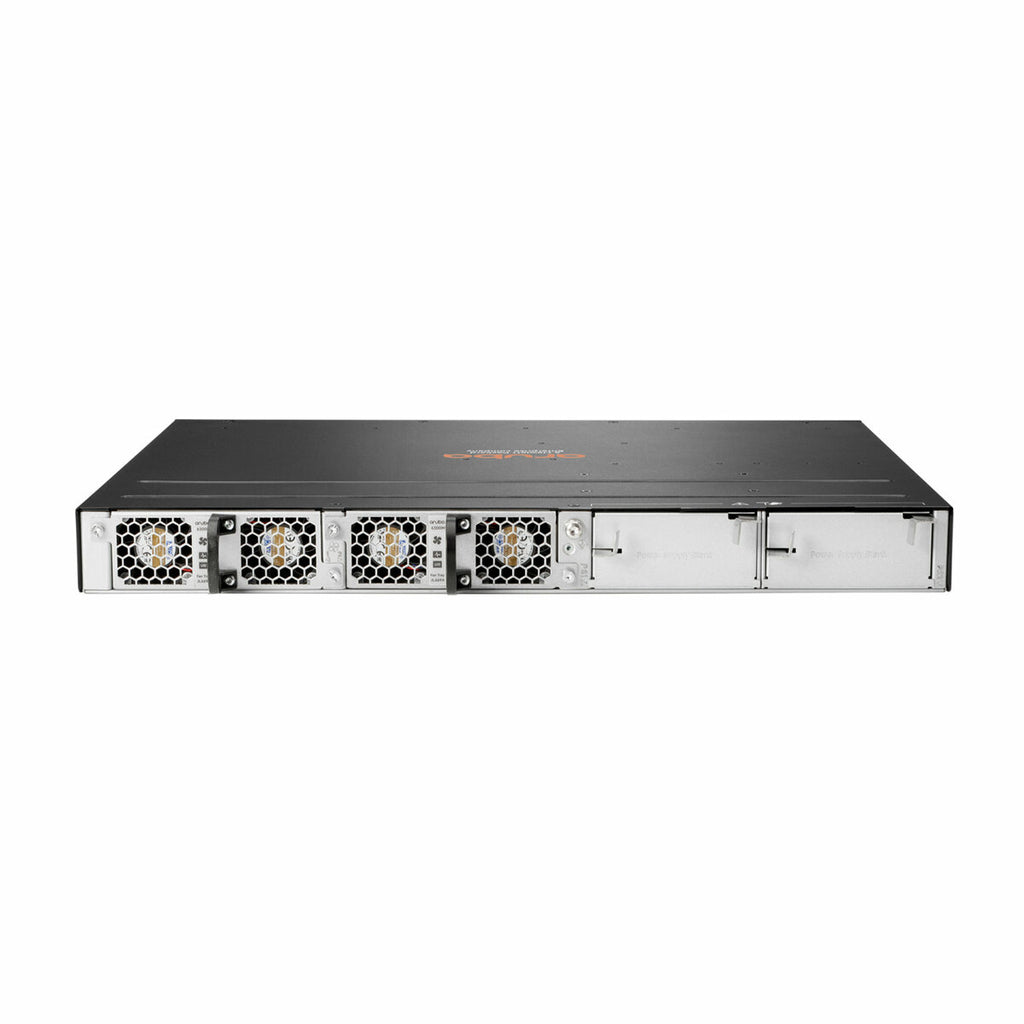

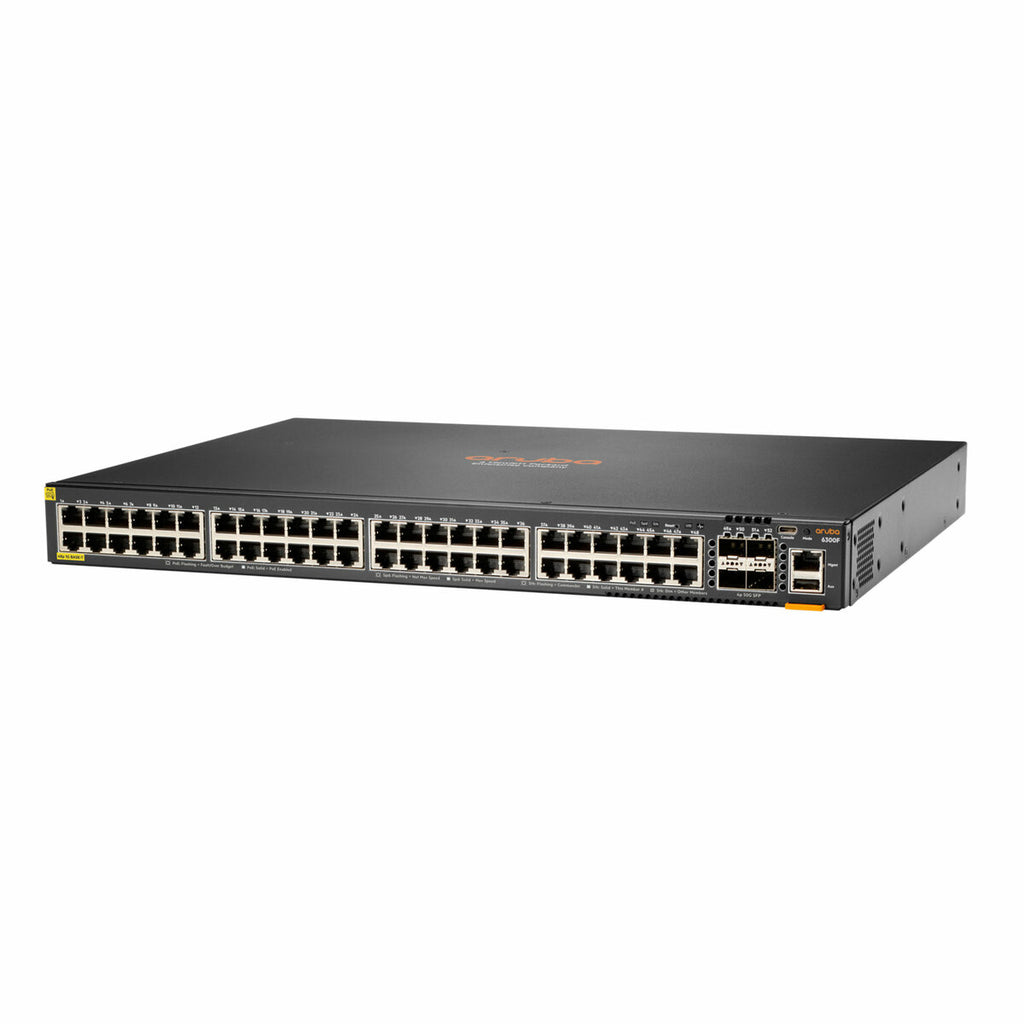

The HPE Aruba Networking CX 6300F (JL665A#AKM) is a high-performance, stackable Layer 3 switch with 48 Class 4 PoE+ ports and 4 SFP56 uplinks. Designed for enterprise edge, campus aggregation, and data center top-of-rack (ToR) deployments, this switch delivers non-blocking performance, advanced analytics, and unified management through HPE Aruba Central.
With support for VSF stacking up to 10 switches, built-in cloud-native automation, and PoE+ up to 30W per port, the CX 6300F empowers organizations to deploy modern wired infrastructures with robust security, real-time insights, and seamless scalability. Built on HPE's Gen7 ASIC architecture, it ensures low latency, adaptive power, and unmatched reliability for high-density access and intelligent edge deployments.
| Specification | Details |
|---|---|
| Model Number | JL665A#AKM |
| Switch Type | Layer 3, Managed |
| Ports | 48 × 10/100/1000Base-T PoE+ ports4 × SFP56 (1G/10G/25G/50G) uplinks |
| PoE Standards | IEEE 802.3af (PoE), 802.3at (PoE+) |
| Max PoE Budget | 740W |
| Airflow | Front-to-back |
| Form Factor | Rack-mountable |
| Stacking | Up to 10 switches with VSF (Virtual Switching Framework) |
| Switching Capacity | 496 Gbps |
| Throughput | 369 Mpps |
| Latency | 1Gbps: 2.28µs10Gbps: 1.46µs25Gbps: 1.90µs50Gbps: 3.49µs |
| Memory / Processor | Quad-core ARM Cortex A72 @1.8GHz8GB DDR4, 32GB eMMC |
| Console Ports | 1 × USB-C Console, 1 × OOBM, 1 × USB-A Host |
| Power Supply | Fixed PSU: 100V–120V / 200V–240V |
| Power Consumption | Idle: 63WMax: 86W |
| Management Options | Aruba Central, AirWave, Switch Multi-Edit Software, CLI, SNMP, RMON |
| Compliancy | TAA Compliant |
