Description

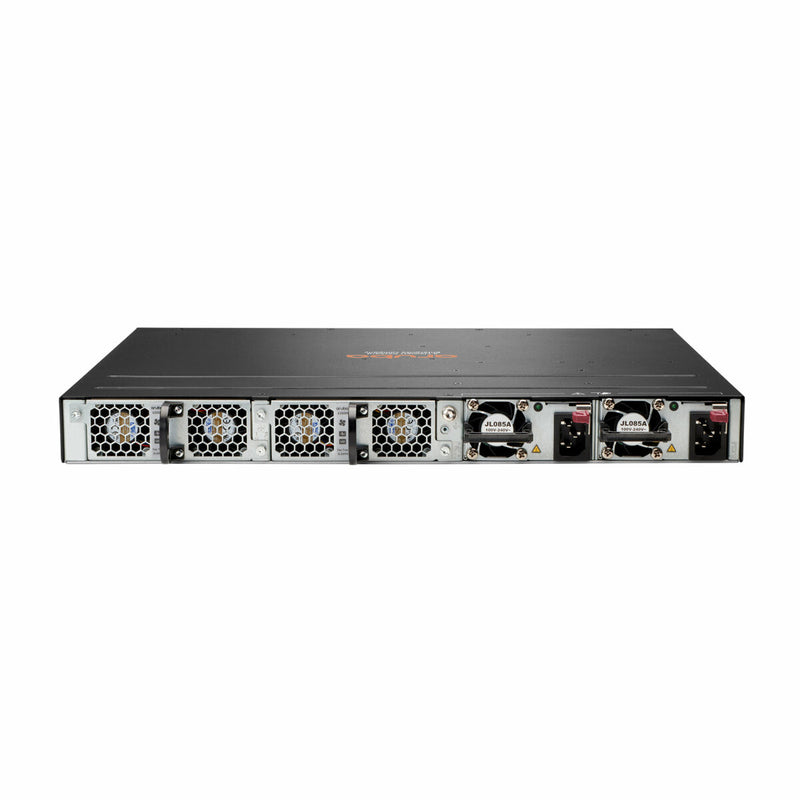

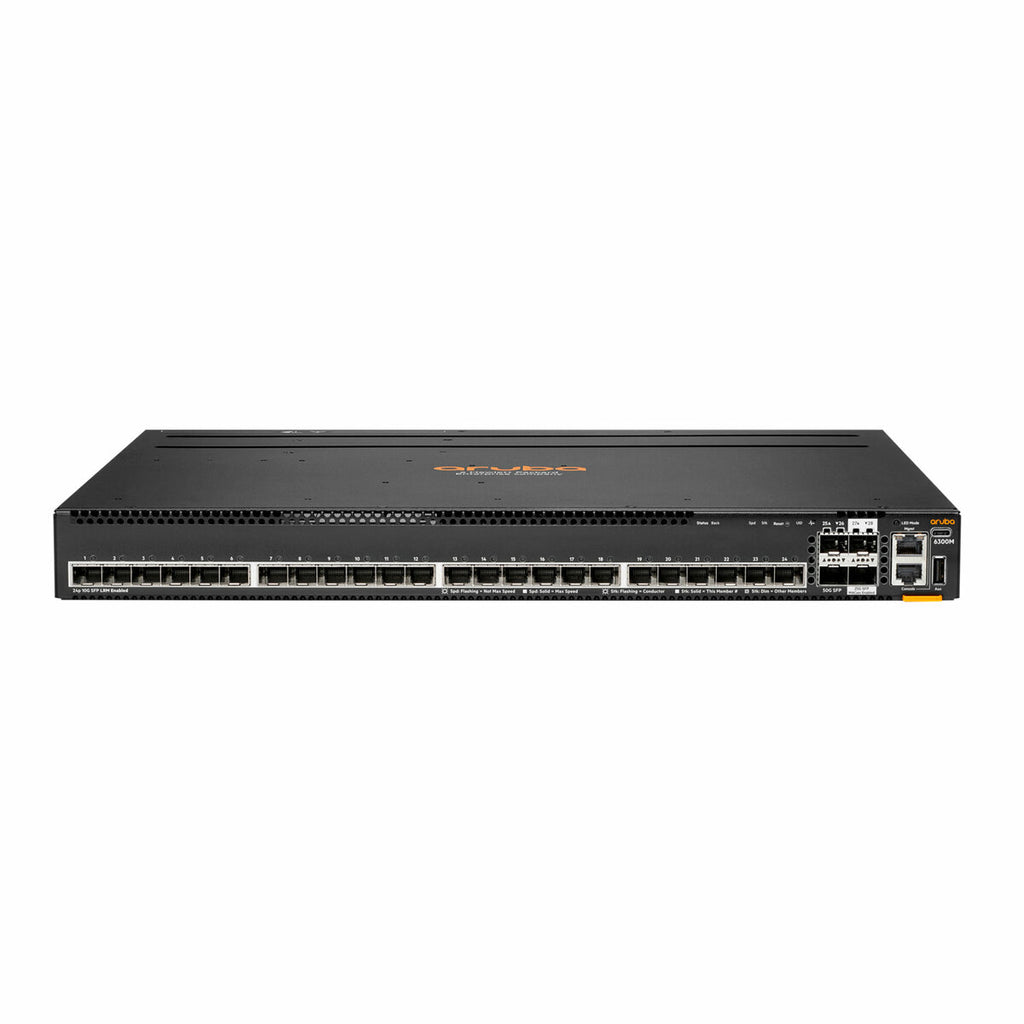

The HPE Aruba Networking CX 6300M Switch (R8S92A) is a high-performance, stackable Layer 3 managed switch designed for enterprise access, aggregation, and top-of-rack (ToR) deployments. Featuring 24 SFP+ ports with LRM and MACsec support, 2 high-speed 50G SFP ports, and 2 25G SFP MACsec uplinks, this switch delivers advanced security, visibility, and flexibility.
Powered by Aruba’s Gen7 ASICs and cloud-native AOS-CX operating system, it offers AI-powered analytics, automation, and centralized management via Aruba Central. Ideal for growing campus and data center environments, it supports HPE Smart Rate PoE, VXLAN/VRF, PTP, AVB, and advanced segmentation with dynamic user roles and security policies.
With support for Virtual Switching Framework (VSF) and a modular power supply design, the CX 6300M ensures scalable stacking, redundancy, and operational efficiency.
| Category | Details |
|---|---|
| SKU | R8S92A |
| Switch Type | Managed, Layer 3, Stackable |
| Ports | 24x 1G/10G SFP+ (LRM & MACsec) 2x 10G/25G/50G SFP 2x 10G/25G SFP (MACsec) |
| Console/USB Ports | 1x USB-C Console, 1x RJ Console, 1x OOBM, 1x USB Type A Host |
| Processor | Quad Core Arm Cortex™ A72 @ 1.8GHz |
| Memory | 8 GB DDR4, 32 GB eMMC, 16 MB Shared Packet Buffer |
| Latency | 1G: 4.24μs, 10G: 1.50μs, 25G: 2.91μs, 50G: 3.49μs |
| Throughput | 580 Mpps |
| Switching Capacity | 780 Gbps |
| Routing Capacity | 880 Gbps |
| Stacking Support | Up to 10 switches (VSF) |
| Management | Aruba Central, Aruba AirWave, Multi-Edit, CLI, SNMP v2c/v3, RMON |
| Power Supply | Dual hot-swappable PSU slots (Min 1 required; supports JL085A, JL757A) |
| Input Voltage | JL085A: 100V–240V AC |
| Power Consumption | Idle: 87W Full load: 131W |
| Dimensions (W x D x H) | 1.73 x 17.4 x 15.2 in |
| Weight | 14.8 lbs |
| Mounting | Front and side to back airflow; Rack-mountable |
